| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7454 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Type: | Air Spring | Material: | Rubber, Steel |
|---|---|---|---|
| Brand: | GUOMAT/Customized | Package: | Cartons |
| Warranty: | 12 Months | Other Name: | Air Lift Suspension |
| Goodyear: | 2B12-345 | Color: | Black |
| High Light: | FD 331-26 514 Industrial Air Spring,2B12-345 Industrial Air Spring |
||
FD 331-26 514 Contitech Industrial Air Spring Supplier 2B12-345 Goodyear Air Shock Part
Product Description
The FD 331-26 514 air spring is part of ContiTech’s air spring program, which offers a wide range of air springs for a variety of applications in commercial vehicles, buses and other pneumatic systems. GUOMAT 2B7454 air spring refers to FD 331-26 514, its parameters are accurate and its quality is high.
Reference to Firestone
W01-358-7545
W01 358 7545
W013587545
WO1-358-7545
WO1 358 7545
WO13587545
Reference to Contitech
FD 331-26 514
FD331-26 514
FD 331-26514
Reference to Goodyear
2B12-345
2B 12-345
2B12 345
2B12345
578923315
578 92 3 315
578-92-3-315
Reference to Triangle
6375/4514
Hendrickson Aux.001796
(Paralift Ultra/High Lift)-Lift bag
Watson&Chalin: AS-0078-1F
Watson&Chalin: AS-0109
GUOMAT 2B7454 Air Spring Technical Data
|
Working temperature |
-40°C bis +70°C |
|
Failure testing |
≥3 millions |
|
Top Cover Plate Diameter |
224.5mm |
|
Bottom Cover Plate Diameter |
224.5mm |
|
Bolt/Stud |
1/2-13UNC |
|
Combo Stud |
1/4NPTF,3/4-16UNF |
|
Rubber Bellows MAX Diameter |
343mm |
|
The Working Stroke |
MAX 363 mm to MIN 104 mm |
|
Bottom Cover Plate Screw (Nut) Tooth |
2X3/8-16UNC |
|
Screw Center Distance of Top Cover Plate |
157mm |
|
Screw Center Distance of Bottom Cover Plate |
157mm |
It is Use in a Wide Variety of Actuation and Vibration Isolation
With time-tested designs incorporating fabric-reinforced or natural rubber flex-member construction and corrosion-protected and retainers, Air Springs provide superior quality and performance.
As an actuator, Air Springs can provide either linear or angular motion.
These air springs offer a favorable stroke-to-compressed-height ratio when compared to air cylinders, and can accept a wide variety of actuation media such as air, water, nitrogen or anti-freeze.
What about Our Package & Shipping Terms?
Package: According to customer requirement
Shipping: Shenzhen Port,Huangpu Port
Payment Term: L/C ,T/T,Western Union
Delivery Time: Within 3-7 Working Days
Application

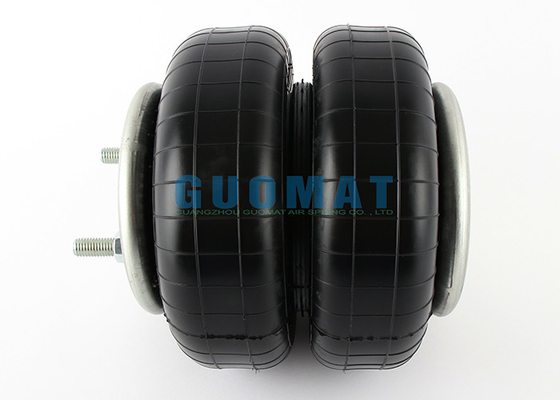

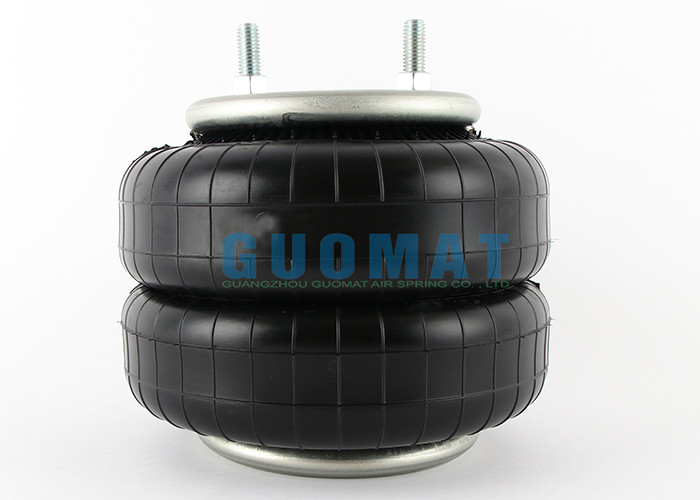

The Real Pictures of GUOMAT Industrial Air Spring
