| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B8X4 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD49.9-59.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Air Spring: | Convoluted Type Air Spring | N.W.: | 2.4 Kg |
|---|---|---|---|
| Pressure Ability: | 0.2-0.8 M PA | Plates: | Crimped |
| Transport Package: | Cartons | Trademark: | Neutral |
| Warranty: | One Year | Material: | Rubber And Iron |
| High Light: | 1B8X4 Air Spring,1B8-550 Industrial Air Spring |
||
Product Description

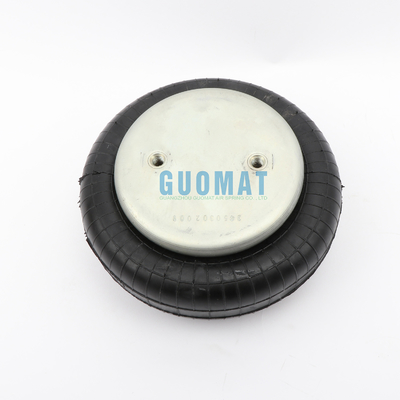

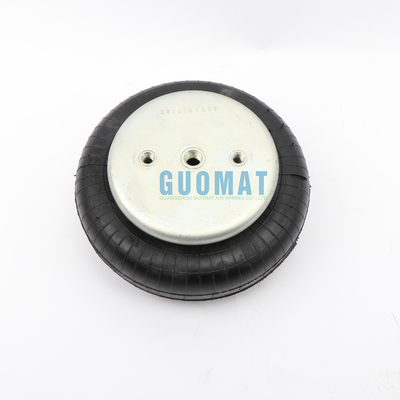

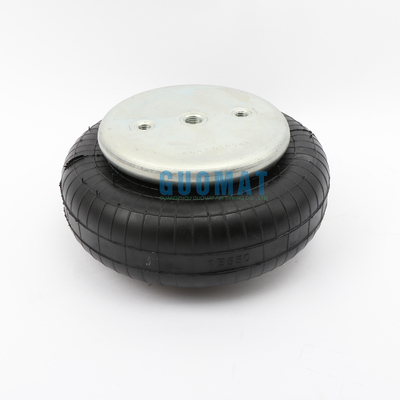

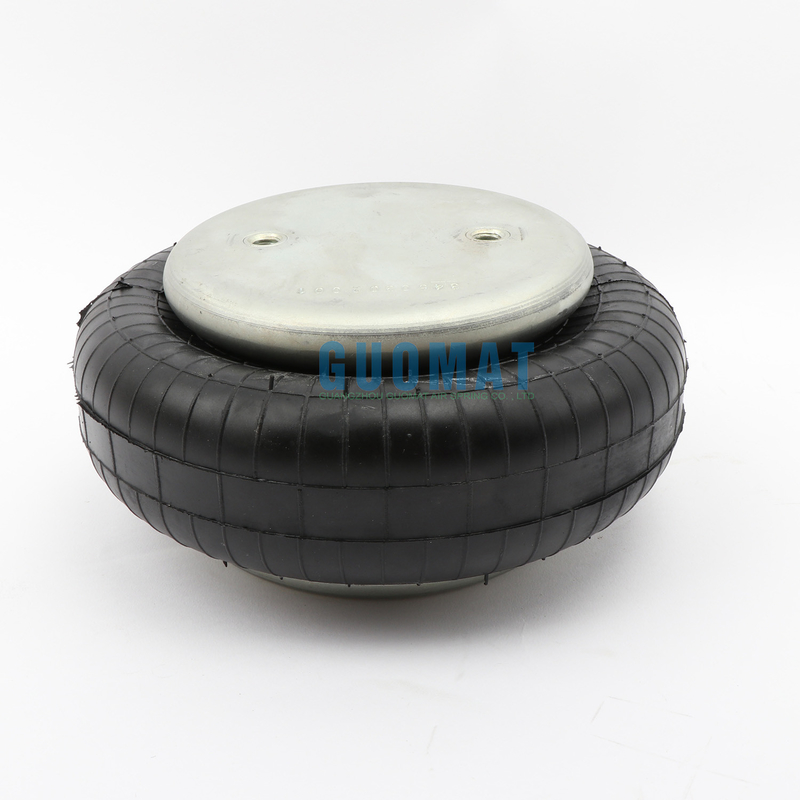

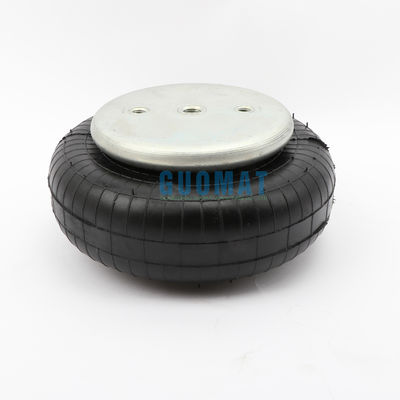

GUOMAT:1B8X4
OEM Original Equipment Manufacturer: Contitech FS 120-10 CI
OEM Original Equipment Manufacturer: Contitech FS 120-10
OEM Original Equipment Manufacturer: Contitech FS120-10
OEM Original Equipment Manufacturer: Firestone W01-358-7564
OEM Original Equipment Manufacturer: Firestone W01 358 7564
OEM Original Equipment Manufacturer: Firestone W013587564
OEM Original Equipment Manufacturer: Goodyear 1B8-550
OEM Original Equipment Manufacturer: Goodyear 1B 8-550
Technical Data
Description
Assembly Order No.
Style 116 Two Ply Bellows
Blind nuts, 1/4 NPT:W01-358-7564;W01 358 7564;W013587564
Blind nuts, 3/4 NPT:W01-358-7561;W01 358 7561;W013587561
Countersunk steel bead rings,19/4 bolts, nuts, washers:W01-358-7568;W01 358 7568;W013587568
Blind nuts with installed 1/4 tank valve W01-A72-7518;W01 A72 7518;W01A727518
Rubber bellows only:W01-358-0133;W01 358 0133;W013580133
Style 117 High Bellows
Blind nuts, 1/4 NPT:W01-358-7600;W01 358 7600;W013587600
Blind nuts, 3/4 NPT:W01-358-7602;W01 358 7602;W013587602
Countersunk steel bead rings,Strength 13/4 bolts, nuts, washers:W01-358-7606;W01 358 7606;W013587606
PNEUMATIC APPLICATION - STATIC CHARACTERISTIC VALUES
| Force F [lbf] | |||||
| Pressure p [psi] | 40 | 60 | 80 | 100 | Vol. V [in.³] |
| H 4.50 in./114.3MM | 728 | 1130 | 1570 | 1970 | 110 |
| H 4.00 in./101.6MM | 905 | 1400 | 1940 | 2390 | 100 |
| H 3.50 in./88.9MM | 1050 | 1610 | 2240 | 2740 | 90 |
| H 3.00 in./76.2MM | 1170 | 1770 | 2450 | 3020 | 75 |
| H 2.50 in./63.5MM | 1270 | 1900 | 2630 | 3260 | 57 |
VIBRATION ISOLATION - DYNAMIC CHARACTERISTICS
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| Force (load) F [lbf] | 801 | 1,240 | 1,700 | 2,130 | 2,530 | 110 | |
| Spring rate c [lbf/in] | 709 | 949 | 1,190 | 1,430 | 1,670 | 110 | |
| Natural Frequency f0 [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 110 | |
| Design height H: recommended 4.33 inch, minimum 3.54 inch | |||||||
The History of Air Springs
Air springs were born in the mid-19th century and were used in the early days to dampen vibrations in mechanical equipment. Because air springs have many advantages, they are increasingly used in trains, automobiles, paper machines, lifting platforms, presses, vibrating conveyors, vibrating screens, air hammers, vibration testing machines, casting machinery, etc. that require stroke control or On equipment or instruments for shock absorption and isolation. At this stage, air springs are also used on my country's high-speed trains (such as Harmony EMU, Beijing-Shanghai High-speed Railway, etc.) for shock absorption and shock absorption. The application of washing equipment in developed countries such as Europe and the United States has also happened in the past few years. Continental air spring, Firestone air spring, high-mat air spring, Goodyear air spring
