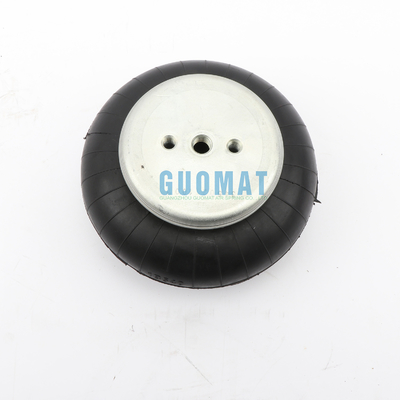

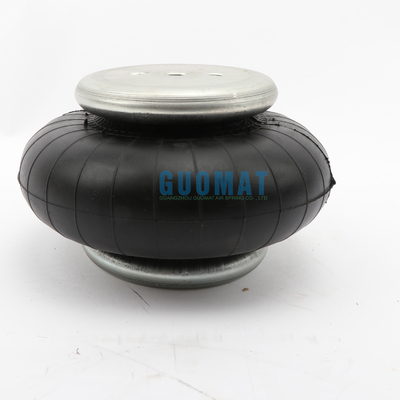

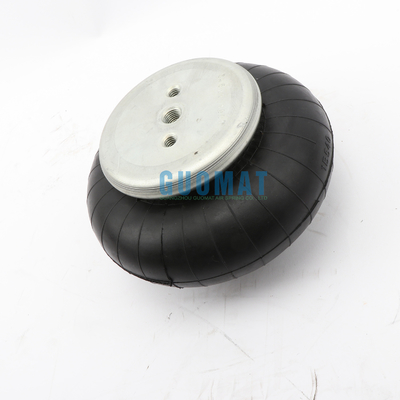

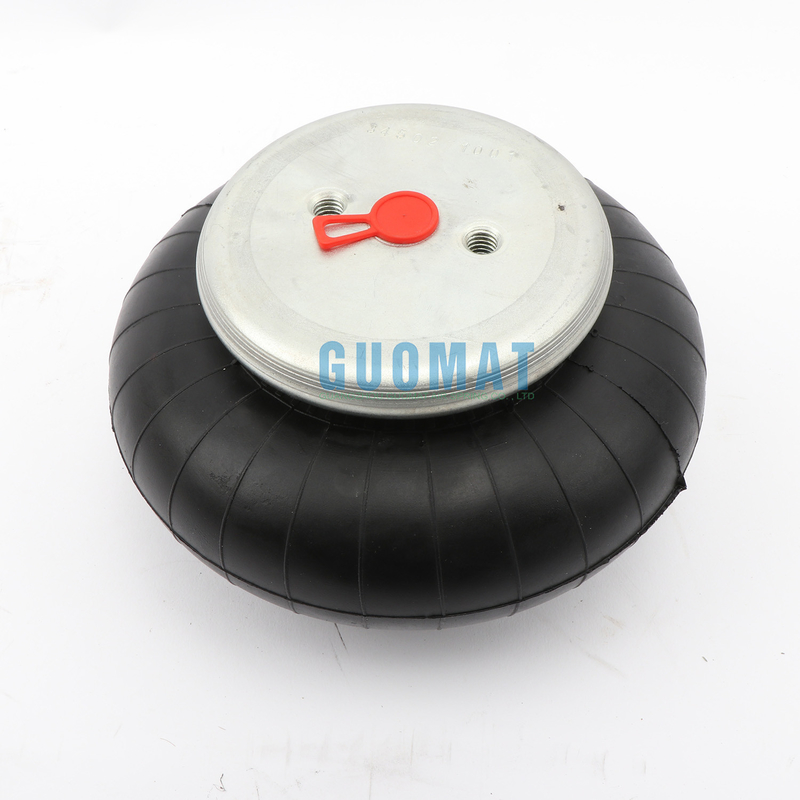

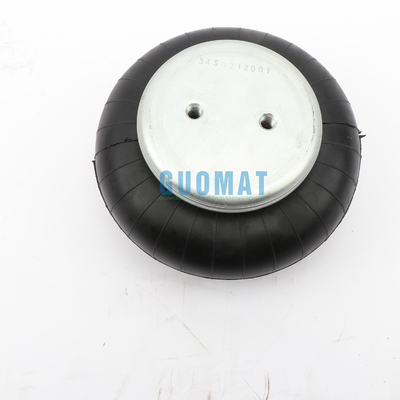

W013587451 Firestone Air Spring DIA. Max. 205 Air Suspension Bellows / Single Convoluted

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7451

Contact Now

Detailed Product Description

Type:	Suspension Spring	N.W.:	5.5 Kg
Plate Diameter:	115 Mm	Specification:	242422 Cm
HS Code:	8708809000	Warranty:	One Year
OEM:	Yes	Customization:	Available \| Customized Request
Highlight:	W013587451 Firestone Air Spring , Firestone Air Spring Single Convoluted

W013587451 Fire stone Air Spring DIA. Max. 205 Air Suspension Bellows / Single Convoluted

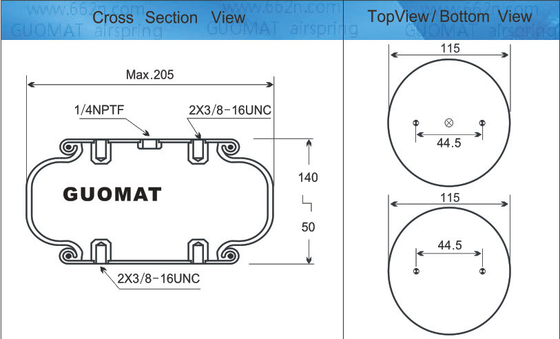

GUOMAT Part Number:1B7451 Specifications and Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 44.45 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 44.45 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPTF

Screw Center Distance Between Gas Hole and Nut : 22.25 mm

Cover Plate

Top Cover Plate Diameter: 115 mm

Bottom Cover Plate Diameter: 115 mm

Rubber Bellows

Rubber Bellows MAX Diameter: 205 mm

Rubber Bellows Natural Diameter : 180 mm

The Working Stroke : MIN 50 mm to MAX 140 mm

Maximum Height : 140 mm

Minimum Height :50mm

Stroke Height : 90mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :no One Pieces of Girdle Hoop

Goodyear Part # 1B7-100 Goodyear-FIRE STONEAir Spring Cross Reference‚ 1B7-101 Goodyear-FIRE STONEAir Spring Cross Reference‚ 1B7-102 Goodyear-FIRE STONEAir Spring Cross Reference‚ 1B7-103 Goodyear-FIRE STONEAir Spring Cross Reference‚ 1B7-540 Goodyear-FIRE STONEAir Spring Cross Reference‚ 1B7-541 Goodyear-FIRE STONEAir Spring Cross Reference‚ 1B7-542 Goodyear-FIRE STONEAir Spring Cross Reference

aximum Diameter @ 100 PSIG (mm)	210.82	Other Cross Reference	W01-358-7451, W013587451, WO1-358-7451, WO13587451
Maximum Height (mm)	140	Manufacturer Part Number	W013587451
Maximum Stroke (mm)	76.2	Manufacturer	Fire stone air spring Industrial
Minimum Usable Height (mm)	50	Style Number	110B
1 Inch (pounds)	2090	Style Shape	Single Convolution
3 Inch (pounds)	1030	Natural Frequency (@80 psig) (cpm)	162
Bead plate Type	1	400 CPM %	80.2
Blind Nut Centers (mm)	44.45	800 CPM %	95.7
Design Height	4.5	1500 CPM %	98.8
40 psig (pounds)	650	Maximum Stroke (pounds)	940
60 psig (pounds)	1010	Material	2-Ply Standard Cord
80 psig (pounds)	1390
