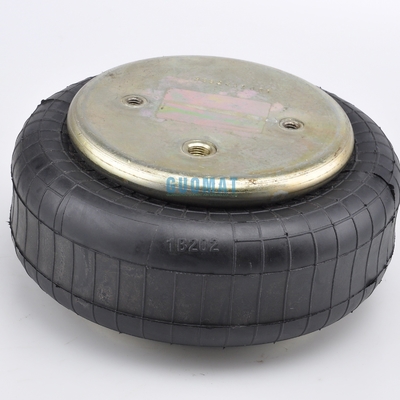

1B9-202 Goodyear Air Suspension Industrial Air Spring OEM 578913201 Position devices
OEM Original Equipment Manufacturer:
| Goodyear |
| 1B9-202 / 1B 9-202 / 1B9202 |
| 578 91 3 201 / 578-91-3-201 / 578913201 |
GUOMAT 1E9X5 Technical Parameters

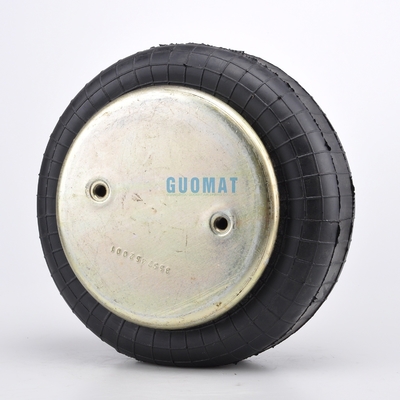

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm

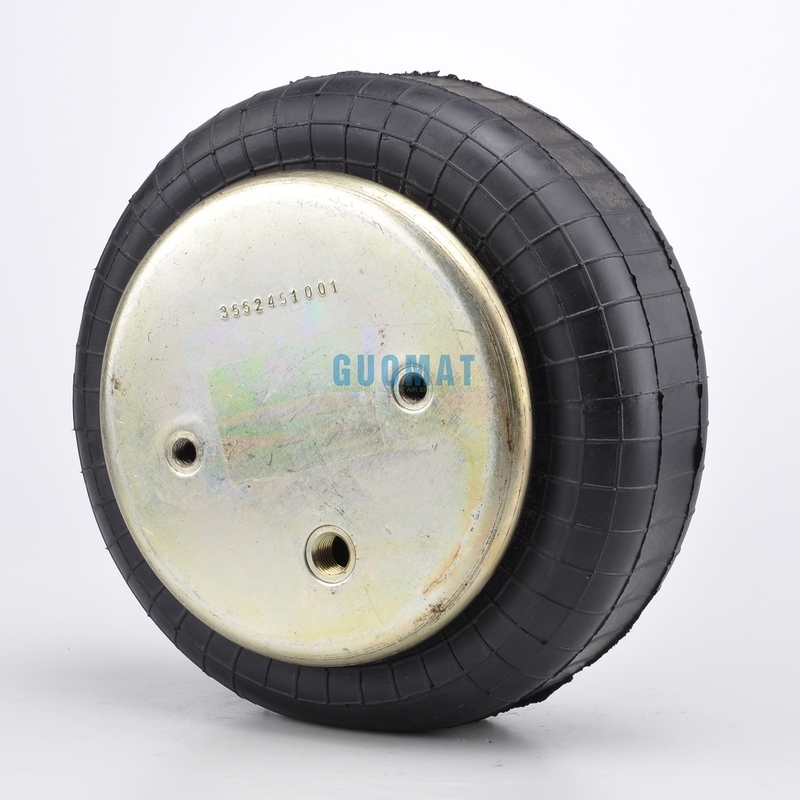

Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 44.5 mm

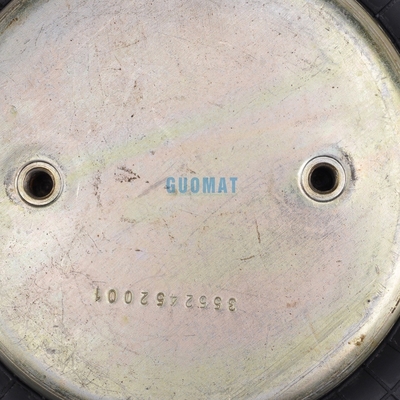

Cover Plate
Top Cover Plate Diameter (Width): 160 mm
Bottom Cover Plate Diameter (Width): 160 mm

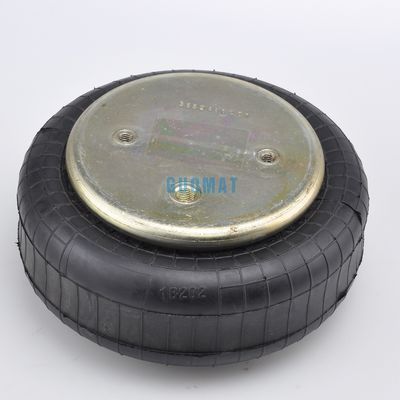

Rubber Bellows
Rubber Bellows Diameter : 222 mm
Compressed Height: 100 mm / 4.1 inches
Maximum Height: 160 mm
Working Stroke : 60 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :No of Girdle Hoop
SPRING FEATURES
LOAD RANGE(ISOLATOR)........
.640-3900|b
DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in
USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in
USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in
ASSEMBLY WE I GHT
FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib
NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in
| ASSEMBLY NUMBER |
ELASTOMER |
AIR FITTING |
BUMPER INCLUDED |
| 1B9-202 |
NAT. RUBBER |
1/4"-18 NPTF OFFSET 1.75" |
NO |
| 1B9-201 |
NAT. RUBBER |
1/4"-18 NPTF OFFSET 1.75" |
YES |
| 1B9-204 |
NAT. RUBBER |
1/2"-14 NPTF OFFSET 1.75" |
NO |
| 1B9-205 |
NAT. RUBBER |
1/2"-14 NPTF OFFSET 1.75" |
YES |
| 1B9-207 |
NAT. RUBBER |
3/4"-14 NPTF OFFSET 1.5" |
NO |
| 1B9-208 |
NAT. RUBBER |
3/4"-14 NPTF OFFSET 1.5" |
YES |
| 578913201 FLEXMEMBER NAT. RUBBER ONLY |
NAT. RUBBER |
|
|

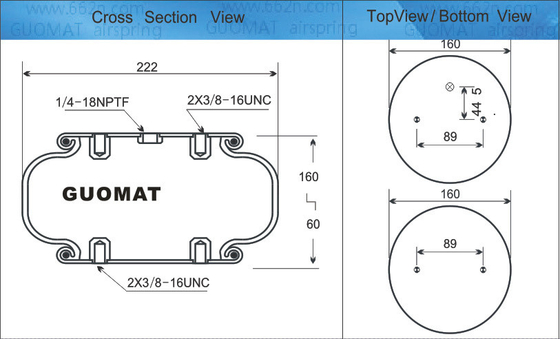

The drawing and data of GUOMAT 1B9X5 air spring:
