Small Size Industrial Air Spring Fs40-6 Contitech Machine Accessories Phoenix Sp1b04 Weforma Wbe100-E1 Load 500kg

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B4060

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product:	Industrial Air Spring	N.W.:	1.0 Kg
Air Inlet:	G1/8	Bottom Plate Hole/Stud:	M8
Bottom Plate Dia:	90 Mm	HS Code:	8708809000
Type:	Gas-Filled	Spring Material:	Rubber And Iron
Highlight:	500kg Industrial Air Spring , Small Size Industrial Air Spring , Weforma Industrial Air Spring

Fs40-6 Contitech Machine Accessories Small Size Industrial Air Spring Phoenix Sp1b04 Weforma Wbe100-E1 Load 500kg

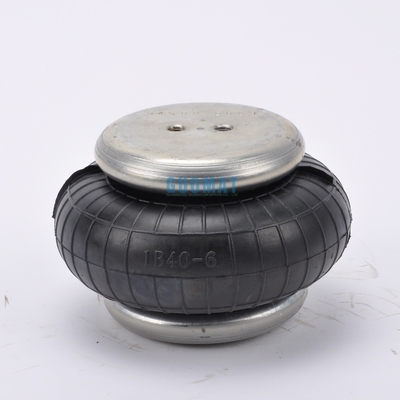

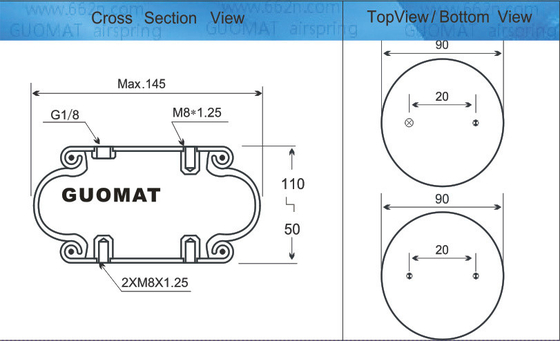

FS40-6 Technical Parameters
Top Cover Plate Diameter	90mm
Bottom Cover Plate Diameter	90mm
Screw Center Distance	20mm
Distance Gas Hole Between Nut	Together
Gas Hole	G1/8
Screw (Nut) Tooth	2pcsXM8X1.25
Rubber Bellows MAX Diameter	145mm
The Stroke	50-110mm

OEM Original Equipment Manufacturer:

Phoenix	SP1B04
Weforma	WBE100-E1
contitech	FS 40-6

Technical data
Min. pressure	0 bar
Return force to min. height	≤ 120 N
Overall weight with clamped plates	0.9 kg

Vibration isolation - dynamic characteristic values
Design height H: recommended 90mm, minimum 70mm
Pressure p [bar]	3	4	5	6	7	8	Vol. V[l]
Force (Load) [KN]	1.7	2.3	2.8	3.4	3.8	4.4	0.5
Spring rate [N/cm]	760	990	1220	1480	1610	1820
Natural frequency [Hz]	3.5	3.3	3.3	3.3	3.2	3.2

Pneumatic application - static characteristic values
Force F [kN]
Pressure p [bar]	3	4	5	6	7	8	Vol. V[l]
Height H [mm] 60	2.6	3.5	4.3	5.2	6.1	6.9	0.3
70	2.3	3.2	3.9	4.7	5.4	6.2	0.4
80	2.1	2.8	3.5	4.2	4.9	5.3	0.5
90	1.7	2.2	2.8	3.4	3.9	4.4	0.5
100	1.2	1.6	2	2.5	3	3.4	0.6

The usal kinds of Single Convolution Air Actuator

Single Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO.	Contitech NO.	Min. Design height	Installation Space Required	Max. Stroke
1B4060	FS 40-6	50	160	60
1B5050	FS 50-5	51	165	44
1B7070	FS 70-7	51	180	64
1B10010	FS 100-10	51	225	94
1B1209	FS 120-9	50	230	85
1B1210	FS 120-10	51	245	99
1B12012	FS 120-12	51	250	119
1B20010	FS 200-10	51	265	89
1B33011	FS 330-11	51	340	99

Air springs have successfully solved actuating problems, at a reduced cost,in many applications including:

1.Commercial washing machine

2.Hopper tank

3.Packaging machine vibration

4.The compressor

5.The console

6.Vibrating screen

7.Blower and motor

8.Control panel

9.Shock isolation

10.Shielding and flexible coupling

11.Vacuum pump

12.Expansion chuck

13.Supporting roller CAM

14.The sun tracker

Other kinds of guomat air springs for industrial machine:

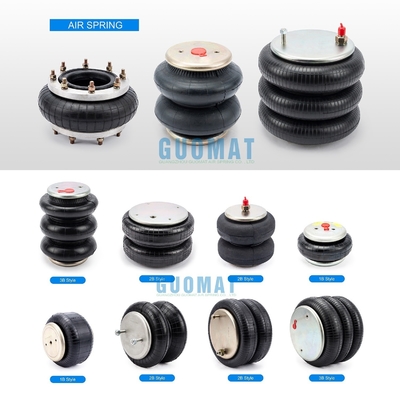

Small Size Industrial Air Spring Fs40-6 Contitech Machine Accessories Phoenix Sp1b04 Weforma Wbe100-E1 Load 500kg 0

GUOMAT air spring production line:

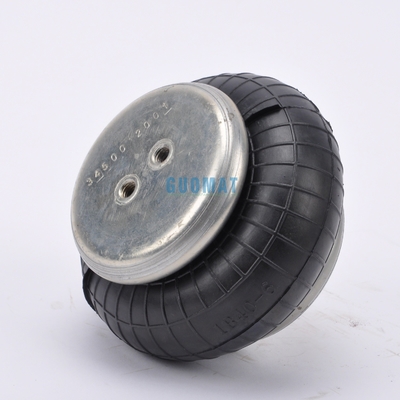

Small Size Industrial Air Spring Fs40-6 Contitech Machine Accessories Phoenix Sp1b04 Weforma Wbe100-E1 Load 500kg 1

Details pictures of air spring 1B4060:

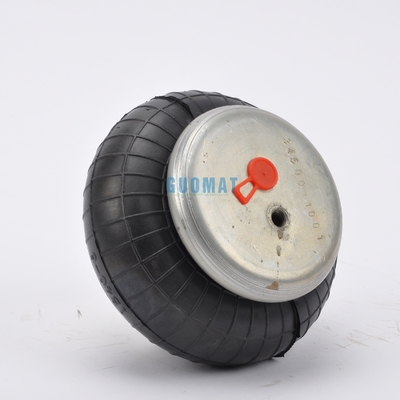

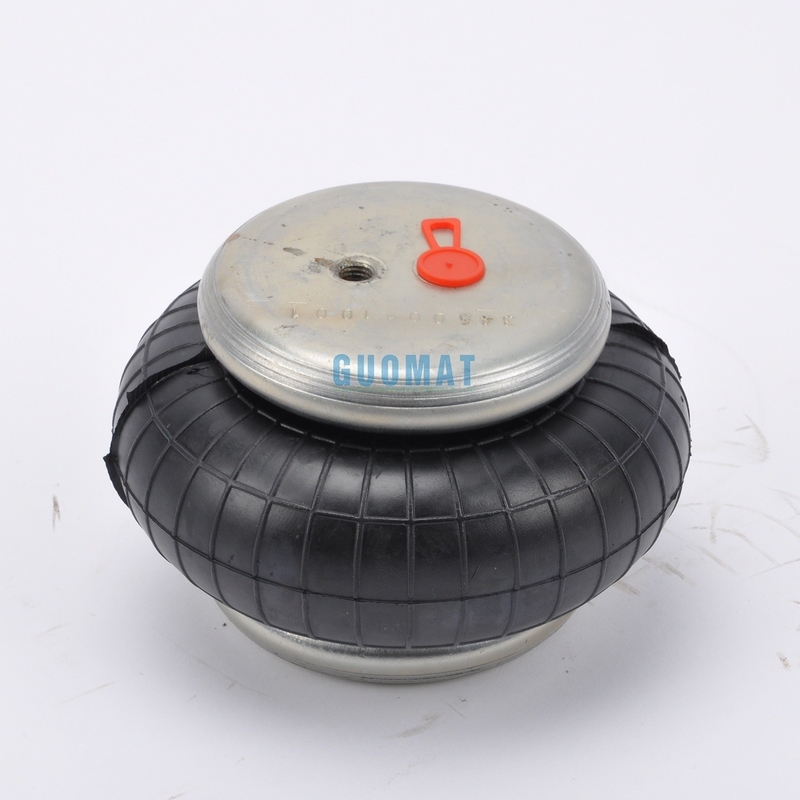

Small Size Industrial Air Spring Fs40-6 Contitech Machine Accessories Phoenix Sp1b04 Weforma Wbe100-E1 Load 500kg 2
