| Place of Origin: | Guangzhou China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949, ISO9001 |
| Model Number: | 1B7451 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD49.9-59.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Bottom Plate Hole/Stud: | 3/8-16unc | Top Plate Dia: | 115 Mm |
|---|---|---|---|
| Bottom Plate Dia: | 115 Mm | Specification: | 16*16*16 Cm |
| Warranty: | 1 Year | N.W.: | 1.2 Kg |
| Air Inlet: | 1/4 NPT | Top Plate Hole/Stud: | 3/8-16unc |
| Highlight: | W013587451 Firestone Air Springs,Single Convoluted Firestone Air Springs |
||

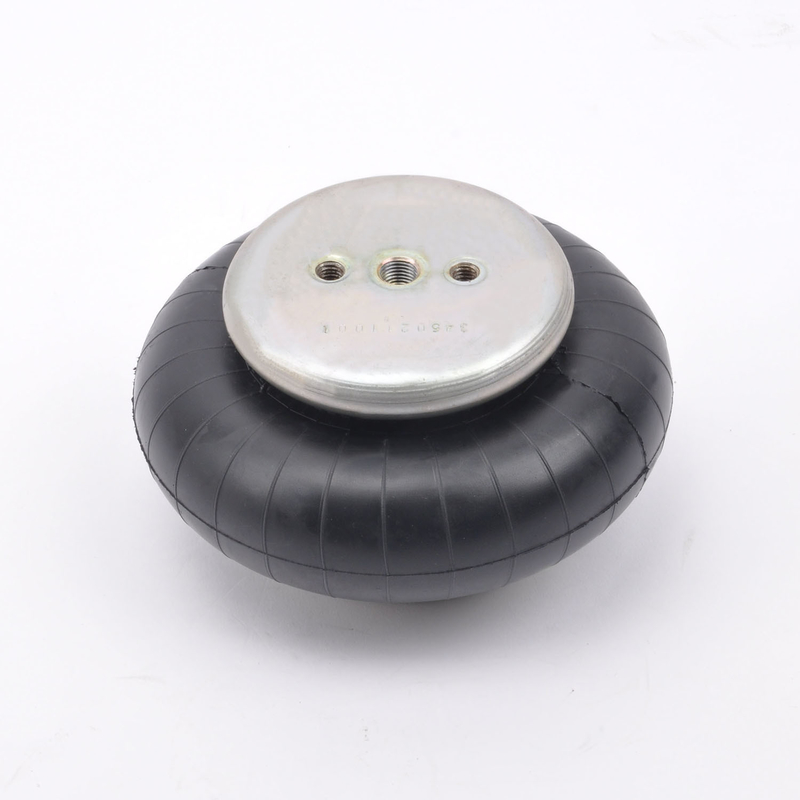

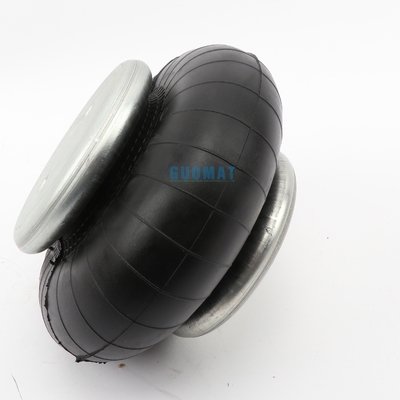

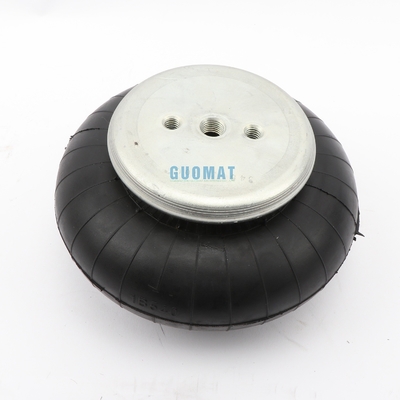

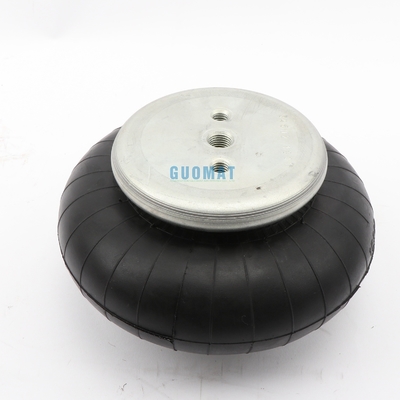

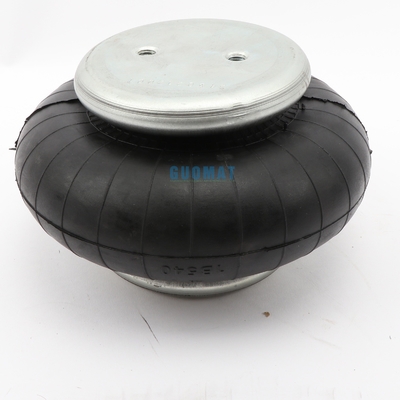

W013587451 Firestone Style Number 110B Air Springs Single Convoluted Air Shock

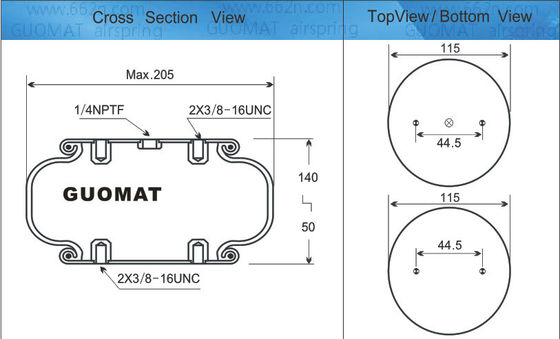

GUOMAT Part Number:1B7451 Specifications and Technical parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 44.45 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 44.45 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF
Screw Center Distance Between Gas Hole and Nut : 22.25 mm
Cover Plate
Top Cover Plate Diameter: 115 mm
Bottom Cover Plate Diameter: 115 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 205 mm
Rubber Bellows Natural Diameter : 180 mm
The Working Stroke : MIN 50 mm to MAX 140 mm
Maximum Height : 140 mm
Minimum Height :50mm
Stroke Height : 90mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
Goodyear-Fire stone air spring Cross Reference 1B7-100
Goodyear-FIRE STONE Air Spring Cross Reference‚ 1B7-101
Goodyear-FIRE STONE Air Spring Cross Reference‚ 1B7-102
Goodyear-FIRE STONE Air Spring Cross Reference‚ 1B7-103
Goodyear-FIRE STONE Air Spring Cross Reference‚ 1B7-540
Goodyear-FIRE STONE Air Spring Cross Reference‚ 1B7-541
Goodyear-FIRE STONE Air Spring Cross Reference‚ 1B7-542
| aximum Diameter @ 100 PSIG (mm) | 210.82 | Other Cross Reference |
W01-358-7451, W013587451, WO1-358-7451, WO13587451
|
| Maximum Height (mm) | 140 | Manufacturer Part Number | W013587451 |
| Maximum Stroke (mm) | 76.2 | Manufacturer | FIRE STONE Air Spring Industrial |
| Minimum Usable Height (mm) | 50 | Style Number | 110B |
| 1 Inch (pounds) | 2090 | Style Shape | Single Convolution |
| 3 Inch (pounds) | 1030 | Natural Frequency (@80 psig) (cpm) | 162 |
| Bead plate Type | 1 | 400 CPM % | 80.2 |
| Blind Nut Centers (mm) | 44.45 | 800 CPM % | 95.7 |
| Design Height | 4.5 | 1500 CPM % | 98.8 |
| 40 psig (pounds) | 650 | Maximum Stroke (pounds) | 940 |
| 60 psig (pounds) | 1010 | Material | 2-Ply Standard Cord |
| 80 psig (pounds) | 1390 |
