| Place of Origin: | Guangzhou China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949, ISO9001 |
| Model Number: | 1B 120-9 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD49.9-59.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Type Name: | Single Convoluted Air Actuator | Function: | Reduce Shock |
|---|---|---|---|
| Quality: | 100% Tested | After-sales Service: | 1 Year |
| Position: | Industrial Machine | Type: | Gas-Filled |
| OEM: | ContiTech FS120-9 | Firestone: | W01-M58-6165 |
| Highlight: | Air Vibration Rubber Air Bellow,Contitech FS120-9 Rubber Air Bellow,Industrial Rubber Air Bellow |
||
| Material | Rubber + Steel | Place of Origin | Guangdong, China |
| Brand Name | GUOMAT | MQQ | 1 Pcs |
| Model Number | 1B 120-9 | Warranty | 1 year |

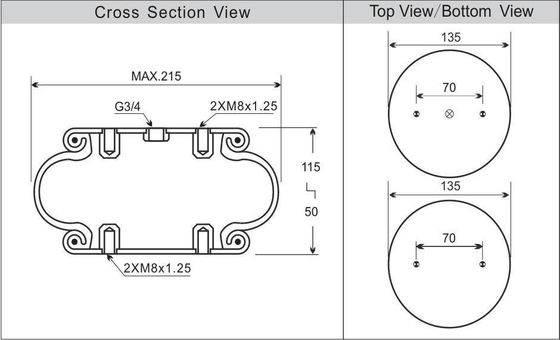

| Plate Dia | 135mm | Max Dia. | 215mm |
| Firestone | W01-M58-6165 | Contitech | FS 120-9 |
| Dunlop(FR) | 8"x1 S08101 | B osch | 822419003 |
| F esto | EB-215-80 | Norgren | PM/31081(8x1) |
| Weforma | WBE 300-E1 | Airtech | 140293 |
| Airtech | 111003 | Airtech | 1B-190FB |
| Megatech | 1S120-9 3/4 M8 |
Product data view
Functions
Air Spring
An air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities. As the air pressure increases, the air spring can support more load while the spring rate increases. The larger the air spring, the greater the maximum load it can support.
Air Suspension
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steelsprings. Computer operated vents on the air springs, suspension sensors, and an onboard air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.
FS120-9 Pneumatic Application – Static Characteristic Values
Force F [kN]
| Pressure P | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.V[l] |
| Height H [mm] | 120 | 3.1 | 4.3 | 5.6 | 6.9 | 8 | 9.2 | 1.9 |
| 110 | 3.86 | 5.28 | 6.84 | 8.28 | 9.6 | 10.9 | 1.8 | |
| 100 | 4.48 | 6.1 |
7.9 |
9.66 | 11 | 12.4 | 1.7 | |
| 90 | 5.01 | 6.8 | 8.9 | 10.8 | 12.2 | 13.8 | 1.5 | |
| 80 | 5.5 | 7.38 | 9.65 | 11.6 | 13.3 | 15 | 1.3 | |
| 70 | 5.9 | 7.87 | 10.3 | 12.3 | 14.2 | 16 | 1.1 | |
| 60 | 6.3 | 8.23 | 10.7 | 13 | 15 | 17 | 0.85 |
