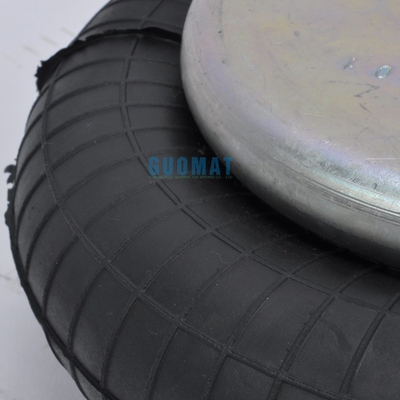

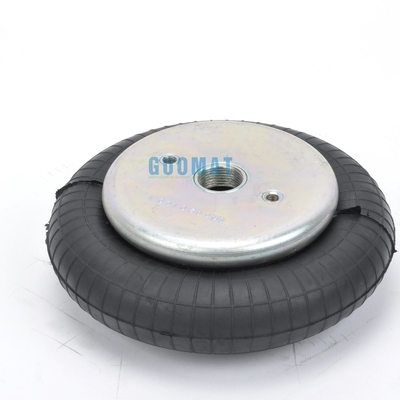

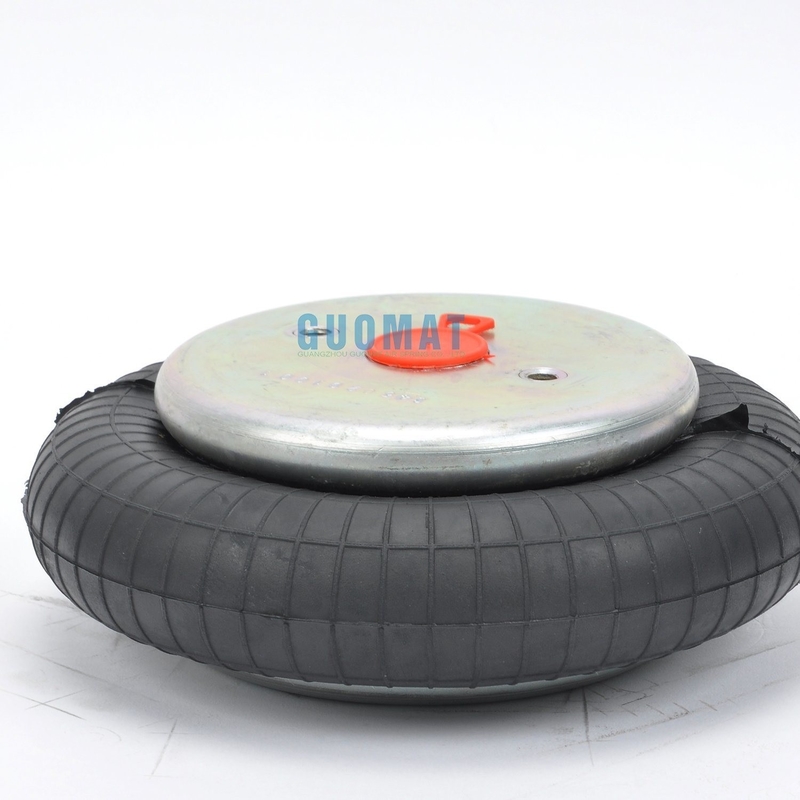

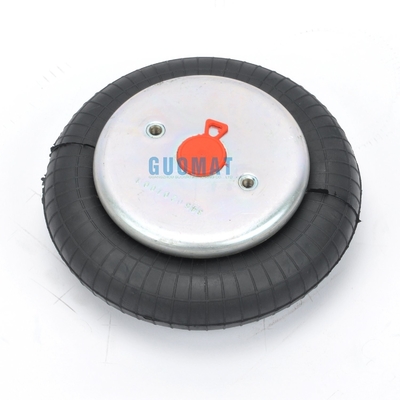

Industrial Air Spring Single Convoluted W01-358-7731 1B131 Agriculture Machine

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7731

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item Name:	Industrial Air Spring	Condition:	Brand-New
Function:	Reduce Shock	Quality:	100% Tested
Position:	Front/Rear	Type:	Gas-Filled
Replace Firestone:	W01-358-7731	Bellows NO.:	1B131
Highlight:	Single Convoluted Industrial Air Spring , W01-358-7731 Industrial Air Spring

Industrial Air Spring Single Convoluted W01-358-7731 1B131 Agriculture Machine

Quick Detail

Description: Single Convoluted Industrial Air Spring
OEM NO:W01-358-7731
Material: Rubber Steel
Condition:Brand new
Warranty:12 Months
Packing: Neutral Packing Or As Requirement
Delivery:2-8 working days
Nuts:Blind Nuts

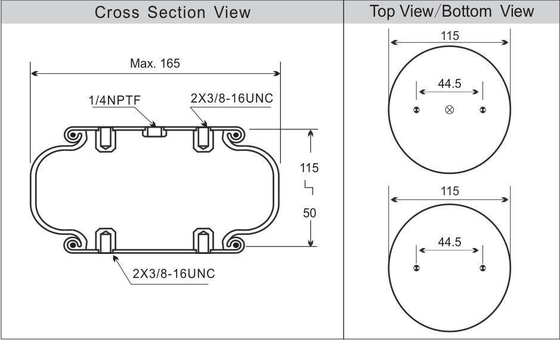

1/4 NPTF Air Inlet

Refer Numbers
Firestone : W01-358-7731

Air springs are time-proven industrial actuators and vibration isolators. As an actuator, air springs offer a unique ability to provide linear or angular motion in a very low profile when compared to air cylinders. Their unique, flexible properties lend well to numerous duties on machines that press, tension, roll, convey, lift and package. As an isolator, air springs are effective in reducing the harmful effects of vibration.

W01-358-7731 Firestone Air Stroke

Description		Assembly Order No.
Style 313	Blind Nuts,1/4NPT	W01-358-7731
Style 313	Blind Nuts,3/4NPT	W01-358-7742
Two Ply Bellows	Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)	W01-358-0127
	3/4 NPT (only) upper plate, blind nuts lower plate	W01-358-7729
	Rubber bellows only	W01-358-0131
