FD200-19 Contitech Double Convoluted Air Spring 2B9-252 Goodyear Rubber Air Bag

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B200-19

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Condition:	Brand-New	Sample:	Available
Max Diameter:	251mm	Plate Diameter:	160mm
Transport Package:	Cartons	Trademark:	GUOMAT
Warranty:	1 Year	Type:	Gas-Filled
Highlight:	Contitech Double Convoluted Air Spring , 2B9-252 Double Convoluted Air Spring

Customized Suspension Parts Double Convoluted Suspension Air Spring Contitech FD200-19

Convoluted type air spring
Convoluted type air spring is composed of a rubber Convoluted sandwiched with cords and compressed air sealed in it. The inner layer of the airbag is made of air-tight rubber, while the outer layer is made of oil-resistant rubber. Airbags are generally made into two sections,but there are also single sections or three or four sections. The more the number of nodes, the better the elasticity, but the sealing performance is poor. There is a steel waist ring between the nodes to prevent radial expansion of the middle part and prevent friction between the two nodes. The upper and lower covers of the airbag seal the airbag.

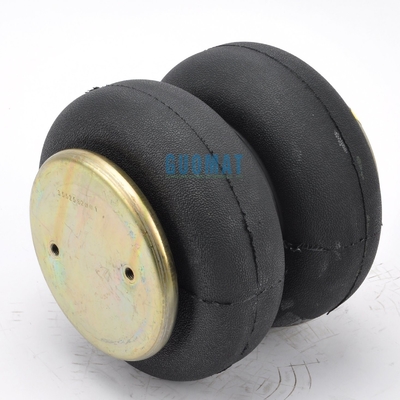

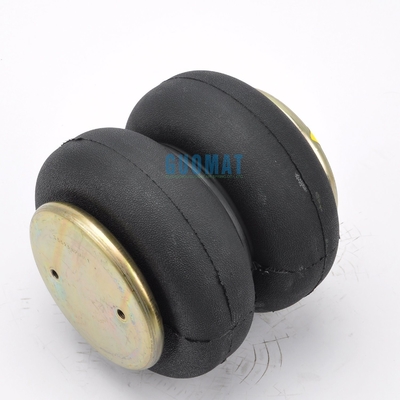

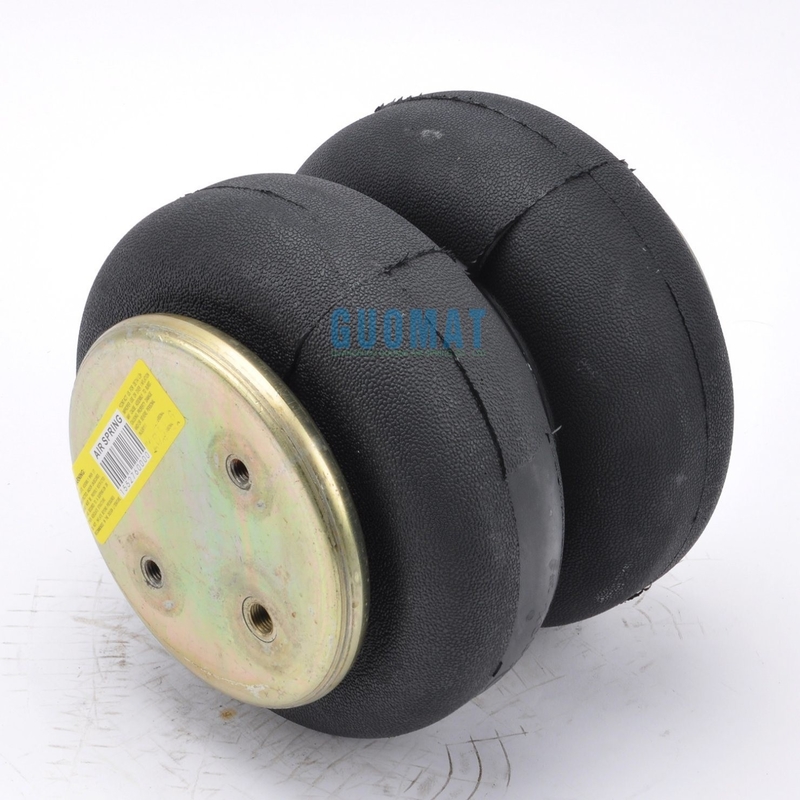

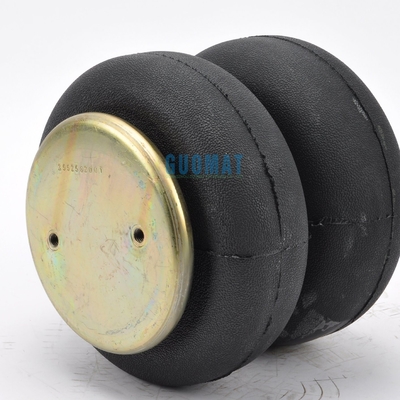

FD200-19 convoluted Air Spring

Contitech Part Number FD 200-19

Contitech Part Number FD200-19

Firestone Part Number W01-M58-6891 / W01 M58 6891 / W01M586891

Firestone Part Number 20-2

Goodyear Part Number 2B9-252 / 2B 9-252 / 2B9 252

Airtech Part Number 2B-225

Scania Part Number 1387283

SAF Part Number 1319761

Megatech Part Number 2D 200-25 P04

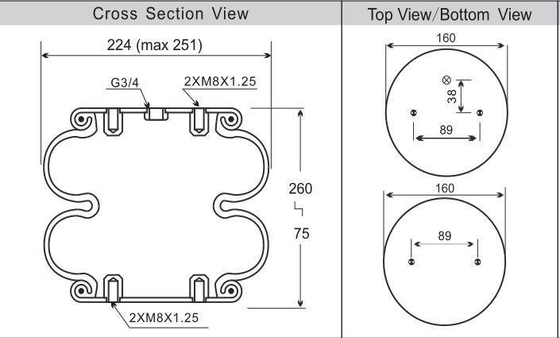

Product Technical parameters

Top Cover Plate Dia.:160mm

Bottom Cover Plate Dia:160mm

Screw Center Distance:89mm

Distance Gas Hole Between Nuts:38mm

Gas Hole Type:G3/4

Screw(Nut)Tooth:2 X M8X1.25

Rubber Bellows Dia.:224mm(MAX.215)

The Stroke:75~260mm

We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.

Specification:

Long lasting service on almost all tryck and trailer air suspension.

Absorb road shock to help tractors and rigs last longer.

Cut down on vibration and driver fatigue.

Long trouble free service,constant leve; hauling,quite cushioned ride.
