Firestone Pneumatic Balloon W01-358-6900 Air Suspension Spring Gas-Filled 3/4NPTF

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6900

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD69.9-79.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	W01-358-6900	Brand:	Guomat Or Neutral
Condition:	Brand-New	Air Inlet:	3/4NPTF
Max Diameter:	251mm	Plate Diameter:	160mm
HS Code:	8708809000	Warranty:	1 Year
Part Name:	Air Spring	Type:	Gas-Filled
Highlight:	W01-358-6900 Air Suspension Spring , Firestone Pneumatic Balloon Air Suspension Spring

Contitech Goodyear Pneumatic Balloon W01-358-6900 Air Suspension Spring 3/4NPTF

Product Information

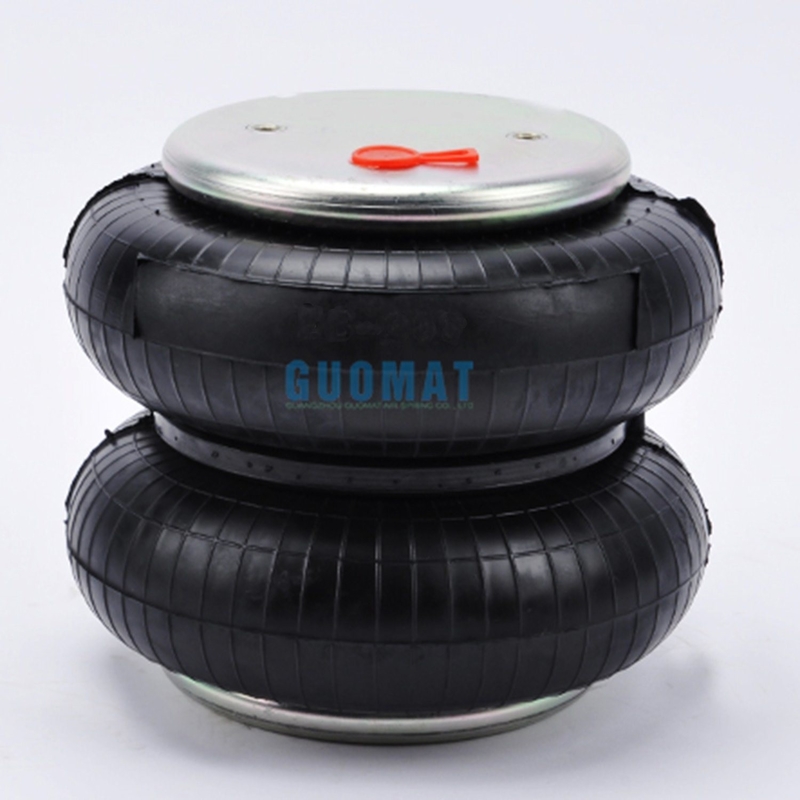

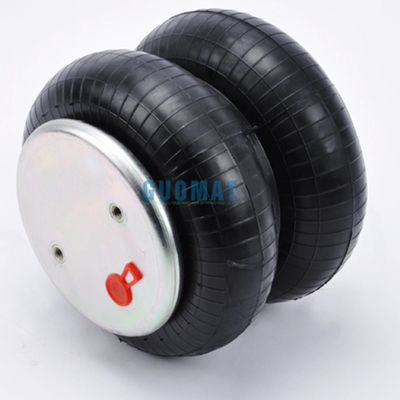

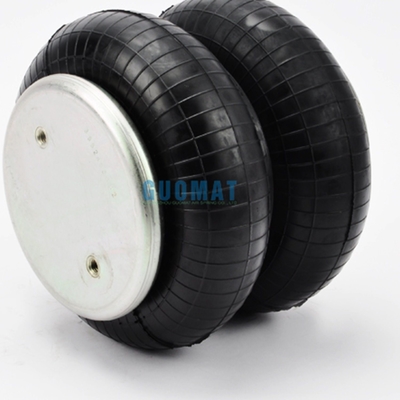

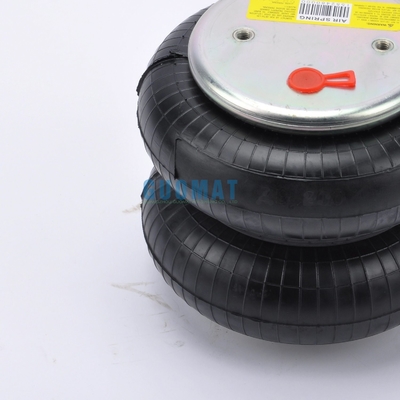

Type	Double Convoluted Airbag
Color	Black
Application	Pick Up
Warranty	12 Months
Payment	T/T L/C Western Union
Packing	Carton Box
Delivery date	2-8 working days
MOQ	1 Piece
Fire stone	W01-358-6900
Contitech	FD 200-19 319/161017
Goodyear	2B9-216/204/207 2B8-157 578923202
Dina	A1812719
MASA	227138412
Ridewell	1003586900C
Suspensions	630173
Watson&Chalin	AS-0156G

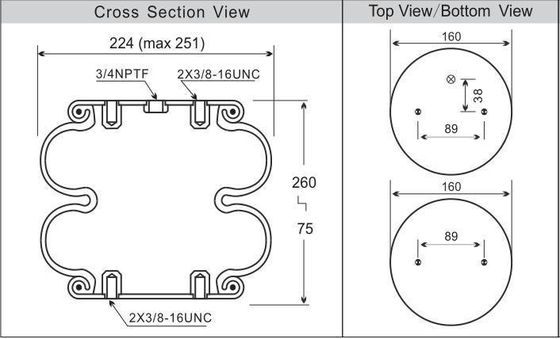

Product data

Compressed height: 3.12

Number of roofs: 3079

Top cover diameter: 6.31 inches / 160 mm

Number of bottom pistons: 3090

Bottom cover diameter: 6.31 inches / 160 mm

Screw center distance: 89 mm

The distance between the nuts is 44.5 mm

Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC

Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC

Rubber bellows MAX diameter: 251 mm

Rubber bellows natural diameter 224 mm

Working stroke: up to 260 mm to MIN 75 mm

Vent/air inlet: 3/4 NPTF

Number of Corspass bellows: 20

Air Bag Identification Tips
Replacing worn out or broken air springs? Need help indentifying which air springs or air bags you need for your heavy duty truck, trailer or bus suspension? Please click on the box below to send your enquiry direct to us.

GUOMAT Air Bag
Require little to no maintenance
Pressure tested for quality assurance
Increase towing and hauling capabilities
Replace worn out oem air bags
Increase life of other suspension components
