| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7009 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD49.9-59.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Spring Type: | Air Spring | Sample: | Available |
|---|---|---|---|
| Function: | Reduce Shock | After-sales Service: | 1 Year |
| Position: | Front/Rear | Type: | Gas-Filled |
| Spring Material: | Rubber | Contitech: | FS330-11 468 |
| High Light: | Single Convoluted Air Suspension Spring,W01-358-7009 Air Suspension Spring |
||

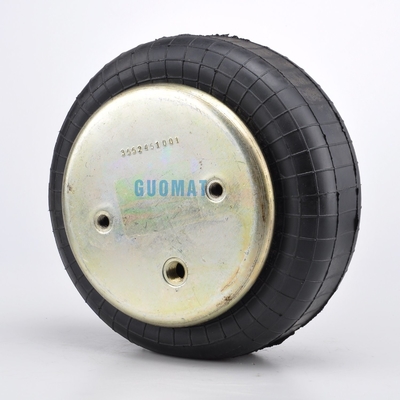

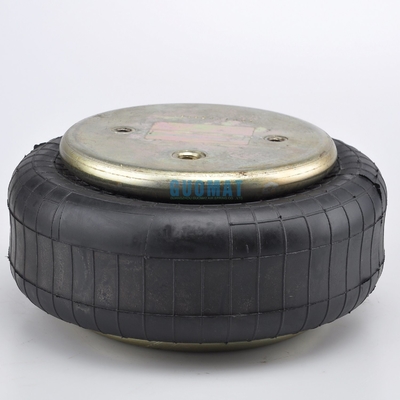

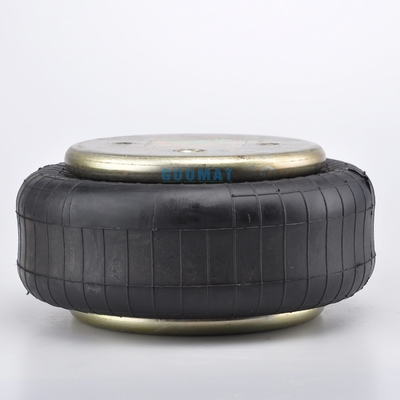

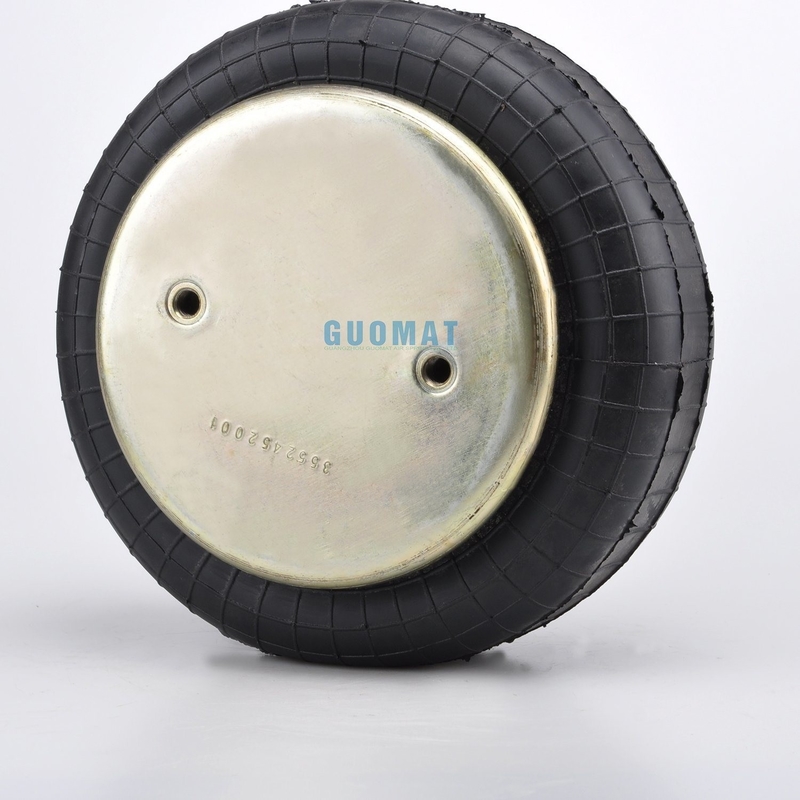

Single Convoluted Air Suspension Spring W01-358-7009 Contitech Air Bellows FS330-11 468

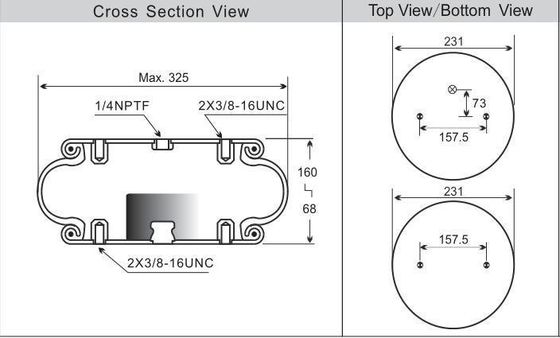

Specifications and Technical Data
Top cover plate diameter:231mm
Bottom cover diameter:231mm
Screw center distance of top cover plate:157.5mm
Screw and Air hole distance of top cover plate:73mm
Air hole:1/4NPTF
Top cover plate screw(nut)tooth:2x3/8-16UNC
Screw center distance of bottom cover plate:157.5mm
Bottom cover plate screw(nut)tooth:2x3/8-16UNC
Rubber bellows MAX diameter:325mm
The working stroke:MAX 160mm to MIN 68mm
Maximum height:160mm
Minimum height:68mm
OEM Original Equipment Manufacturer
| Firestone W01-358-7009 / W01 358 7009 / W013587009 |
| Contitech FS 330-11 468 / FS330-11 468 |
| Goodyear 1B12-301/578913301 |
| Triangle 6374/4468 |
SAF Holland 90557002/AR741
Ridewell 1003587009C
Firestone Bellows Number:19
Goodyear part number:1B12-301/1B12-313
Goodyear Bellows Number:578-91-3-301/578 91 901/57891301
Firestone W013587009 Details
Airide springs can reduce your costs and increase your profits.
Last at least twice, and as much as four times longer than steel springs
Require little or no maintenance
Increase life of tires and brake linings
Substantially reduce breakage and maintenance of other vehicle components, including electrical, air conditioning, cab mounts, exhaust, chassis, seals, wiring and drive train
Let you haul anything; eliminate expensive deadheading runs
Reduce driver discomfort and dangerous fatigue; improve driver safety, productivity and loyalty
Allow perfect load equalization between axles; let you run at the maximum legal limit
Provide smoother ride for payload, reducing costly insurance claims and the expense of overpackaging
Pay you back at trade-in time; trucks and trailers with air suspensions are worth more
100% of all air spring assemblies are pressure tested before they leave Fire-stones factory.
2 year / 200,000 mile warranty.
Fire-stone is the original designer of composite pistons.
Fire-stone rubber compounds have superior 'flex' range through temperatures of -65 F to 135 F.
