Email:linda@662n.com Mob:+8613924100039(WhatsAPP)
Wechat:airspringG Skype:guomat
 |
| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7070 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD49.9-59.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Item Name: | Air Ride Suspension Spring | Function: | Reduce Shock |
|---|---|---|---|
| Quality: | 100% Tested | Transport Package: | Cartons |
| HS Code: | 8708809000 | After-sales Service: | 1 Year |
| Part: | Air Spring | Type: | Gas-Filled |
| High Light: | Single Convoluted Air Shock Absorber,Rubber Material Air Shock Absorber |
||

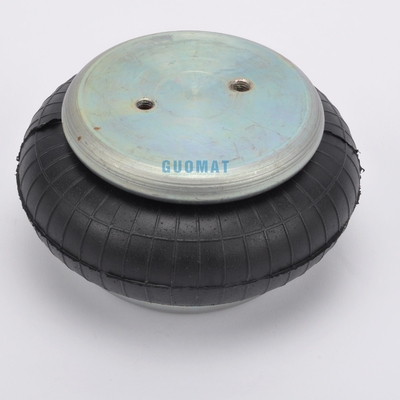

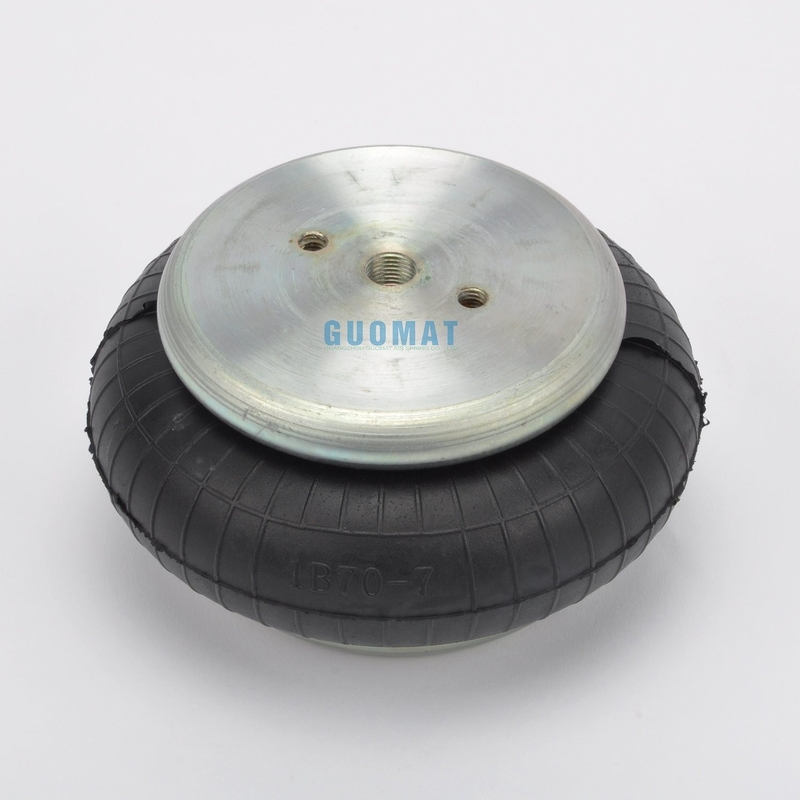

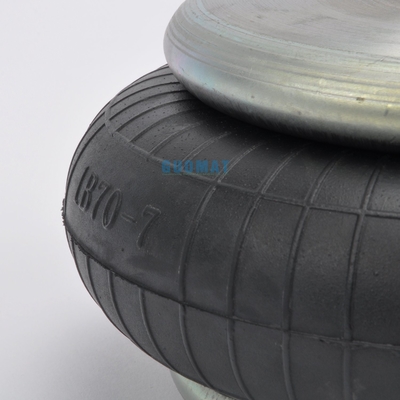

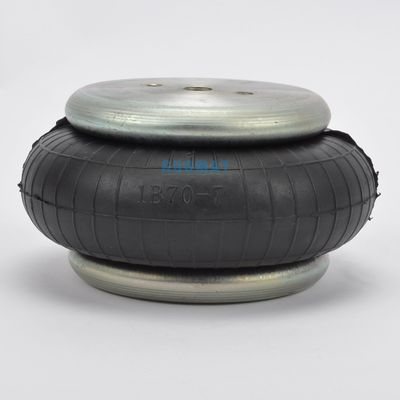

Rubber Material Single Convoluted Air Shock Absorber Contitech FS 70-7 Lift Air Spring
| Product Name | Air Spring |
| Item Number | 1B7070 |
| Warranty | 12 Months |
| Color | Black |
| Place of Origin | Guangzhou,China |
| Bellow Type | Single Convoluted |
| Certification | ISO/TS16949:2009 |
| Material | Rubber+Steel |
| MOQ | 1 PCS |
| Packing | Neutral Packing |
| Quality | Hight-Quality |
| Contitech | FS70-7 |
| Phoenix | SP 1B 05 |
| B osch | 822419002 |
| F esto | EB-165-65 |
| Weforma | WBE200-E1 |
1B 70-7 Single Convoluted Air Spring Technical Data
Top Cover Plate Diameter:105mm
Bottom Cover Diameter:105mm
Air Hole/Gas Hole:G1/4
Top Cover Plate Screw (Nut) Tooth:2XM8X1.25
Bottom Cover Plate Screw(Nut) Tooth:2XM8X1.25
Rubber Bellows MAX Diameter:165mm
Screw Center Distance of Top Cover Plate :44.5mm
Screw Center Distance of Bottom Cover Plate:44.5mm
The working Stroke:MAX 115 mm to MIN 50 mm
Maximum Height : 115 mm
Minimum Height :50 mmx
Compression Height : 65 mm
