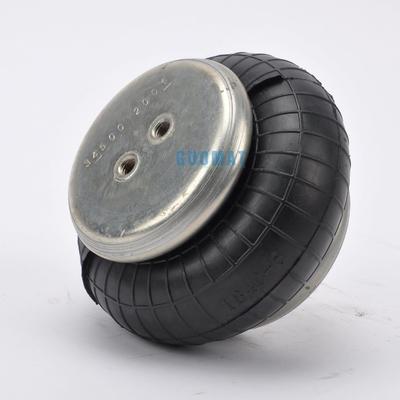

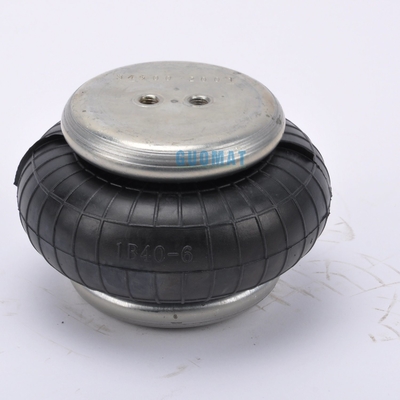

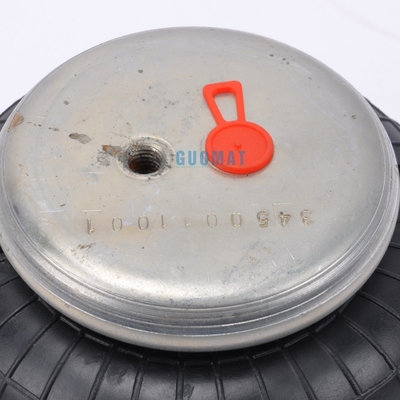

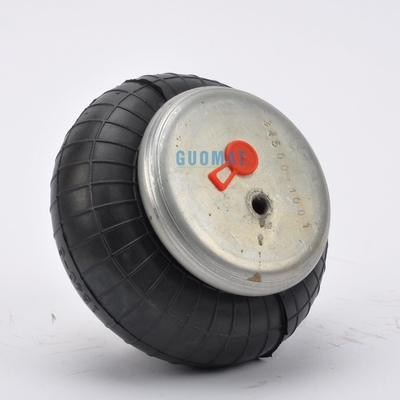

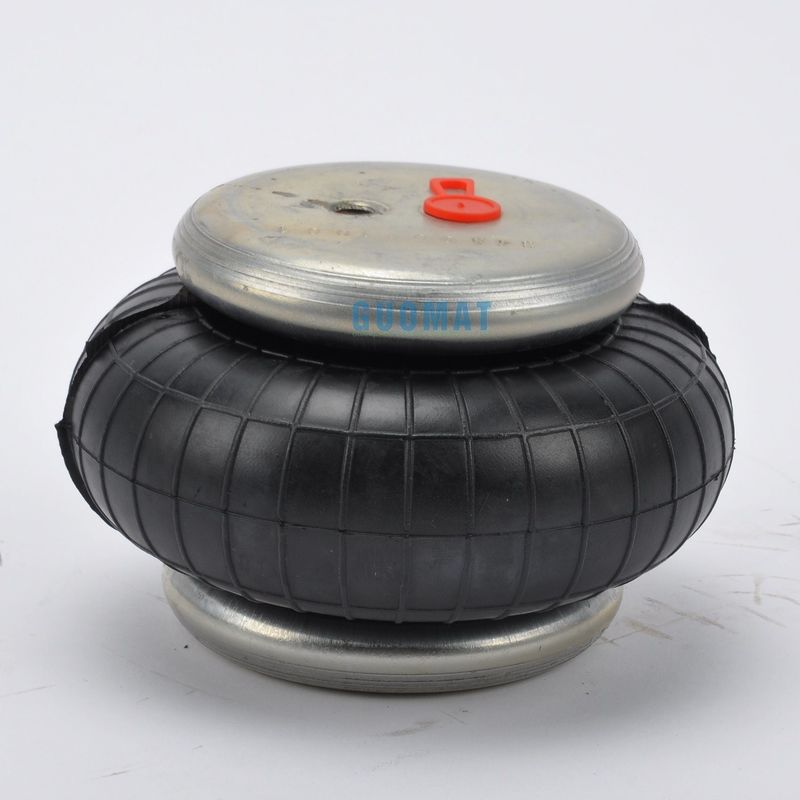

Contitech FS 40-6 1/8 M8 Phoenix SP1B04 Air Suspension Single Bellow Airbag

Product Details:

Place of Origin:	ISO/TS16949:2009
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B4060

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Material:	Rubber And Steel	Condition:	Brand-New
Sample:	Available	After-sales Service:	1 Year
Type:	Gas-Filled	Spring Type:	Air Spring
Phoenix:	SP1B04	Contitech:	FS40-6
Highlight:	Phoenix Air Suspension Single Bellow Airbag , SP1B04 Air Suspension Single Bellow Airbag

Contitech FS 40-6 1/8M8 Phoenix SP1B04 Air Suspension Single Bellow Airbag

Company Introduction

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump

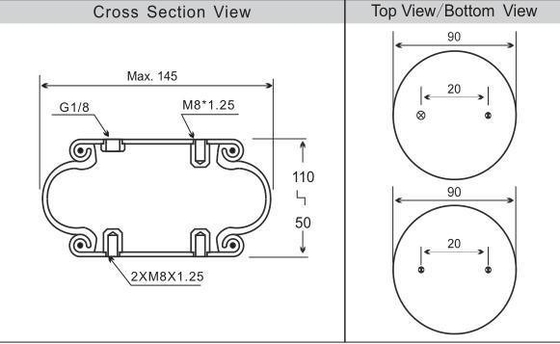

Cover Plate

Top Cover Plate Diameter: 90 mm

Bottom Cover Plate Diameter: 90 mm

Air Inlet/Gas Hole

Air Inlet:G1/8

Blind Nut

Top Cover Plate Screw(Nut)Tooth:1XM8X1.25

Bottom Cover Plate Screw(Nut)Tooth:2XM8X1.25

Distance Between Air Hole And Screw of Top Cover Plate:20mm

Screw Center Distance of Bottom Cover Plate:20mm

Rubber Bellow

Rubber Bellow MAX Diameter:145mm

The Woring Stroke :MAX 110 mm to MIN 50mm

Maximum Height:110mm

Minimum Height:50mm

Technical Data

Min. pressure 0 bar

Return force to min. height ≤ 120 N

Overall weight with clamped plates 0.9 kg

Cross Reference

Contitech:FS 40-6 1/8 M8

Phoenix:SP1B04

Weforma:WBE100-E1

Packing & Shipping

1. For small orders those in stock, we usually deliver in 2-8 working days after your payment.
2. While for those out of stock,it depends,we will inform you by email once you inquire.
3. Our payment terms : L/C , T/T, Western Union,Paypal
4. Freight may vary depending on specific weight, volume, and address, please check with us for the exact freight.

Product Image
