Single Convoluted Bellow Air Suspension Spring G1/4 Phoenix SP1B07

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	SP 1 B 07

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Condition:	Brand-New	Function:	Reduce Shock
Package:	Cartons	After-sales Service:	1 Year
Type:	Gas-Filled	Spring Type:	Convoluted Air Spring
Material:	Rubber And Steel	Phoenix:	SP1B07
Highlight:	Single Convoluted Bellow Air Suspension Spring , SP1B07 Air Suspension Spring

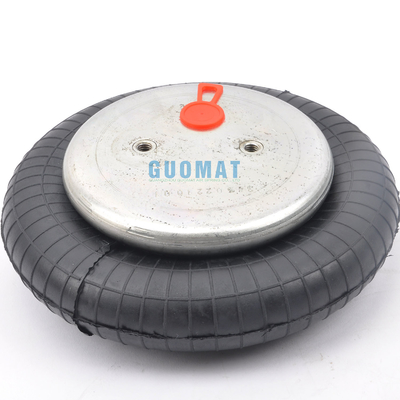

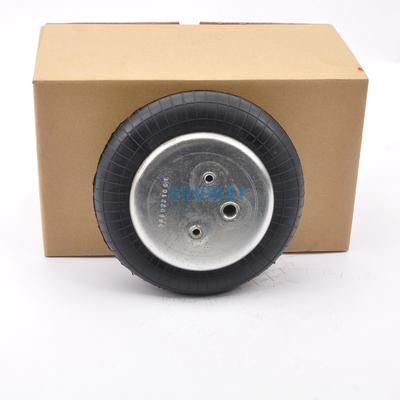

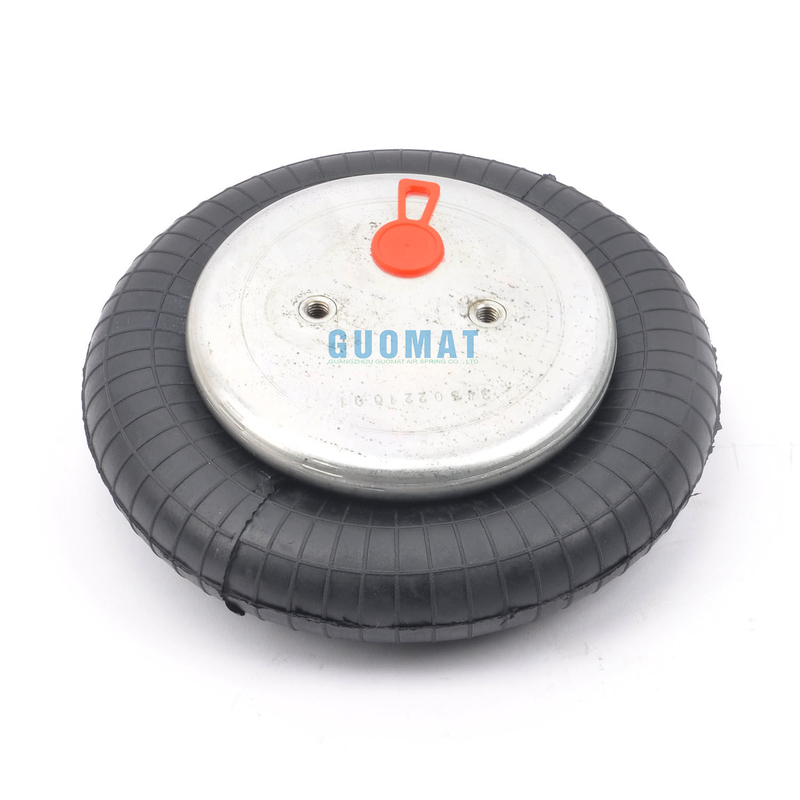

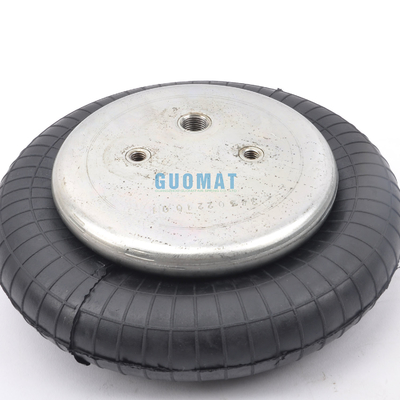

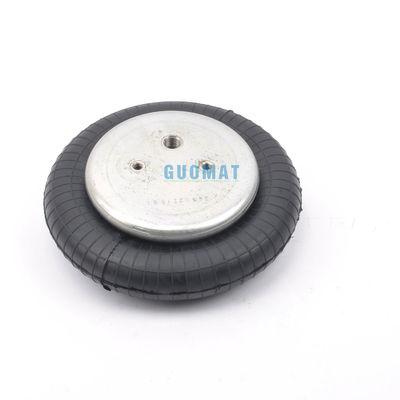

Popular Single Convoluted Bellow Air Suspension Spring G1/4 Phoenix SP1B07

Type:Single Convoluted Air Suspension Airbag

Model Number:1B5022

OEM Number:Phoenix SP1B 07,S P 1 B 0 7,SP 1B07

Condition:Brand New

Material:Rubber + Steel

Warranty:12 Months

Delivery Time : About 2 - 8 working days after receiving your payment

Payment:L/C, T/T,Western Union,Paypal

Working Temperature:-40ºC bis +70ºC

Failure testing:≥3 millions

Notice:These air suspension bags are aftermarket ones.They will replace the original air spring bags.
---Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.
---Instruction isn't included.Professional installation is recommended.
---Contact us please for whatever we can help.

Cover Plate	Top Cover Plate Diameter:135mm
Cover Plate	Bottom Cover Plate Diameter:135mm
Air Inlet	G1/4
Blind Nut	Screw Center Distance Of Top Cover Plate:53mm
	Screw Center Distance Of Bottom Cover Plate:53mm
	Screw And Gas Hole Diameter Of Top Cover Plate:26mm
	Top Cover Plate Screw (Nut) Tooth:2XM8X1.25
	Bottom Cover Plate Screw (Nut) Tooth:2XM8X1.25
Rubber Bellow	Rubber Bellow MAX Diameter:215mm
	The Working Stroke:MAX 115mm to MIN 50mm
	Maximum Height:115mm
	Minimum Height:50mm
	Compression Height:65mm

Applications

Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles, etc.

α.On household products such as washing machines
β.Special shock absorbers for bicycles
γ.On commercial lawn movers
δ.In the medical equipment industry ie. on wheelchairs

Better Plate
Thicker Bead,Better Durability And Strength Cr3+ White Zinc Electroplating Coating,Long Lasting Corrosion Resistance(240h)

Higher Safety Bellow
Specially Formulated Rubber Compound For Enhanced Ozone And Temperature Resistance,Burst Pressure 300+Psi,Fatigue 3 Million+Times.

Security
It Is Fully Tested To Ensure A Proper Fit And Performance.

Popular Single Convoluted Bellow Air Suspension Spring G1/4 Phoenix Sp1b07
