Bellows Single Convoluted Air Spring W01-358-7451 Air Bag Boot Industrial Air Suspension

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B7451

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Type Name:	Industrial Air Spring	Quality:	100% Tested
Firestone NO.:	W01-358-7451	Condition:	Brand-New
Function:	Reduce Shock	Gas Hole:	1/4NPTF
Max.Height:	140mm	Min.Height:	50mm
Highlight:	W01-358-7451 Single Convoluted Air Spring , Industrial Single Convoluted Air Spring

Bellows Single Convoluted Air Spring W01-358-7451 Air Bag Boot Industrial Air Suspension

Product Information

Fire-stone W01-358-7451 Air Spring Technical Data

Temperature Range (MIN): -37ºC

Bellows O.D.(MAX):205mm

Convoluted:Single

Air Inlet Type:NPTF

Air Inlet :1/4 N.P.T.F

Top Cover Plate Diameter:115mm

Bottom Cover Plate Diameter:115mm

Screw Center Distance of Top Cover Plate:44.5mm

Screw Center Distance of Bottom Cover Plate:44.5mm

Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

Bottom Cover Plate Screw(Nut) Tooth:2X3/8-16UNC

The Working Stroke:50mm ~140mm

Manufacturer:Fire-stone Industrial Products

Manufacturer Part Number:W01-358-7451,W013587451

Single Convolution Air Spring

Natural Bellows

Blind Nuts

1/4 NPTF Air Inlet

Description

Fire-stone air springs are time-proven industrial actuators and vibration isolators. As an actuator, air springs offer a unique ability to provide linear or angular motion in a very low profile when compared to air cylinders. Their unique, flexible properties lend well to numerous duties on machines that press, tension, roll, convey, lift and package. As an isolator, air springs are effective in reducing the harmful effects of vibration.

Applications	Features
1.Industrial actuator 2.Vibration isolator 3.Press machines 4.Conveyors 5.Lifts 6.Packaging machines	1.Two-ply, fabric-reinforced rubber 2.Flexible media 3.Provides linear and angular motion 4.Reduces harmful effects of vibration

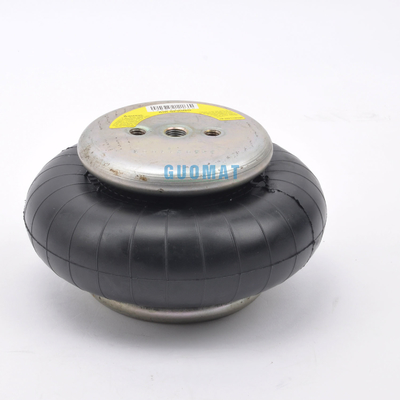

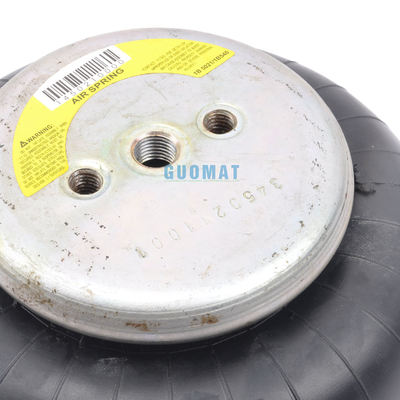

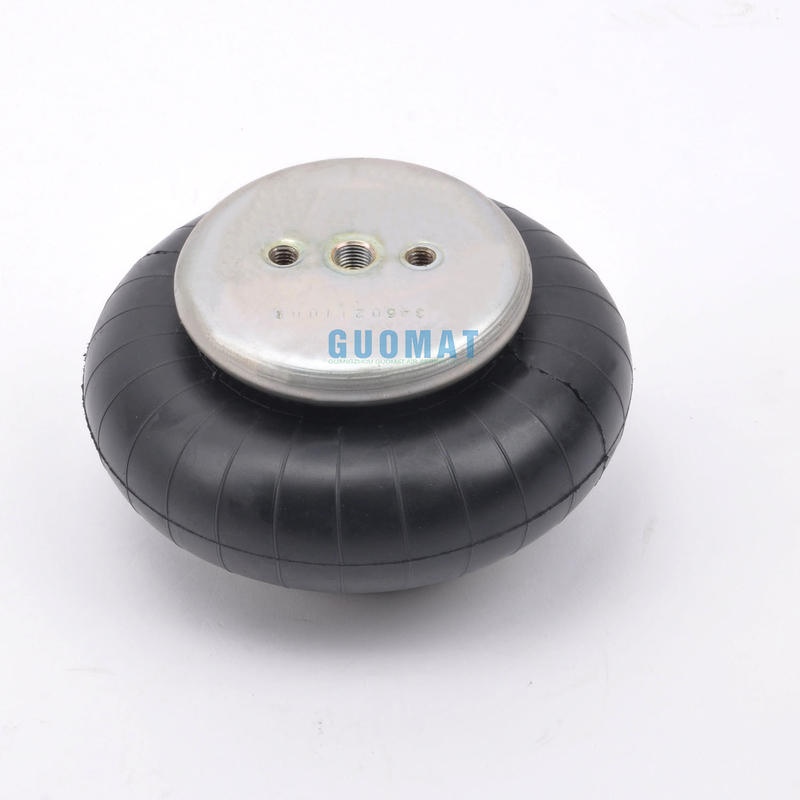

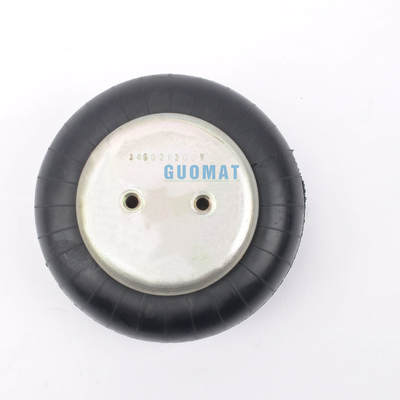

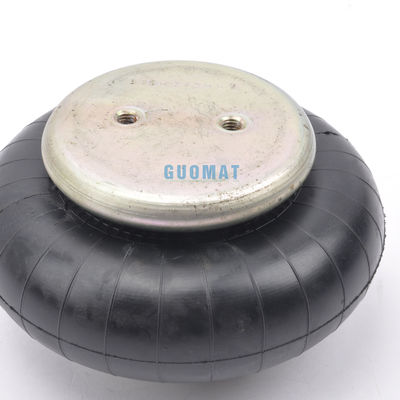

Product Image

Packing & Shipping

Package: According to customer requirement or neutral packing

Shipping: Guangzhou Port

Payment Term: L/C,T/T ,Western Union,Paypal

Delivery Time: About 2~8 working days after receive your payment
