Single Convoluted Style Goodyear 1B9-202 Rubber Bellows Air Spring For Instrument

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1E9X5

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Brand:	GUOMAT Or Neutral	Condition:	Brand-New
Sample:	Available	Function:	Reduce Shock
Goodyear:	1B9-202	Type:	Single Convoluted Style
Warranty:	1 Year	Other Name:	Rubber Air Spring
Highlight:	Instrument Rubber Bellows Air Spring

Single Convoluted Style Goodyear 1B9-202 Rubber Bellows Air Spring For Instrument

GOODYEAR 1B9-202 OEM Number

Goodyear:1B9-202

:578 91 3 201

Product Description

Type	Single Convoluted Goodyear Spring
Fit For	Goodyear
OEM Number	1B9-202
Condition	Brand New
Material	Rubber+Steel
Warranty	1 Year
Payment	L/C T/T Western Union
Delivery	3-7 days after receiving payment

Technical Data
Cover Plate

Top Cover Plate Diameter:160(mm)

Bottom Cover Plate Diameter:160(mm)

Gas Hole/Air Inlet

Gas Hole/Air Inlet:G3/4

Blind Nut

Top Cover Plate Screw(Nut)Tooth:2XM8X1.25

Bottom Cover Plate Screw(Nut)Tooth:2XM8X1.25

Screw Center Distance Of Top Cover Plate:70(mm)

Screw Center Distance Of Bottom Cover Plate:70(mm)

Rubber Bellow

Rubber Bellows MAX Diameter: 222 (mm)

The Working Stroke:128(mm)

Air Spring

Air spring come in various shapes and sizes including bellows,rolling lobe,and sleeve.Super-Cushion bellows and sleeve springs have strict design specifications and parameters during manufacturing ensuring a perfect fit for your truck or industrial air spring application.

Air springs for your truck or trailer will offer a quiet, more cushioned ride resulting in greater comfort, peace of mind, and safety. Due to less vibration, truck and trailer suspension components will last longer while providing durability and improved protection from shock and vibration for the vehicle, passenger, and cargo.

As many of you already know, when used with leveling sensors or valves, Air springs can maintain consistent ride height regardless of the load applied. This results in less adjustment during every day activities such as keeping level with loading docks. Installation is also very universal and adding a Super-Cushion air bag will fit right in whenever you wish to add an axle.

Benefits for the Truck and Trailer

1.Reduces cab, truck body, and trailer damage
2.Reduces need for electrical and other repairs and maintenance
3.Reduces wear and tear on tires, axles, and transmissions
4.Reduces vehicle and fleet downtime
5.Extends life of truck and trailer
6.Protects hinges, lights, rivets, and trailer hardware
7.Provides greater comfort for the driver while decreasing fatigue
8.Bus and Train Air Springs

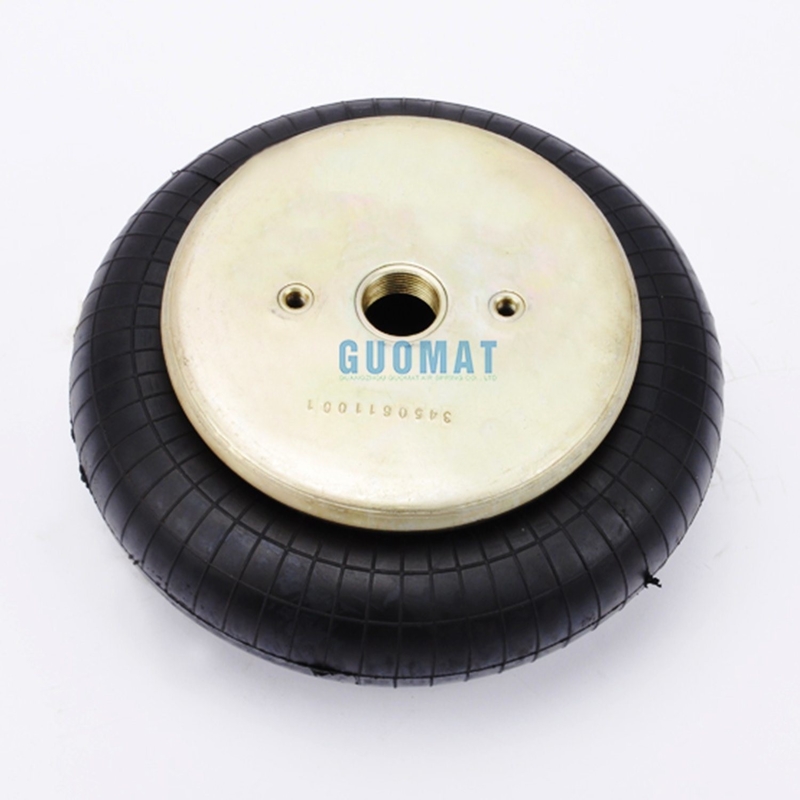

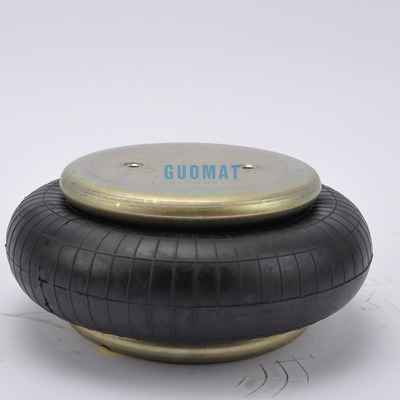

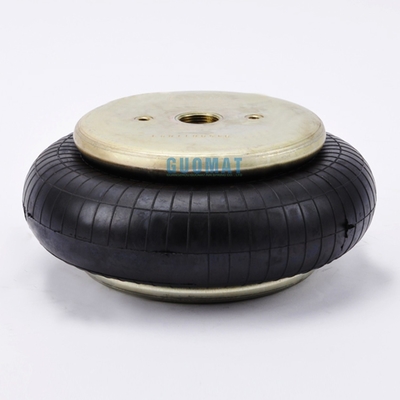

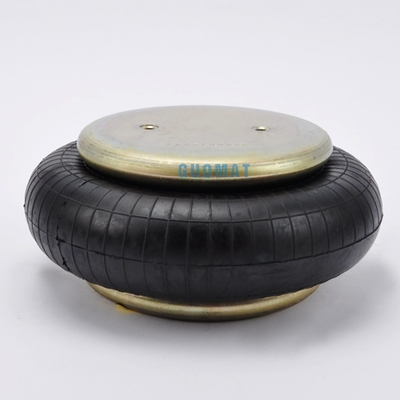

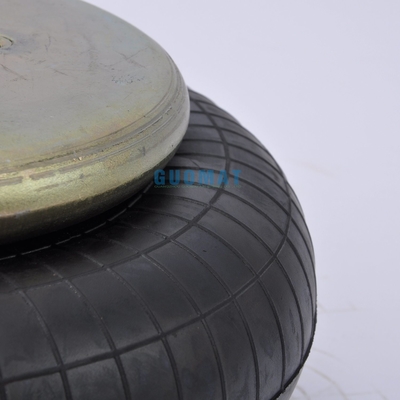

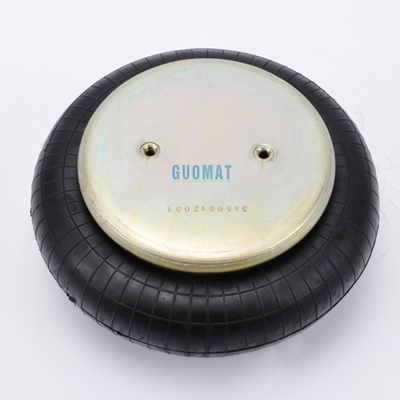

Product Picture
