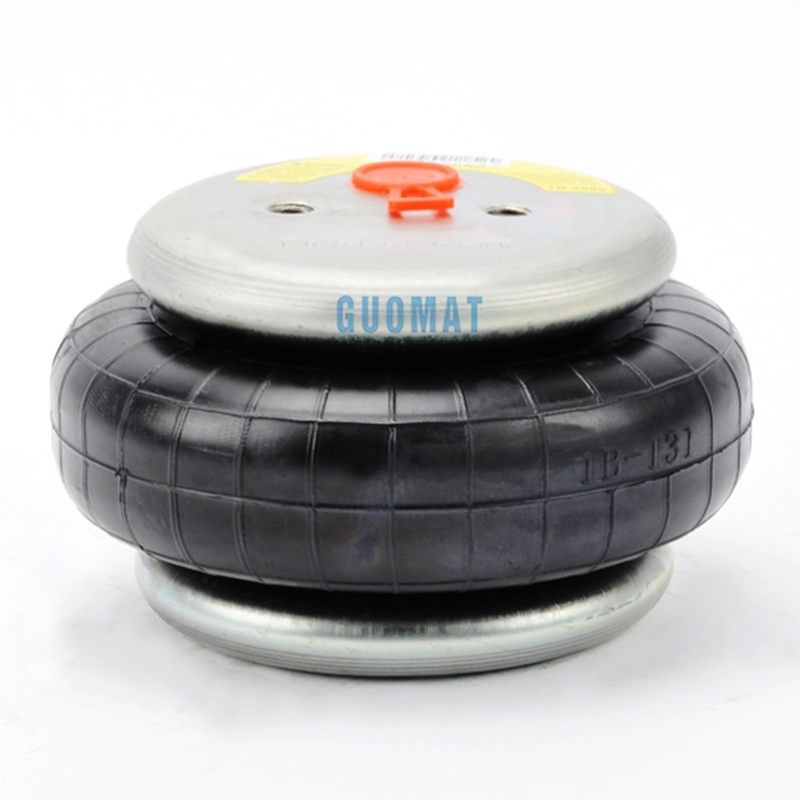

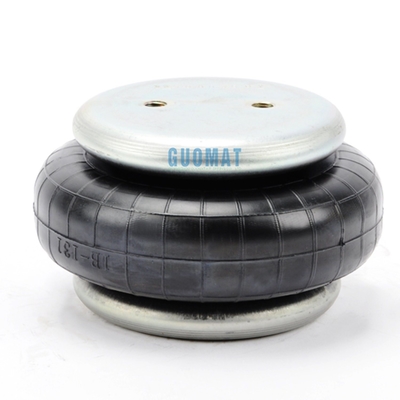

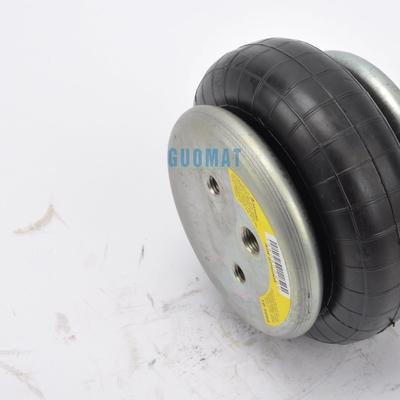

Durable Air Lift Bellows Air Strut Spring Bellow 131 Airbag Suspension Spring

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B 5080

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Condition:	Brand-New	Sample:	Available
Function:	Reduce Shock	Quality:	100% Tested
Gas Hole:	1/4NPTF	Threaded Hole:	M10
Max.Height:	120mm	Min.Height:	50mm
Highlight:	Suspension Air Strut Spring , 120mm Max.Height Air Strut Spring

Durable Air Lift Bellows Air Strut Spring Bellow 131 Airbag Suspension Spring

Air Spring

Air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.

As the air pressure increases, the air spring can support more load while the spring rate increases.The larger the air spring, the greater the maximum load it can support.

Air Suspension

Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs.Computer operated vents on the air springs, suspension sensors, and an onboard air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.

Item	Air Spring/Shock Absorber Spring/Air Bellows
Brand	Guomat/Neutral
Model Number	1B 131
Material	Rubber And Steel
Warranty	1 Year
MOQ	1 PCS If We Have Stock
Package	(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package
Delivery Time	2-8 Working Days
Payment	T/T, L/C, PayPal, Western Union
After Service	(1) Examination Before Shipment (2) Follow Up The Customers' Feedback

Fire-stone Bellow 1B131 Technical Data

Top View
Screw (Nut) Tooth:2XM10X1.5
Screw Center Distance:44.5mm
Air Inlet And Screw Diameter:22.2mm
Air Inlet:1/4 NPTF

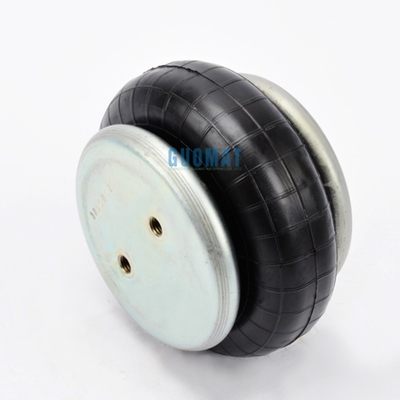

Bottom View
Screw (Nut) Tooth:2XM10X1.5
Screw Center Distance:44.5mm

Rubber Bellow
Rubber Bellow: MAX.165MM
The working Stroke:MAX 120mm to MIN 50mm
Maximum Height:120mm
Minimum Height:50mm
Compression Height:70mm

Company Information

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
