Industrial Air Springs 1B5171 Single Convoluted Air Shocks Absorber MAX. Height 160MM

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B 5171

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B 5171	Brand Name:	GUOMAT
Air Fitting:	1/4 NPT	MIN. Height:	55 MM
MAX. Height:	160 MM	Top Plate Hole/Stud Qty:	3×3/8-16 UNC
Bottom Plate Hole/Stud Qty:	4×3/8-16 UNC	Quality:	100% Tested
Highlight:	Industrial Air Springs 1B5171 , 160MM Height Industrial Air Springs

Industrial Air Springs 1B5171 Single Convoluted Air Shocks Absorber MAX. Height 160MM

Product Description

Rubber lining is a retractable inner mold with different shapes formed by the polymer properties of vulcanized rubber and high-strength fiber cloth. It is a product made of vulcanized rubber and fibers. It is compressive, elastic and airtight. After being filled with compressed air, the air bag will expand to meet the design requirements of its cross-section. Under the premise of ensuring quality, if it is used improperly, the service life of the air spring will be greatly shortened. Due to its low quality, good comfort and fatigue resistance, the rubber air spring has the advantages of long service life, vibration reduction and noise reduction. Widely used in, industrial machinery, instrumentation and other equipment.

1B5171 Air Ride Suspension Fit Technical Data

Cover Plate	Top Cover Plate Diameter:231mm
Cover Plate	Bottom Cover Plate Diameter:231mm
Air Inlet	1/4 NPTF
Blind Nut	Screw Center Distance Of Top Cover Plate:157.5mm
	Screw Center Distance Of Bottom Cover Plate:157.5mm
	Screw And Gas Hole Diameter Of Top Cover Plate:73mm
	Screw Center Distance Of Top Cover Plate:78.8mm
	Top Cover Plate Screw (Nut) Tooth:3X3/8-16UNC
	Bottom Cover Plate Screw (Nut) Tooth:4X3/8-16UNC
Rubber Bellow	Rubber Bellow MAX Diameter:325mm
	The Working Stroke:MAX 160mm to MIN 55mm
	Maximum Height:160mm
	Minimum Height:55mm
	Compression Height:105mm

Industrial Air Spring

The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.

1. The products features low cost, wide use and easy operation.

2. It achieves long service life, and requires no maintenance and lubrication.

3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.

4. It comes with no friction and soft medium.

What Are The Advantages of Our Shock Absorbers

Increase driving comfort
Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable

Lower fuel consumption and longer life
Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance

High stability
In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability

Six Reasons to Choose Us

1.Hight stability
2.In situ installation
3.Ride comfort
4.Safe and durable
5.Effective shock absorption
6.Reduce the sound

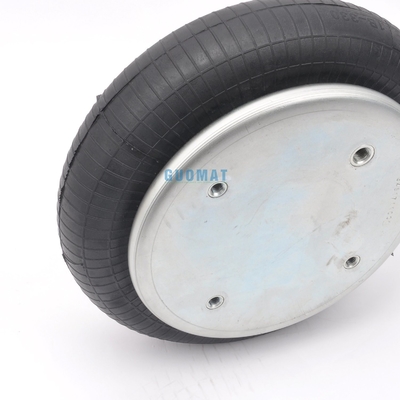

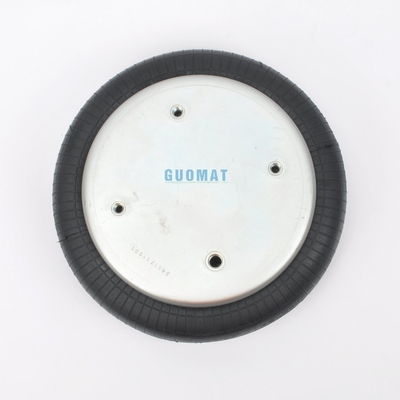

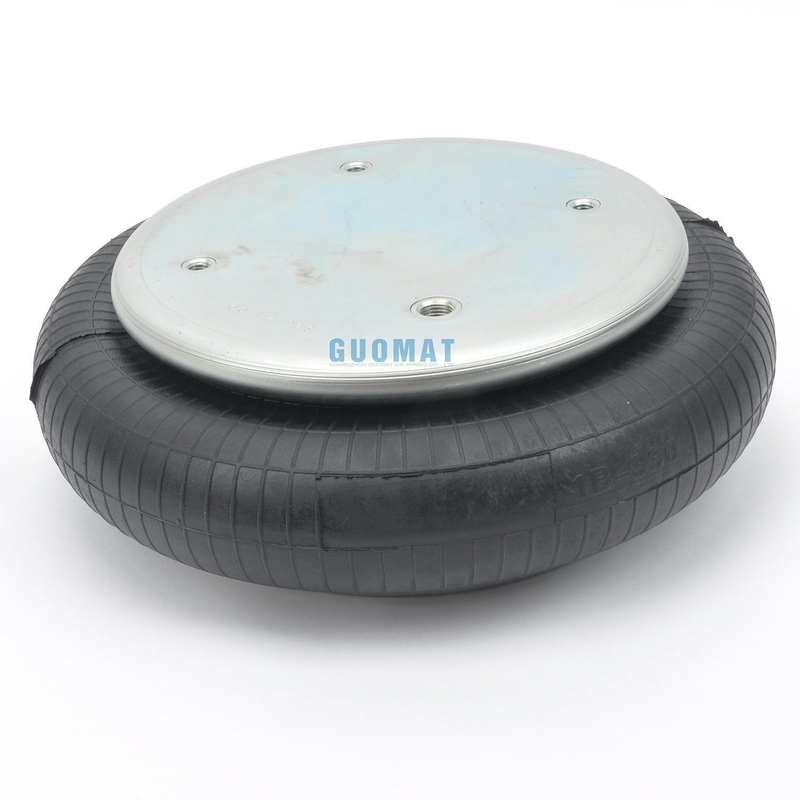

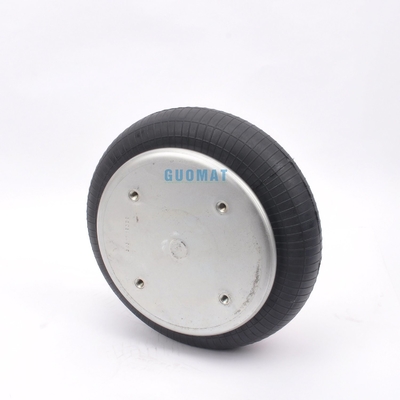

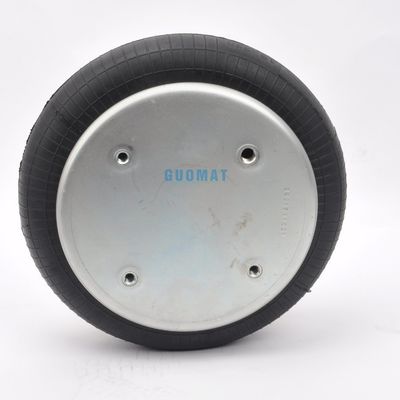

Product Picture
