Industrial Convoluted Air Spring Goodyear 1B8-550 90mm Rubber Bellows Type Air Bag

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B8X4

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

OEM Goodyear:	1B8-550	Condition:	Brand-New
Sample:	Available	After-sales Service:	1 Year
Type:	Gas-Filled	Firestone:	W01-358-7564
Contitech:	FS120-10	Max.Diameter:	230mm
Highlight:	Industrial Convoluted Air Spring , Convoluted Air Spring 1B8-550

Industrial Convoluted Air Spring Goodyear 1B8-550 90mm Rubber Bellows Type Air Bag

Product Description

Item: Univeral Single Convoluted Air Spring 1B8-550
OEM Number: Goodyear 1B8-550

OEM Number: Firestone W01-358-7564

OEM Number: Contitech FS120-10
Place Of Origin: Guangzhou,China
Material: Rubber+Steel
Function: Reduce Shock
Dimension: OEM/Original Size

1B8X4 Air Ride Suspension Fit Technical Data

Cover Plate	Top Cover Plate Diameter:135mm
Cover Plate	Bottom Cover Plate Diameter:135mm
Air Inlet	1/4-18NPT
Blind Nut	Screw Center Distance Of Top Cover Plate:70mm
	Screw Center Distance Of Bottom Cover Plate:70mm
	Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
	Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Rubber Bellow	Rubber Bellow MAX Diameter:220mm
Rubber Bellow	The Working Stroke:109mm

Deflection(Height min):50mm
Deflection(Height max):140mm
Working stroke:90mm
Measurement d max:230mm

What are the sdvantages of our shock absorbers

Increase driving comfort
Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable

Lower fuel consumption and longer life
Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance

High stability
In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability

Six Reasons to choose us

1.Hight stability
2.In situ installation
3.Ride comfort
4.Safe and durable
5.Effective shock absorption
6.Reduce the sound

Warning and Tips

Maintenance of the air springs, Vehicle Check-List

1.Check the air lines and devices of leakage and that they turns freely.
2.Check the bellows bearing for damage, correct fastening, deformation, sharp edges.
3.Check the shock absorbers for operation and impermeability as well as tightness and bearing.
4.Periodically, check nuts and bolts for proper torque. For specific recommendations see manufacturer's manual.
5.Check axle suspension, trailing arms and rods for wear.
6.Check height control valve to see that it is functioning properly. A properly maintained valve will save unneeded maintenance expense.
7.Routine inspection of all of the above according to manufacturer's instructions, will extend the life of your vehicle and reduce your overall maintenance expense.

Air Spring Installation

1.Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
2.Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
3.If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.

Important tips to remember when installing a new unit

1.Check levelling valve, linkage and transmission parts for wear and damage and if necessary replace the damaged parts.
2.Check that the shock absorber for leakages and take a shock absorber test. A defective shock absorber must be replaced.
3.Once the air lines are disconnected, check their entire length for cracks or other damage. Replace worn parts.
4.With the air spring removed, other parts of the air suspension become more accessible. Check for wear or damage of the frame hangers, trailing arm bushings, torque rods, the trailing arms and the air spring mounts. When it is necessary, also replace parts.
5.Check bearing for air spring bellow for external damage, deformation, sharp edges and correct fastening.
6.Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to the suspension.
7.Always use new attaching bolts for the installation and observe the tightening torques. Never use old bolts, because these can fall out.
8.Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage should move from the neutral position up to the intake position. This lets air into the springs, which brings the arm back to the neutral position. This lets air into the springs, which brings the arm back to the neutral position. That opens the exhaust valve, allowing air to escape until the arm returns to the neutral position. Then check the driving level.

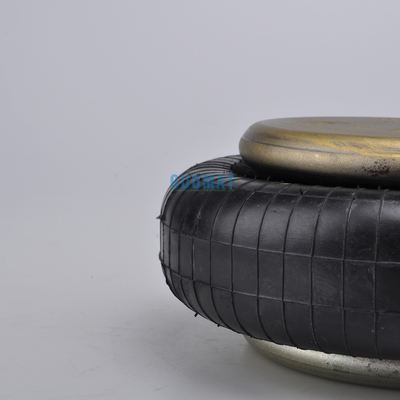

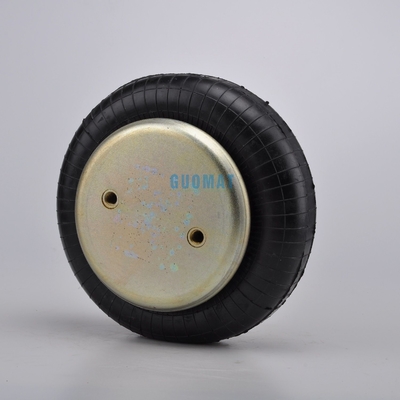

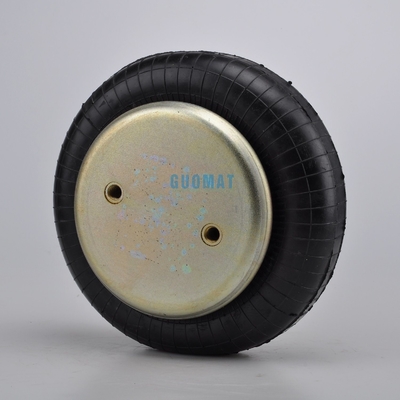

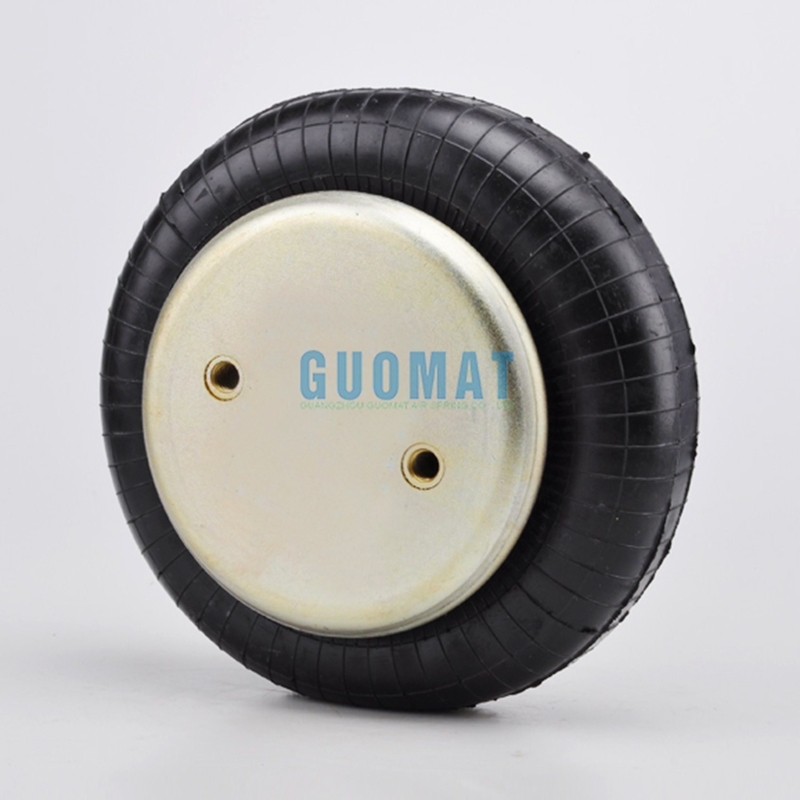

Product Picture
Industrial Convoluted Air Spring Goodyear 1b8-550 90mm Rubber Bellows Type Air Bag
