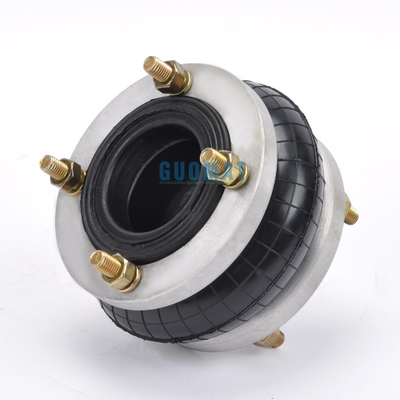

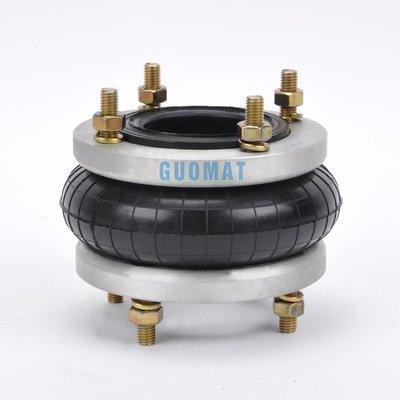

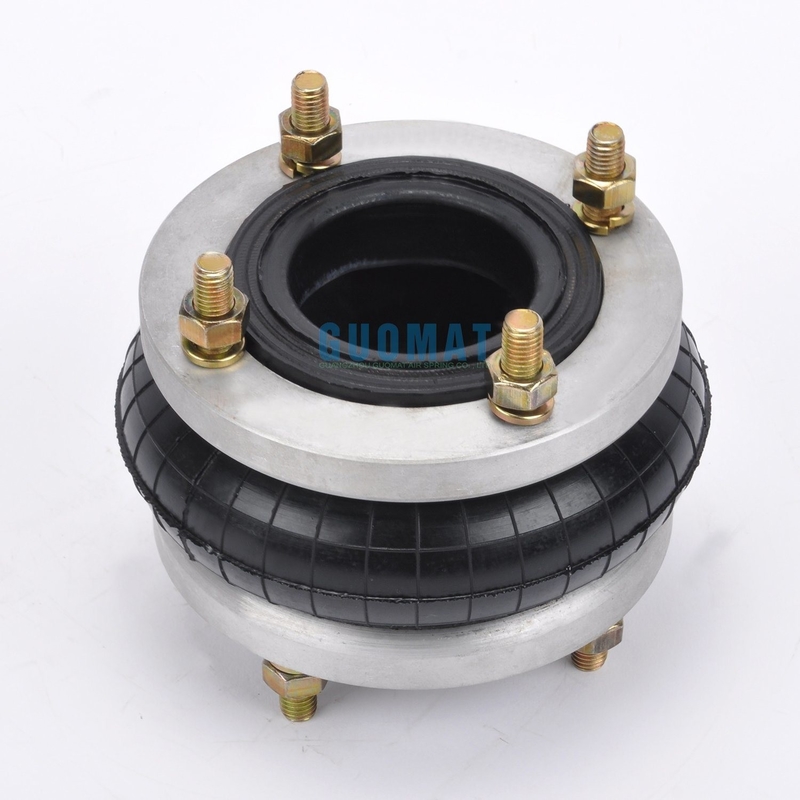

150076H-1 0.8 Mpa Industrial Single Bellows Type Convoluted Suspension Air Spring With Flange

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	150076H-1

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Structure:	Single Convoluted	Condition:	Brand-New
Sample:	Available	Quality:	100% Tested
Position:	Front/Rear	Type:	Gas-Filled
Connection:	Flange Connection	Color:	Black
Highlight:	0.8 Mpa Industrial Air Spring , 150076H-1 Industrial Air Spring

150076H-1 0.8 Mpa Industrial Single Bellows Type Convoluted Suspension Air Spring With Flange

Product Description

150076H-1 Technical Detailed Data

Cover Plate
Top Cover Plate Diameter:133mm
Bottom Cover Plate Diameter:133mm

Gas Hole/Air Inlet/Air Hole
Gas Hole/Air Inlet /Air Hole:---

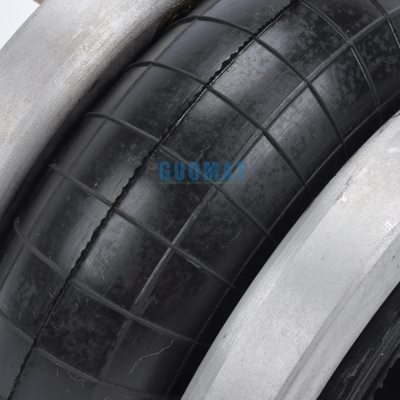

Rubber Bellows
Rubber Bellows MAX Diameter:160mm
The Working Stroke:MAX 85 mm to MIN 46mm
Maximum Height:85mm
Minimum Height:46mm
Stroke Height:39mm

Blind Nut
Top Cover Plate Screw(Nut):4pcsxM10
Bottom Cover Plate Screw(Nut):4pcsxM10
Top Cover Plate Screw(Nut) Distance:109mm
Bottom Cover Plate Screw(Nut) Distance:109mm

150076H-1 Technical Parameters Table

Bearing Capacity (Kg)	Inflation Pressure		0.2Mpa	0.3Mpa	0.4Mpa	0.5Mpa	0.6Mpa
	Installation Height
	45	(mm)	436	579	718	860	1008
	55	(mm)	299	428	570	700	830
	65	(mm)	226	335	451	565	670
	76	(mm)	164	258	344	435	526
	85	(mm)	122	190	254	330	399
	95	(mm)	58	94	133	174	220
Stiffness And Frequency At Design Height	Vertical Stiffness	(Kg/cm)	107	150	187	231	265
	Natural frequency	Hz	4.05	3.82	3.69	3.65	3.55
	Natural frequency	cpm	243	229	221	219	213

Bearing Capacity (Kg)	Inflation Pressure		0.7Mpa	0.8Mpa	0.7Mpa Volume(dm³)
	Installation Height
	45	(mm)	1155	1301	0.37
	55	(mm)	963	1088	0.46
	65	(mm)	782	906	0.57
	76	(mm)	621	720	0.67
	85	(mm)	475	544	0.75
	95	(mm)	263	308	0.87
Stiffness And Frequency At Design Height	Vertical Stiffness	(Kg/cm)	303	319
	Natural frequency	Hz	3.50	3.33
	Natural frequency	cpm	210	199
