| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 188102H-1 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD29.9-39.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Structure: | Single Convoluted | Brand: | Guomat / Neutral |
|---|---|---|---|
| Condition: | Brand-New | Sample: | Available |
| Function: | Reduce Shock | Quality: | 100% Tested |
| Transport Package: | Cartons | Spring Material: | Rubber |
| High Light: | Single Convoluted Type Air Suspension Spring,188102H-1 Air Suspension Spring,Air Suspension Spring With Flange |
||

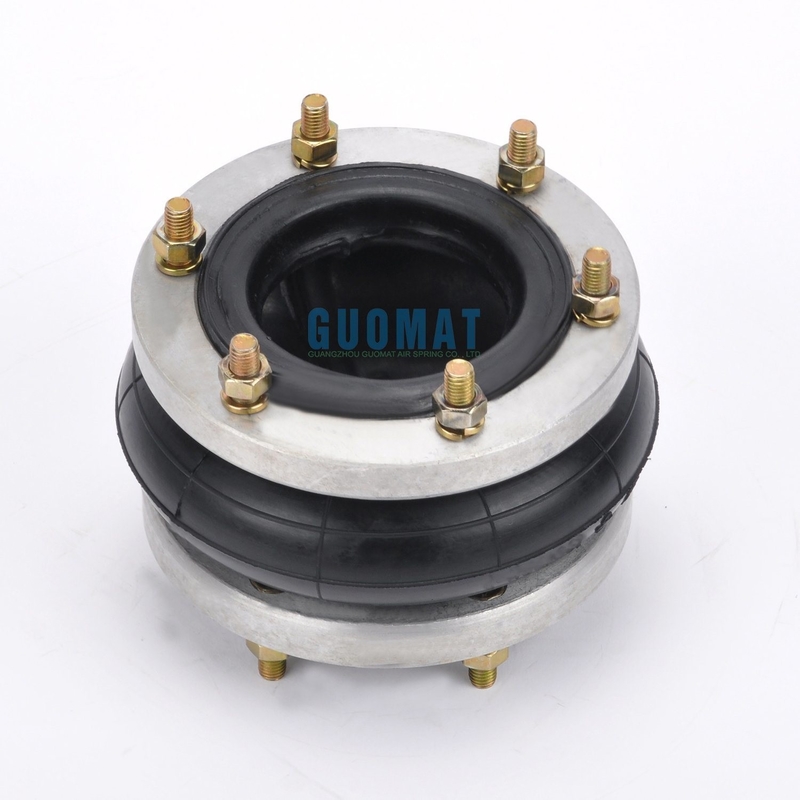

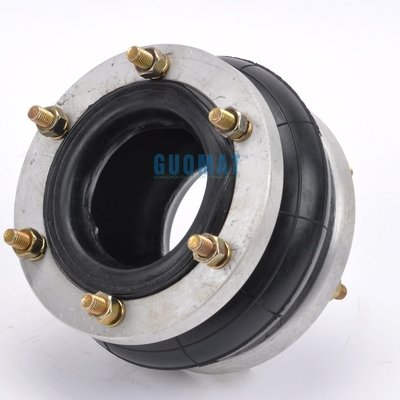

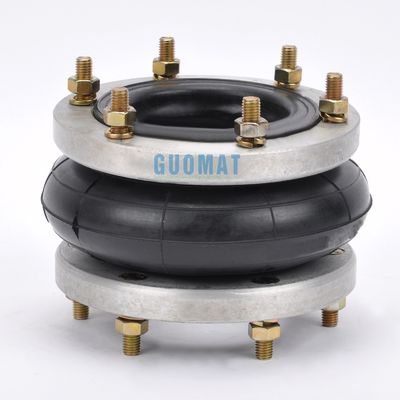

Universal Air Bags Single Convoluted Type Air Suspension Spring With Flange
1.Top Cover Plate Diameter:175mm
2.Bottom Cover Plate Diameter:175mm
3.Nut(Screw) of the Top Cover Plate:6pcsxM10
4.Nut(Screw) of the Bottom Cover Plate:6pcsxM10
5 .Center Distance Between Nut:141mm
6.Rubber Bellows:MAX Diameter 210mm
7.The Working Stroke:MAX 115mm to MIN 52mm
8.The Maximum Height:115mm
9.The Minimun Height:52mm
8.Stroke Height:63mm
10.Spring Natural Height:102mm
11.Part Weight:2.25KG
| Inflation Pressure | 0.2Mpa | 0.3Mpa | 0.4Mpa | 0.5Mpa |
| Installation Height(mm) | --- | --- | --- | --- |
| 52 | 540 | 799 | 1072 | 1331 |
| 65 | 466 | 690 | 931 | 1176 |
| 78 | 383 | 570 | 774 | 999 |
| 91 | 290 | 451 | 609 | 799 |
| 102 | 208 | 328 | 456 | 587 |
| 117 | 141 | 233 | 320 | 434 |
| 130 | 44 | 96 | 163 | 229 |
| Vertical Stiffness(Kg/cm) | 109 | 156 | 191 | 239 |
|
Natural frequency(cpm) |
3.62 | 3.45 | 3.24 | 3.19 |
| 217 | 207 | 194 | 191 |
| Inflation Pressure | 0.6Mpa | 0.7Mpa | 0.8Mpa |
0.7Mpa Volume (dm3) |
| Installation Height(mm) | --- | --- | --- | --- |
| 52 | 1590 | 1871 | 2137 | 0.64 |
| 65 | 1420 | 1680 | 1926 | 1.04 |
| 78 | 1214 | 1450 | 1664 | 1.36 |
| 91 | 979 | 1175 | 1352 | 1.60 |
| 102 | 726 | 865 | 1008 | 1.73 |
| 117 | 533 | 647 | 757 | 1.86 |
| 130 | 296 | 370 | 451 | 1.99 |
| Vertical Stiffness(Kg/cm) | 276 | 320 | 366 | |
|
Natural frequency(cpm) |
3.09 | 3.05 | 3.01 | |
| 185 | 183 | 180 |
| 1. Q: How to order ? A: Step 1, please tell us what model and quantity you need; Step 2,then we will make a PI for you to confirm the order details; Step 3,when we confirmed everything ,you can arrange the payment; Step 4,finally we deliver the goods within the stipulated time. |
| 2. Q: When will make delivery ? A: Delivery time is 2-8woring days. |
| 3. After-sales service 1 year warranty for all kinds of products; If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service. |
| 4. Payment T/T,Western Union,L/C |
| 5. Transportation Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight. |
