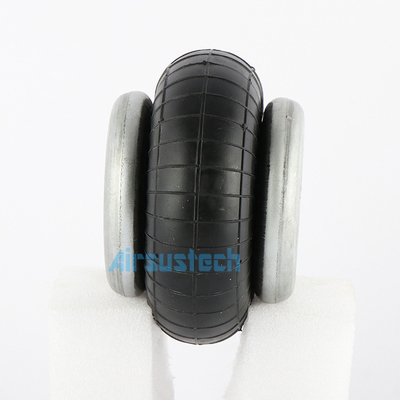

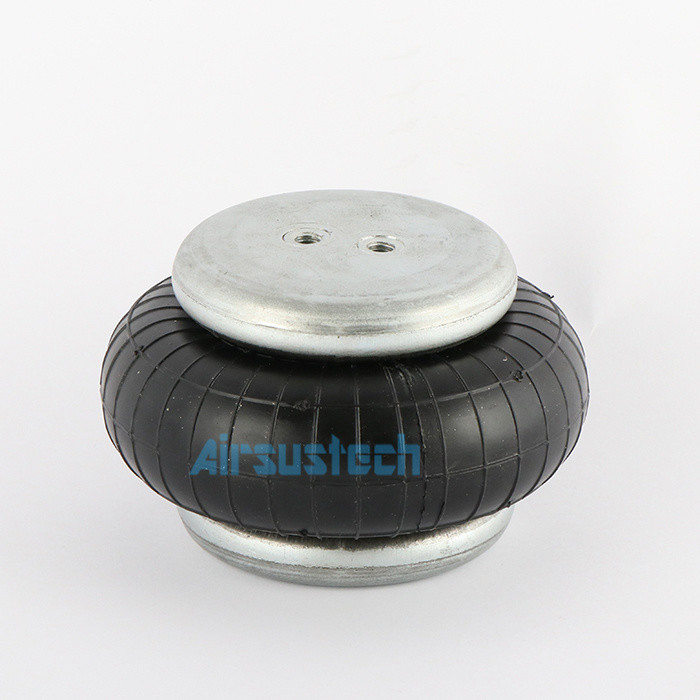

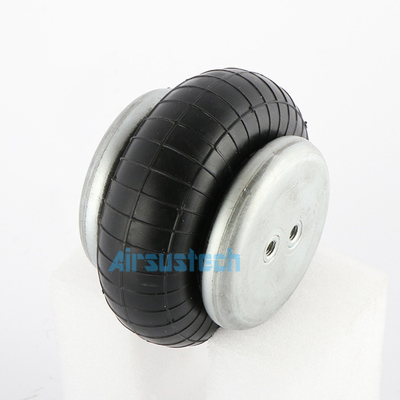

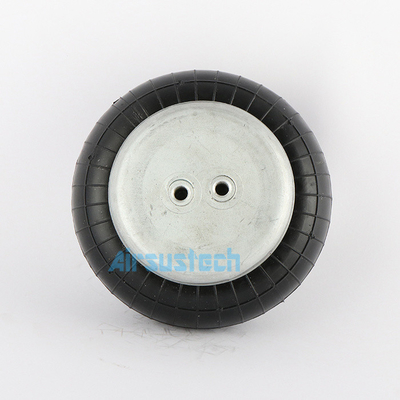

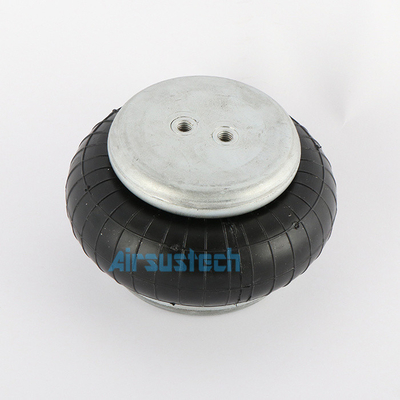

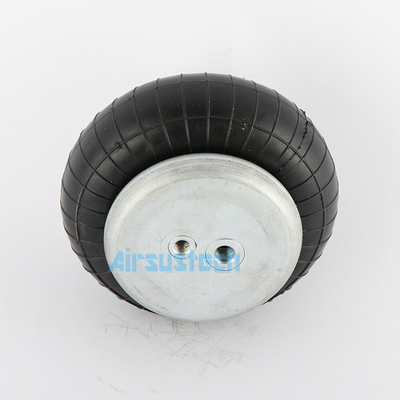

Good Quality Rubber Contitech FS 40-6 1/8 MB Air Spring SP1B04 Phoenix Air Balloon

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B4060

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Part:	Air Springs Bellows Actuator	Shock Absorber Type:	Gas-Filled
Sample:	Available	Quality:	100% Tested
After-sales Service:	12 Months	Contitech Part No.:	FS 40-6 1/8 M8
Phoenix:	SP1B04	Packing Size:	242424(cm)
Highlight:	Air Spring SP1B04 , Phoenix Air Balloon Rubber Air Spring

Good Quality Rubber Contitech FS 40-6 1/8 MB Air Spring SP1B04 Phoenix Air Balloon

The detailed Specifications and techical data

The Max. Diameter	145mm
Air hole/air inlet	G1/8
Working stroke	maximum 110 mm to minimum 50 mm
Top plate screw (nut) teeth	M8×1.25
Bottom plate screw (nut) teeth	2 x M8×1.25
Top cover diamete	90 mm
Bottom cover diameter	90 mm
Screw center distance	20 mm
The air hole distance between the nuts	together

OEM Number:

Contitech	FS 40-6 1/8 M8
Contitech	FS406 1/8 M8
Contitech	FS 406 1/8 M8
Phoenix	SP 1 B 04
Phoenix	SP1B 04
Phoenix	SP1B04
Weforma	WBE 100-E1
Weforma	WBE 100E1

The competitive advantage of the product

1. The product quality is excellent, natural rubber imported from Thailand, combined with German technology.

2. For products with the same price in the market, Gaomat strives for better quality. For products of the same quality, Gaomat strives for lower prices.
3. More than ten years of production technology, products cover the world.

Pneumatic application – static characteristic values
Force F [lbf]
