Goodyear 1B9-202 578913201 Air Bags 1/4 NPT Air Fitting Air Shock Absorption

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B6910-1

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Supply Ability:	1000PC/Week

Contact Now

Detailed Product Description

Trademark:	GUOMAT	Product NO.:	1B6910-1
Design Height:	128 MM	Gas Fitting:	1/4-18 NPT
Cover Plate:	160 MM	Material:	Rubber+ Stainless
Warrantly:	12 Months	Place Of Origin:	Guangzhou, China
Highlight:	578913201 Air Bags , 1B9-202 Air Bags

Goodyear 1B9-202/578913201 Air Bags 1/4 NPT Air Fitting Air Shock Absorption

Product Description

Expertly designed to provide superior performance and versatility for a wide range of applications. At the heart of its robust construction is a crimped assembly that ensures enhanced strength and durability. This is complemented by a convoluted bellow, meticulously crafted from Natural Rubber. This material is renowned for its exceptional dynamic capabilities and excellent universal properties, making our actuator not only powerful but also adaptable to a variety of operating conditions.

Product Information

Air Hole	1/4-18 NPT	Bottom Cover Plate	160 mm
Design Height	110 mm	Screw Center Distance	89 mm
Minimum Height	60 mm	Distance Gas Hole Between Nut	44.5 mm
Maximum Height	128 mm	Top Plate Hole/Stud Qty	2×3/8-16 UNC
Top Cover Plate Diameter	160 mm	Bottom Plate Hole/Stud Qty	2×3/8-16 UNC

OEM NO.

Goodyear	1B9-202, 1B9 202, 1B9202
Goodyear	578913201, 578-91-3-201, 578 91 3 201

Product Core Competitiveness
1. Imported rubber
It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.

2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.

3. Ensure in-situ installation
The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.

4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.

FAQ

Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.

Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.

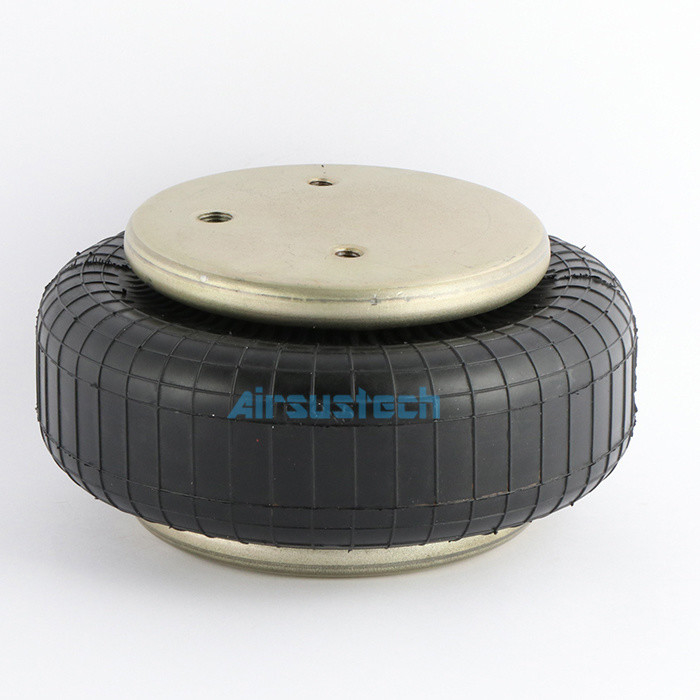

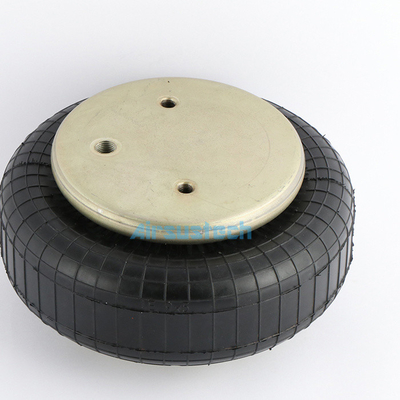

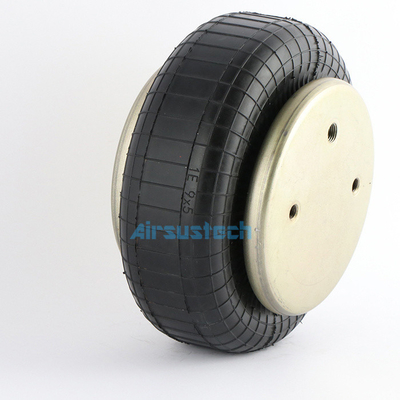

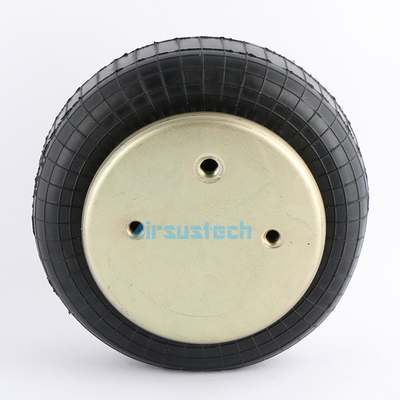

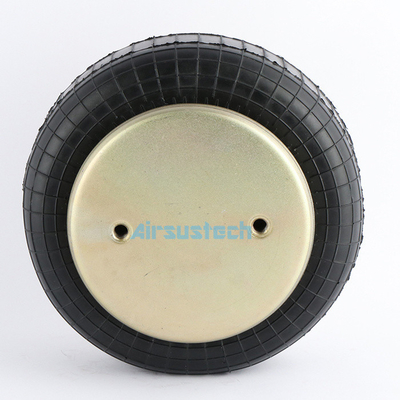

The Real Picture

Goodyear 1B9-202 578913201 Air Bags 1/4 NPT Air Fitting Air Shock Absorption 0
