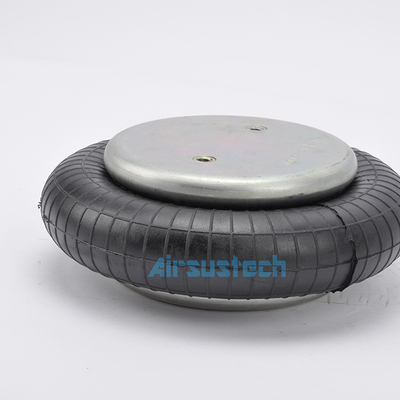

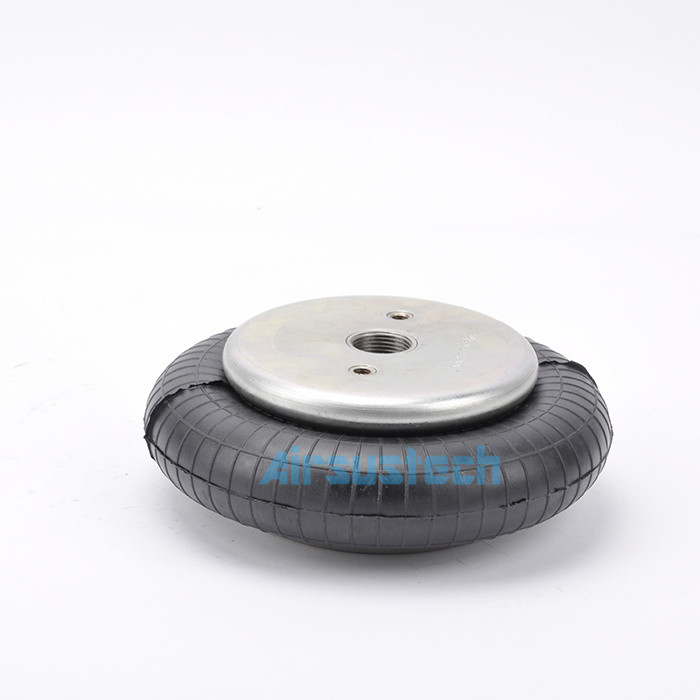

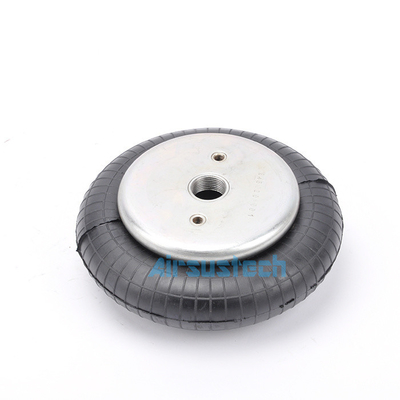

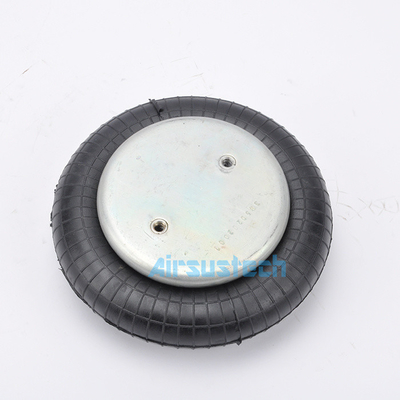

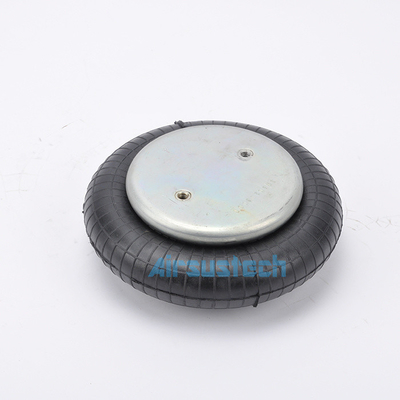

Single Rubber Convoluted Air Spring W01-M58-6165 Firestone Air Bags Festo EB-215-80

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B1209

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model:	Single Convoluted Air Spring	Spring Material:	Rubber+Steel
Fuction:	Reduce Shock	Contitech:	FS 120-9
Air Connection:	G3/4	Firestone:	W01-M58-6165
Application:	For Electronic Equipment	Norgren:	PM/31081(8x1)
Highlight:	Single Rubber Convoluted Air Spring , W01-M58-6165 Rubber Convoluted Air Spring

Single Rubber Convoluted Air Spring W01-M58-6165 Firestone Air Bags Festo EB-215-80

OEM NO.

Cotitech	FS 120-9
Cotitech	FS120-9
Cotitech	FS 120 9
Cotitech	FS120 9
Dunlop(FR)	8''1S08101
Dunlop(FR)	8''1 S08101
Bos ch	8224 19003
Bos ch	822419003
Fes to	EB-215-80
Fes to	EB 215 80
Fes to	EB215 80
Fes to	EB21580
Weforma	WBE 300-E1
Weforma	WBE 300 E1
Weforma	WBE300-E1
Weforma	WBE300 E1
Weforma	WBE300E1
Fire stone	W01-M58-6165
Fire stone	WO1M586165
Fire stone	WO1-M58-6165
Fire stone	W01M586165
Norgren	PM/31081(8×1)
Airtech	140293
Airtech	111003
Airtech	1B-190FB
Megatech	1S120-9 3/4 M8
Megatech	1S120 9 3/4 M8
Megatech	1S120 9 3/4M8

Specifications and Detailed Technical Parameters:AIRSUSTECH 1B1209

Nut/blind nut

Top plate screw (nut) teeth: 2XM8x1.25

The screw center distance of the top cover plate: 70mm

Screw (nut) teeth of the bottom cover plate: 2XM8x1.25

The screw center distance of the bottom cover plate: 70 mm

Air hole/air inlet/air fittings

Air hole/air inlet: G3/4

The screw center distance between the air hole and the nut: 30mm

Cover plate

Top plate diameter: 135 mm

Diameter of the bottom cover: 135 mm

Bell rubber bellows

Maximum diameter of rubber bellows: 215 mm

Natural diameter of rubber bellows: 90 mm

Working stroke: minimum 50 mm to maximum 115 mm

Maximum height: 115 mm

Minimum height: 50 mm

Bumper block/bumper block

No bumper block

Belt loop/Belt loop

With belt loop: No belt loop

Why can rubber air spring replace pneumatic or hydraulic cylinder block

Low design height: Compared to conventional cylinders, the airbag air spring has no piston rod, which greatly reduces the design height and makes the structure more compact.

Low purchase cost: compared with the traditional cylinder, the airbag air spring not only has low purchase cost, but also can be reduced due to its long service life and no maintenance.

Economical and simple installation: when not inflated, the air bag spring installation is simple and quick, thus saving time and cost. Moreover, the product has good elasticity and can compensate for small offset.

Allow transverse eccentricity: the air bag air spring transverse eccentricity up to 30mm, in this can still maintain the reliability of the work. Unlike cylinders or hydraulic cylinders, airbag cylinders do not have seals that can jam or wear out, and they do not require the installation of sophisticated guides susceptible to dust and other impurities.

Friction-free, maintenance-free: even in poor working conditions, the air bag spring can work effectively. Because there are no friction parts (seals) in the air bag cylinder, it will not wear even in the environment of dust, particles or precipitation.
