HF80/90-1 Air Spring Bellows Air Bag Double Convoluted Rubber Air Shock Absorption

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	HF80/90-1

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	HF80/90-1	Structure:	Double Convolution
Quality:	100 % Tested	Fuction:	Reduce Shock
Trademark:	GUOMAT	Warranty:	12 Months
Operation:	Gas-Filled	Sample:	Available \| Customized Request
Highlight:	HF80/90-1 Air Spring , Double Convoluted Rubber Air Spring

HF80/90-1 Air Spring Bellows Air Bag Double Convoluted Rubber Air Shock Absorption

HF80/90-1 Technical parameters

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth	/
Top Cover Plate Screw (Nut)	/
Bottom Cover Plate Screw (Nut) Tooth	/
Screw Center Distance of Bottom Cover Plate	/
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet	/
Cover Plate
Top Cover Plate Diameter	/
Bottom Cover Plate Diameter	/
Rubber Bellows
Rubber Bellows MAX Diameter	150 mm
Rubber Bellows Natural Diameter	120 mm
The Working Stroke	MAX 130mm to MIN 50 mm
Maximum Height	130 mm
Minimum Height	50mm
Stroke Height	80 mm
Bumper block / Buffer block
With Bumper Block Or Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop

Other types

HF80/90-1, HF80/142-2, HF95/70-1, HF100/166-2, HF100/238-3, HF104/66-1, HF115/77-1, HF120/132-2, HF125/112-1, HF150/140-2, HF170/120-1, HF174/126-1, HF180/156-1, HF180/152-2, HF190/170-2, HF190/248-3, HF208/90-1, HF230/116-1, HF230/120-1, HF230/140-2,
HF240/100-1, HF240/165-2, HF250/255-2, HF264/90-1, HF290/105-1, HF300/255-2, HF310/160-1, HF320/203-2

FAQ
Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.

Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.

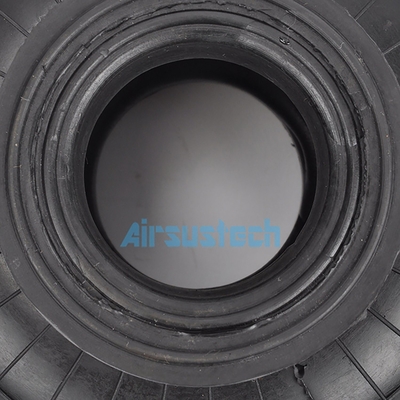

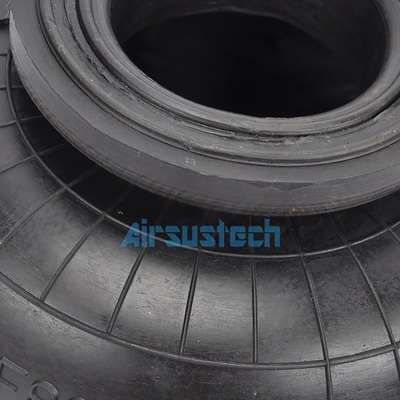

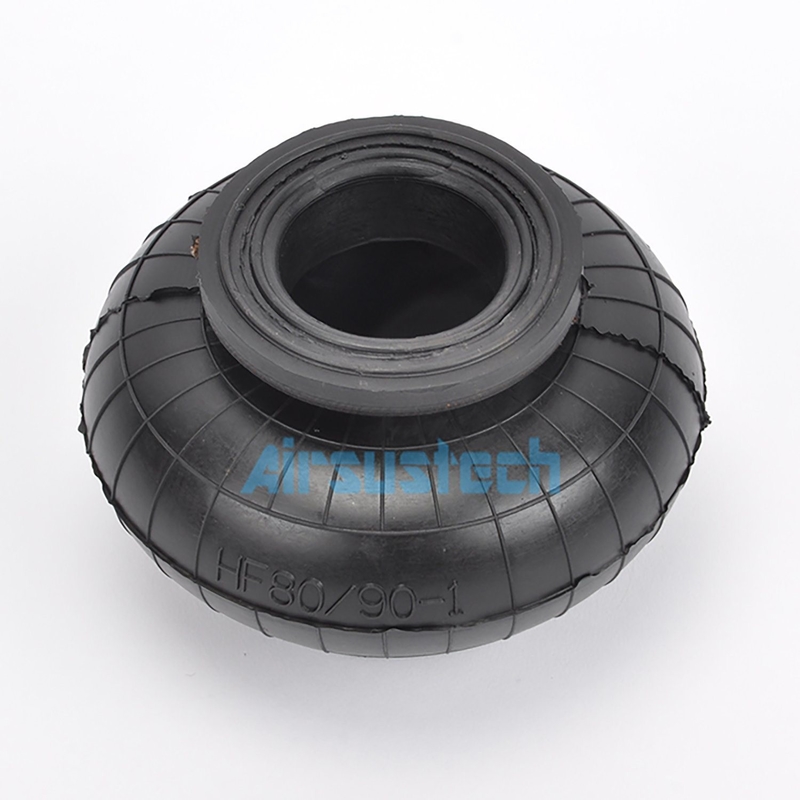

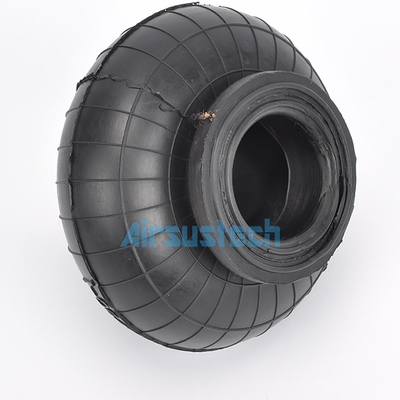

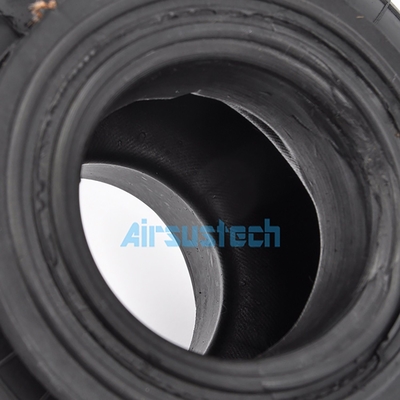

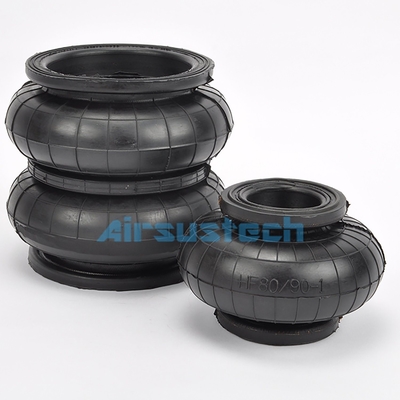

The related picture of HF80/90-1

HF80/90-1 Air Spring Bellows Air Bag Double Convoluted Rubber Air Shock Absorption 0
