150076H-1 Industrial Air Springs with Flange Ring Single Convoluted Air Shocks

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	150076H-1

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	150076H-1	Spring Material:	Rubber
Damping Force Direction:	Bidirectional	Fuction:	Reduce Shock
Trademark:	GUOMAT	Origin:	Guangzhou, China
After-sales Service:	12 Months	Type:	Gas-Filled
Highlight:	150076H-1 Industrial Air Springs , Industrial Air Springs with Flange Ring

150076H-1 Industrial Air Springs with Flange Ring Single Convoluted Air Shocks

Specifications and Detailed Technical Parameters: 150076H-1

Model

Nominal

diameter

The largest

diameter

(0.7MPA)

Bearing capacity at

design height

Stroke

Weight

Natural frequency

(0.7MPA)

0.2MPA

0.5MPA

0.7MPA

Minimum compression height

Height of safe elongation

150076H-1

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4×M10
Top Cover Distance Plate Screw (Nut) :109MM
Bottom Cover Plate Screw (Nut) Tooth :4×M10
Screw Center Distance of Bottom Cover Plate : 109MM

Gas Hole / Air inlet / Air Fitting

Gas Hole/ Air inlet/

Cover Plate

Top Cover Plate Diameter:133MM
Bottom Cover Plate Diameter: 133MM

Rubber Bellows

Rubber Bellows MAX Diameter: 160 mm
Rubber Bellows Natural Diameter :140 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

Without Girdle Hoop :NO Pieces of Girdle Hoop

Bearing Capacity (Kg)	Inflation Pressure		0.2Mpa	0.3Mpa	0.4 Mpa	0.5 Mpa	0.6 Mpa	0.7 Mpa	0.8 Mpa	0.7 MPa Volume (dm³)
	Installation Height
	45 mm		436	579	718	860	1008	1155	1301	0.37
	55 mm		299	428	570	700	830	963	1088	0.46
	65 mm		226	335	451	565	670	782	906	0.57
	75 mm		164	258	344	435	526	621	720	0.67
	85 mm		122	190	254	330	399	475	544	0.75
	95 mm		58	94	133	174	220	263	308	0.87
Stiffness And Frequency At Design Height	Vertical Stiffness(Kg/cm)		107	150	187	231	265	303	319
	Natural frequency	Hz	4.05	3.82	3.69	3.65	3.55	3.50	3.33
	Natural frequency	cpm	243	229	221	219	213	210	199

Other types:
150076H-1; 188102H-1; 260130H-1; 280126H-1; 360306H-1; 3B400316

FAQ

Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

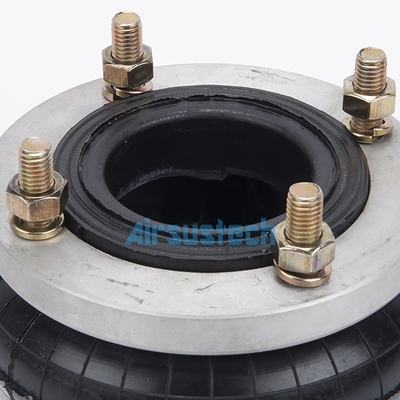

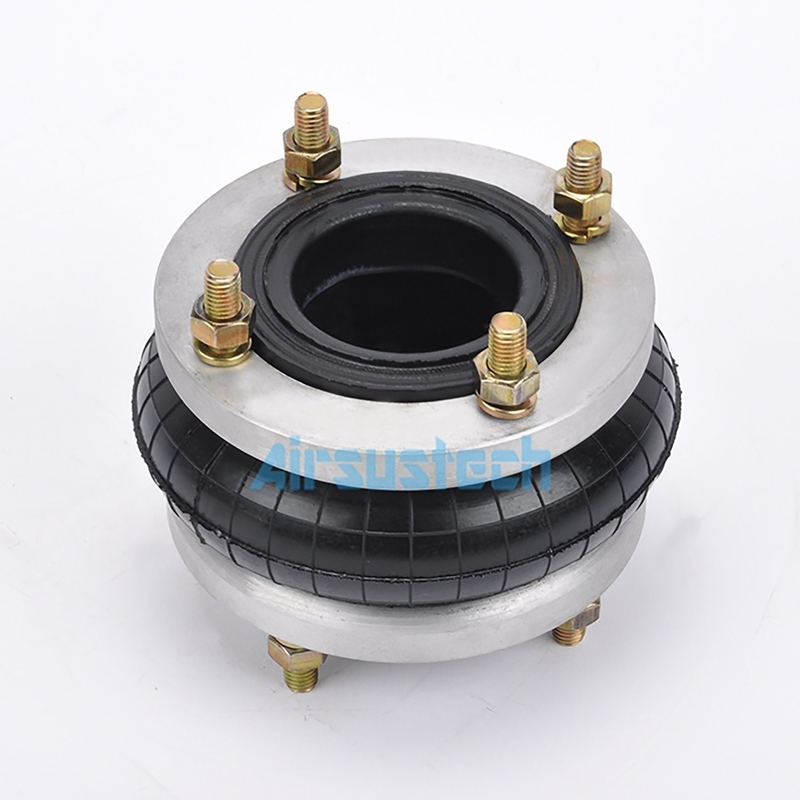

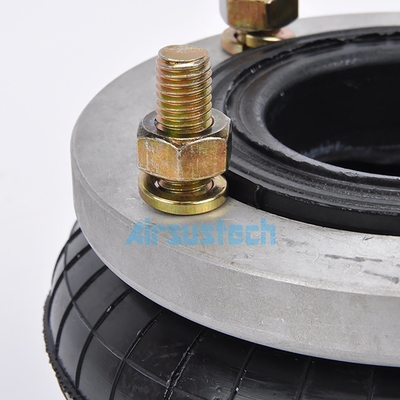

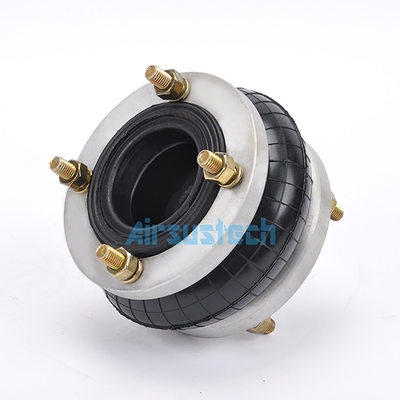

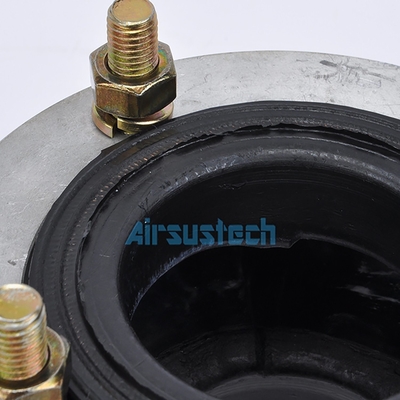

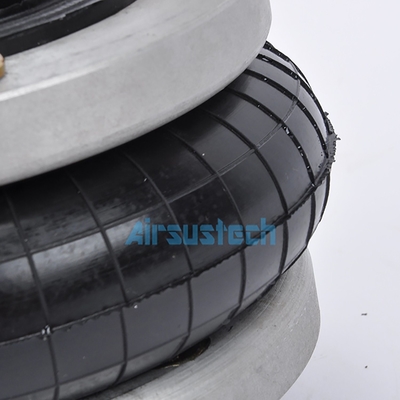

The related picture of 150076H-1
Flange Industrial Air Springs 150076h-1 One Single Rubber Bellow
