Rubber One Convoluted Firestone W01-358-7103 1/4 Gas Filled Air Spring

Rubber One Convoluted Fire stone W01-358-7103 1/4 Gas Filled Air Spring

Refer No.

Specifications and Detailed Technical Parameters:AIRSUSTECH 1B53014

• Nut/blind nut

Top plate screw (nut) teeth: 4X3/8-16UNC

The screw center distance of the top cover plate: 158.8mm

Screw (nut) teeth of the bottom cover plate: 4X3/8-16UNC

The screw center distance of the bottom cover plate: 158.8 mm

• Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF

• Cover plate

Top plate diameter: 289 mm

Diameter of the bottom cover: 289 mm

• Bell rubber bellows

Maximum diameter of rubber bellows: 406 mm

Natural diameter of rubber bellows: 350 mm

Working stroke: minimum 81 mm to maximum 160 mm

Maximum height: 160 mm

Minimum height: 81 mm

• Bumper block/bumper block

No bumper block

• Belt loop/Belt loop

With belt loop: No belt loop

1B14-350 Goodyear Air Spring Information:

Part Number: 1B14-350

Bellows Number: 578-91-3-351

Bellow Type: Single
Automann Bellow #: SP1B34A
Triangle Bellow #: 6326
Top Plate Hole/Stud Qty: 4
Top Plate Dia: 11.3
Top Plate C to C Diameter: 6.25
Bottom Plate Hole Stud Qyt: 4
Bottom Plate Dia: 11.3
Bottom Plate C to C Diameter: 6.25
Bottom Plate Alignment: Parallel
Bumper: No
Min Height: 2.3
Max Height: 7.2

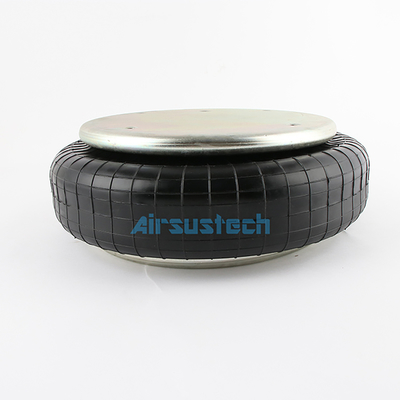

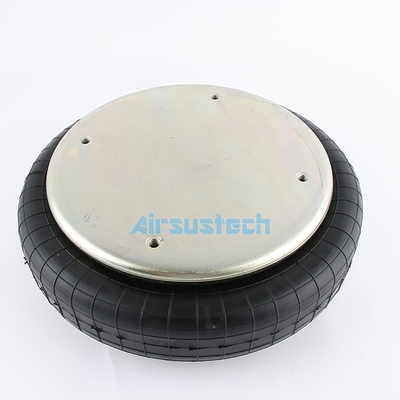

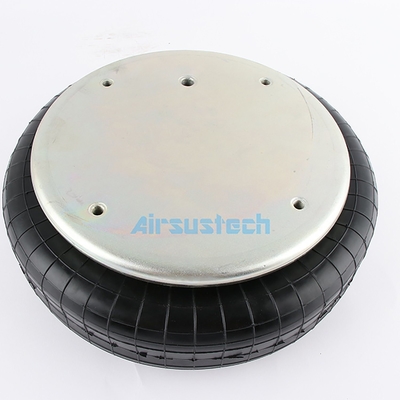

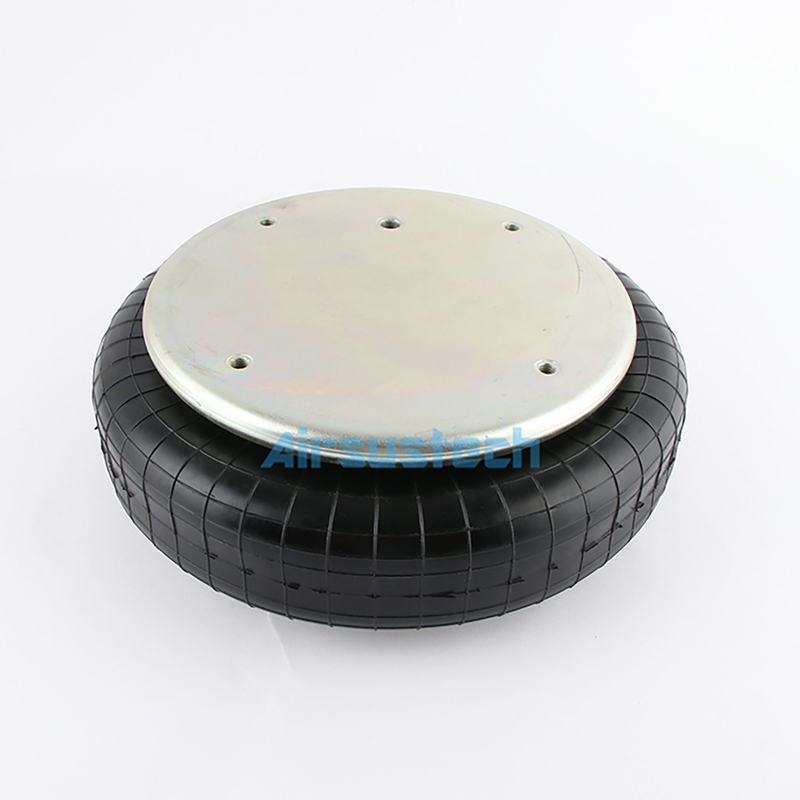

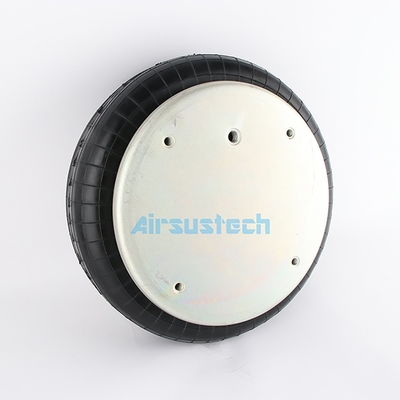

The related picture of 1B53014
