Firestone W01-358-7103 Air Bellow Suspension 1/4 NPT Air Inlet Air Spring Assembly
Refer No.
| Cross reference No. |
OEM No. |
| Fire stone Style 113-1 |
Triangle AS-4339 |
| Fire stone. W01-358-7112 |
TRP AS71120 |
| Fire stone. W01 358 7112 |
Dayton 354-7112 |
| Fire stone. W013587112 |
Hendrickson S-13044 |
| FleetPride AS7112 |
Loadguard SC2012 |
| Goodyear 1B14 358 |
Fleetrite 554782C1 |
| Goodyear 1B14-358 |
Ridewell 1003587112C |
| Goodyear 1B14358 |
SAF Holland 90557028 |
| Goodyear Flex No. 578913352 |
Navistar |
| Taurus 6326 |
|
Specifications and Detailed Technical Parameters:AIRSUSTECH 1B53014P01
Top plate screw (nut) teeth: 4X3/8-16UNC
The screw center distance of the top cover plate: 158.8mm
Screw (nut) teeth of the bottom cover plate: 4X3/8-16UNC
The screw center distance of the bottom cover plate: 158.8 mm
- Air hole/air inlet/air fittings
Air hole/air inlet: 3/4NPTF-14NPTF
Top plate diameter: 289 mm
Diameter of the bottom cover: 289 mm
Maximum diameter of rubber bellows: 406 mm
Natural diameter of rubber bellows: 360 mm
Working stroke: minimum 81 mm to maximum 160 mm
Maximum height: 160 mm
Minimum height: 81 mm
- Bumper block/bumper block
No bumper block
With belt loop: No belt loop
Min. pressure: 0 bar
Return force to min.height: ≤300N
Overall weight with clamped plates: 6.1kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 150mm, minimum 120mm
| Pressure p[bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V[l] |
| Force(Load) [KN] |
18.6 |
24.9 |
31.5 |
37.9 |
44.4 |
50.8 |
11.0 |
| Spring rate [N/cm] |
3650 |
4410 |
5340 |
6140 |
7220 |
7920 |
| Natural frequency [Hz] |
2.2 |
2.1 |
2.1 |
2.0 |
2.0 |
2.0 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
| Height H[mm] |
160 |
17.1 |
23.0 |
29.0 |
35.0 |
41.2 |
47.3 |
11.8 |
| 140 |
20.0 |
26.8 |
33.7 |
40.6 |
47.7 |
54.5 |
10.7 |
| 120 |
22.3 |
29.8 |
37.3 |
44.9 |
52.7 |
60.2 |
9.5 |
| 100 |
24.1 |
31.9 |
40.0 |
48.1 |
56.3 |
64.3 |
8.2 |
| 80 |
25.3 |
33.4 |
41.9 |
50.3 |
58.8 |
67.1 |
6.6 |
| 60 |
26.0 |
34.5 |
43.4 |
52.0 |
60.8 |
69.1 |
4.6 |
FAQ
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

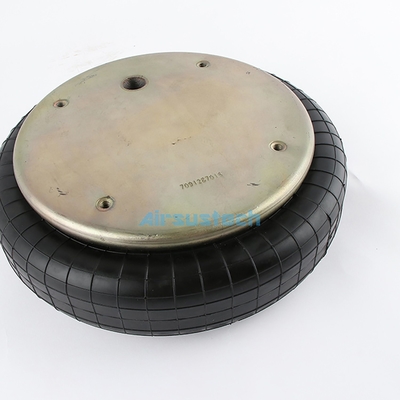

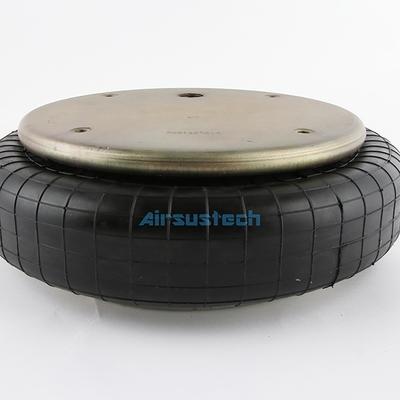

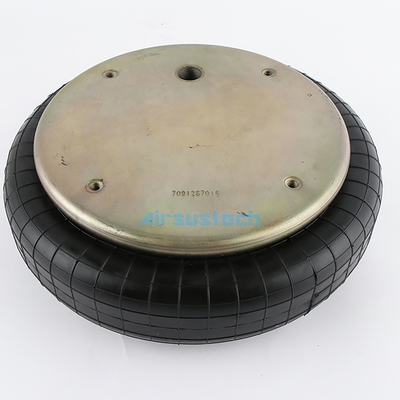

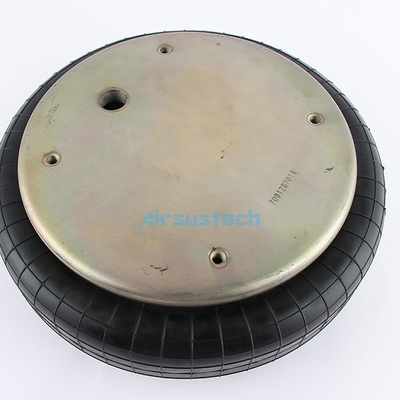

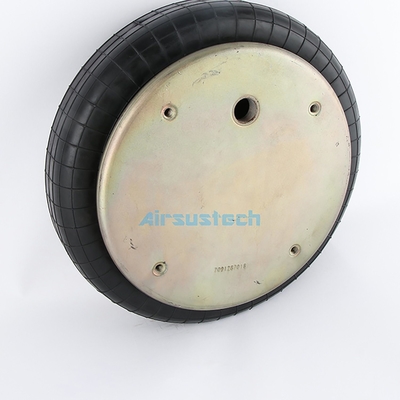

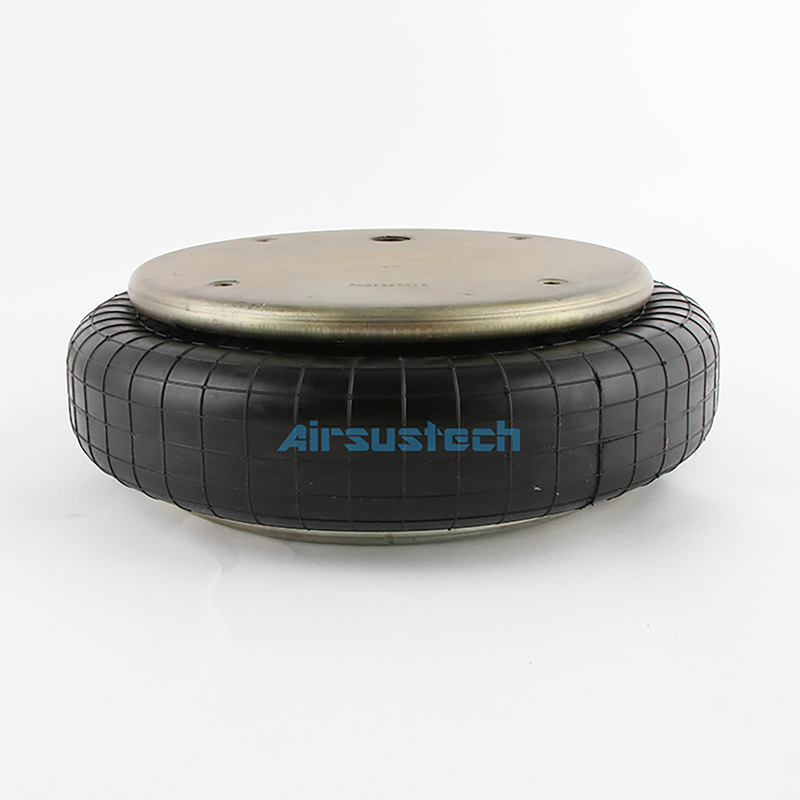

The related picture of 1B53014P01
