Goodyear 1B12-318 Single Convoluted Air Spring Replace Contitech FS 330-11CI Air Bag

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B12-318

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B12-318	Structure:	Single Cylinder
Damping Force Direction:	Bidirectional	Quality:	100 % Tested
Fuction:	Reduce Shock	Trademark:	GUOMAT
Warranty:	12 Months	Customization:	Available \| Customized Request
Highlight:	Single Convoluted Air Spring , 1B12-318 Single Convoluted Air Spring

Goodyear 1B12-318 Single Convoluted Air Spring Replace Contitech FS 330-11CI Air Bag

1B12-318 this air spring is imported from the American brand Goodyear. We are the agent of Goodyear. We promise that our products import from Mexico.This Goodyear air spring in a capsule. Bellows air springs have one, two or three rotations in flexible members. This single spiral airbag is commonly found on the lift springs or axles of trucks and trailers, as a driving spring, and also as an actuator or insulator in industrial and commercial applications.

Refer No.

Continental ContiTech: FS 330-11 CI 62743
Continental ContiTech: FS 330-11 3/4 M8
Continental ContiTech: FS 330-11 G3/4 M8
Continental ContiTech: FS 330-11 CI G3/4
Continental ContiTech: FS 330-11 CI G3/4 M8
Continental ContiTech: FS 330-11 CI / FS330-11CI / FS33011CI
Continental ContiTech Bellow: FS 330-11 / FS330-11 / FS33011
Fire stone No.: W01-M58-6011 / W01 M58 6011 / W01M586011
Fire stone Style: 19
Dunlop FR: 12"x1 S12100
Enidine: YI-1B12-318 / YI 1B12 318 / YI1B12318
Norgren:PM/31121 / PM 31121 / PM31121
Nominal (inch) x convolutions: 12″ x 1 / 12"x1 / 12x1

Specifications and Detailed Technical Parameters: Goodyear 1B12-318

Maximum diameter at 7 bar: 328mm
Maximum height: 140mm
Maximum travel: 89mm
Bead type: 3
Dim. A( Blind hole center): 158 mm
Dim. B: 73mm
Natural frequency at 5 bar: 2.5 fn( Hz)
Material: 2 layer standard line

Other Types Of Convoluted Goodyear Air Spring we have:

Goodyear Air Spring OE NO.	Goodyear Air Spring OE Bellows NO.	Goodyear order NO.	Bumper or not	Goodyear Air Spring OE NO.
1B8-564 Bellows Air Spring	1B8-564	20449825	N	1B8-564 Bellows Air Spring
ENIDINE YI-1B8-564	57991256400019	20095534	Y	ENIDINE YI-1B8-564
1B8-564 INTERNATIONAL 3547005C1	57991256400042	20141113	Y	1B8-564 INTERNATIONAL 3547005C1
1B8-565	1B8-565	20248442	N	1B8-565
C 1B8-560	57991256700090	20810735	Y	C 1B8-560
P 1B8-560	57991256800091	20810607	Y	P 1B8-560
P 1B8-550	57991256900091	20811403	Y	P 1B8-550
C 1B8-562	57991257000090	20811604	Y	C 1B8-562
C 1B8-564	57991257100090	20811605	Y	C 1B8-564
C 1B8-850	57991257200090	20811606	Y	C 1B8-850
C 1B8-550	57991262700090	20806174	Y	C 1B8-550
1B5-800	1B5-800	20469101	N	1B5-800
ENIDINE YI-1B5-800	57991280000019	20095537	Y	ENIDINE YI-1B5-800
GOODYEAR 1B5-801	57991280100000	20607917	Y	GOODYEAR 1B5-801
ENIDINE YI-1B5-801	57991280100019	20095538	Y	ENIDINE YI-1B5-801
1B5-810	1B5-810	20254245	N	1B5-810
ENIDINE YI-1B5-810	57991281000019	20095539	Y	ENIDINE YI-1B5-810
ENIDINE YI-1B5-820	57991282000019	20095540	Y	ENIDINE YI-1B5-820
ENIDINE YI-1B5-821	57991282100019	20224307	Y	ENIDINE YI-1B5-821
ENIDINE YI-1B6-831	57991283100019	20095541	Y	ENIDINE YI-1B6-831

FAQ:

Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

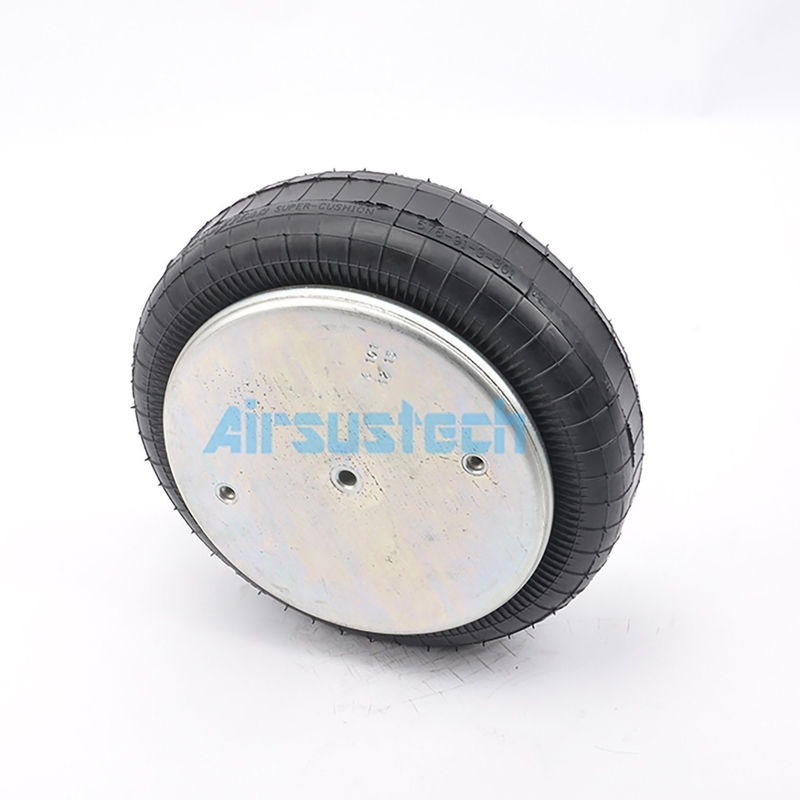

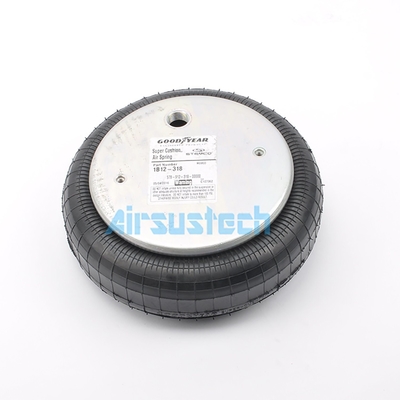

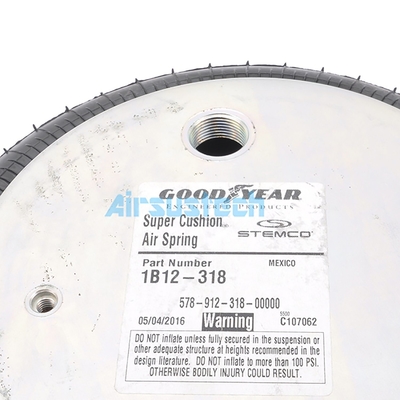

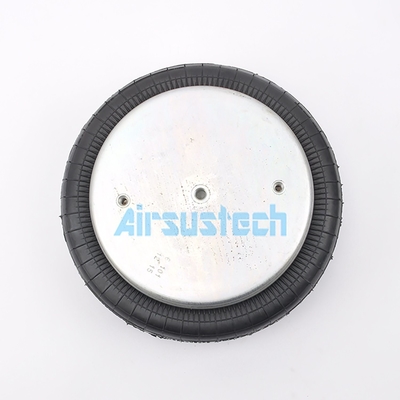

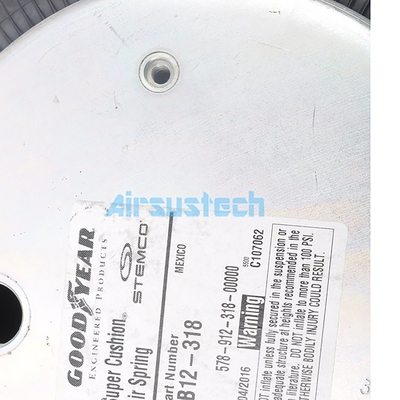

The related picture of 1B12-318
Goodyear 1b12-318 Convoluted Air Spring Replaces Contitech Fs330-11ci Pneumatic Actuator
