FS1710-12RS One Convoluted Rubber Air Spring Shock For Industrial Equipment

Product Details:

Place of Origin:	Germany
Brand Name:	Contitech
Certification:	ISO/TS16949:2009
Model Number:	FS 1710-12 RS

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-199.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Material:	Rubber	Brand:	Guomat Or Neutral
Quality:	100 % Tested	Fuction:	Reduce Shock
Key:	Fs 1710-12 RS	Transport Package:	Neutral Packing
Position:	Front Or Rear	Type:	Gas-Filled
Highlight:	Industrial Equipment Rubber Air Spring , One Convoluted Rubber Air Spring

FS1710-12RS One Convoluted Rubber Air Spring Shock For Industrial Equipment

Refer No.

Contitech FS 1710-12 RS

Continental FS 1710-12 RS

ContiTECH FS1710-12 RS

Continental FS1710-12 RS

Firestone W01-358-7727

Firestone W01 358 7727

Firestone W013587727

Firetone W01-358-1026

Firestone W01 358 1026

Firestone W013581026

Specifications and Detailed Technical Parameters

Top Cover Plate Screw: 24 ×M10

Plate Diameter: 482mm

Rubber Bellow Diameter: 517mm

Height: 55mm to 177mm

Min. pressure: 0 bar

Return force to min.height: ≤730N

Overall weight with clamped plates: 8.7kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 125mm, minimum 110mm

Pressure p[bar]	3	4	5	6	7	8	Vol. V[l]
Force(Load) [KN]	53.6	70.6	87.5	110	126.7	145.7	25
Spring rate [N/mm]	1019	1288	1551	1897	2154	2448
Natural frequency [Hz]	2.2	2.2	2.1	2.1	2.1	2.1

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	140	48.2	64.4	81.2	98	115	132	28
	120	53.8	72.1	90.6	109	128	147	24
	100	60.2	80.2	101	121	142	162	19
	80	65	86.6	109	130	152	174	15
	60	67.8	90.2	113	136	158	181	95

Applications

Pulp and paper industry

Lumber mills

Lift tables

Tooling and machining system

Energy production

Tooling robotics and automation

Component assembly

Automotive assembly

Medical equipment

Conveyor systems

Packaging

Advantage

Air springs can adjust stiffness and bearing capacity
The air spring can change the height
Air spring has higher shock absorption and noise reduction function
Air springs are lighter
Air springs have higher fatigue life
Air springs are more economical

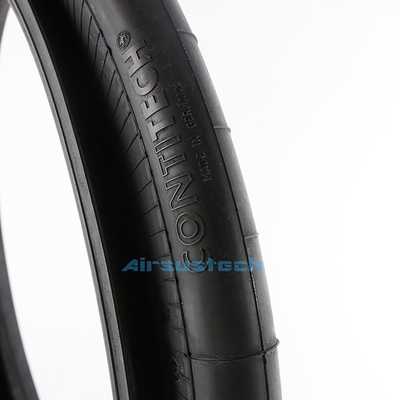

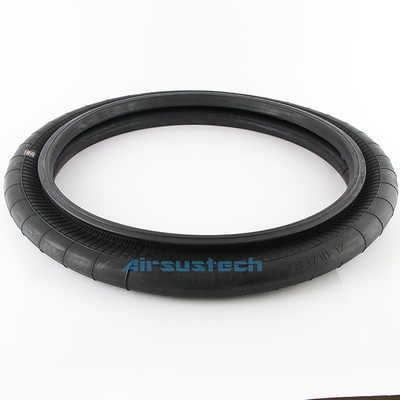

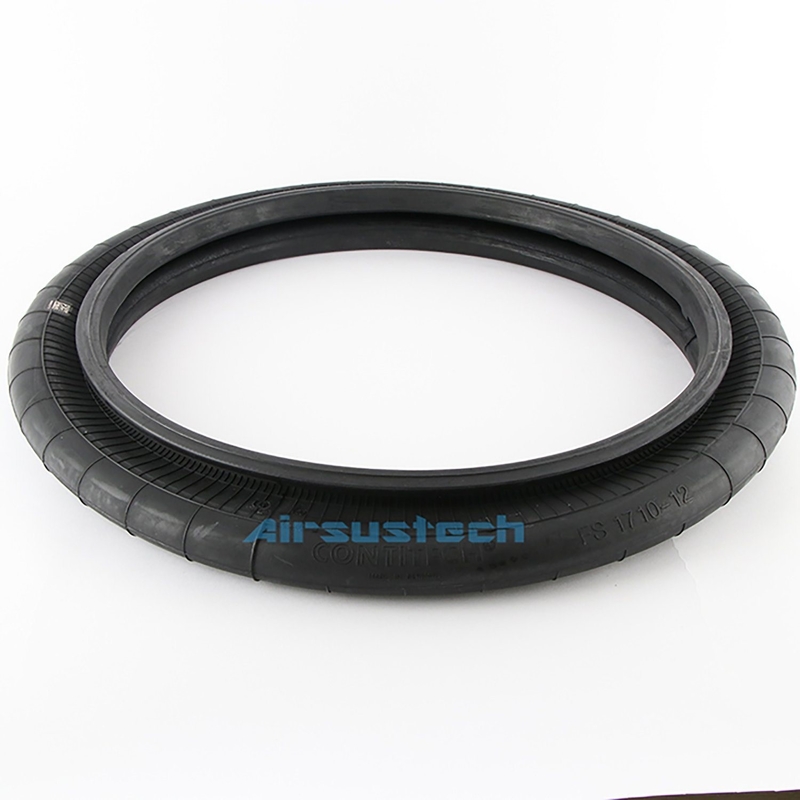

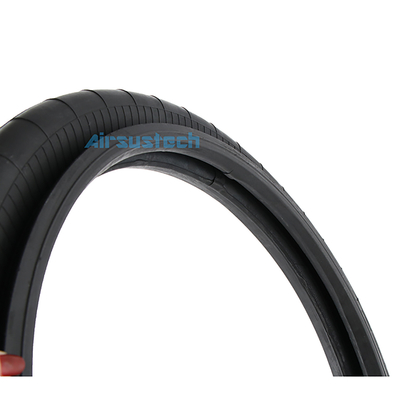

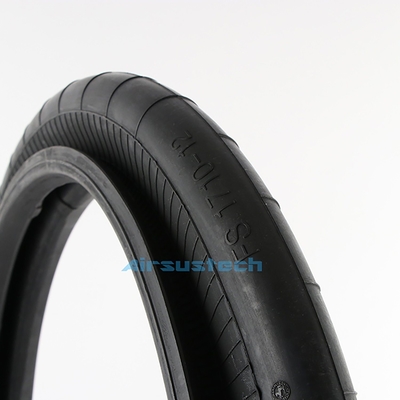

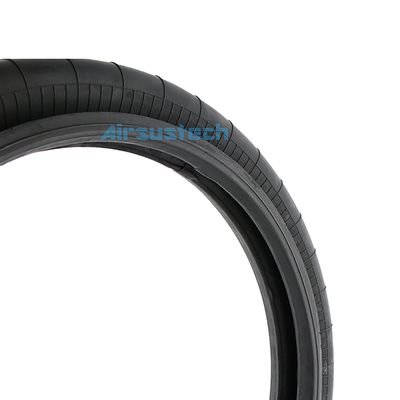

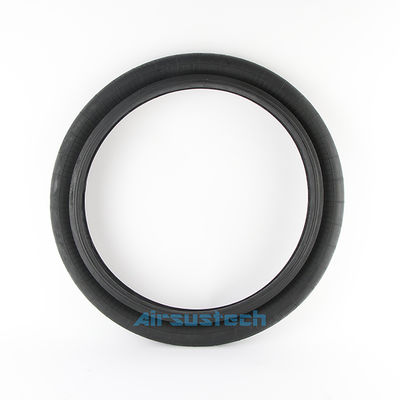

The related picture

FS1710-12RS One Convoluted Rubber Air Spring Shock For Industrial Equipment 0

FS1710-12RS One Convoluted Rubber Air Spring Shock For Industrial Equipment 1
