One Convoluted Air Spring 1B5171 Style Replaces Contitech FS330-11 468 Rubber Bellows
Refer No.
| Fire stone W01-358-7009 |
Triangle 6374 |
| Fire stone W013587009 |
Triangle 4468 |
| Fire stone W01 3587009 |
SAF-Holland AR741 |
| Contitech FS330-11 468 |
Neway 90557002 |
| Contitech FS 330-11 468 |
Goodyear 1B12-301 |
| Contitech FS330 11 468 |
Goodyear 1B12 301 |
| Contitech FS 330 11 468 |
Goodyear 1B12-313 |
| Contitech FS33011468 |
Goodyear 1B12 313 |
| Contitech FS33011 468 |
|
Specifications and Detailed Technical Parameters: 1B5171
Top plate screw (nut) teeth: 3× 3/8-16UNC
Screw (nut) teeth of the bottom cover plate: 4× 3/8-16UNC
- Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPTF
Top plate diameter: 231 mm
Bottom cover diameter: 231mm
MAX. Rubber Bellow Diameter: 325mm
Stroke: 55mm to 160mm
- Bumper block/bumper block
No bumper block
Without belt loop
Min. pressure: 0 bar
Return force to min.height: ≤300N
Overall weight with clamped plates: 4.1kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 130mm, minimum 100mm
| Pressure p[bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V[l] |
| Force(Load) [KN] |
10.7 |
14.2 |
17.8 |
21.8 |
25.4 |
29.0 |
6.8 |
| Spring rate [N/cm] |
2645 |
3290 |
3935 |
4580 |
5225 |
5870 |
| Natural frequency [Hz] |
2.5 |
2.4 |
2.4 |
2.3 |
2.3 |
2.3 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
| Height H[mm] |
130 |
10.7 |
14.2 |
17.8 |
21.8 |
25.4 |
29.0 |
7.0 |
| 120 |
11.9 |
15.7 |
19.6 |
23.8 |
27.8 |
31.8 |
6.3 |
| 110 |
12.7 |
16.9 |
21.1 |
25.8 |
30.1 |
34.4 |
5.8 |
| 100 |
13.6 |
18.1 |
22.7 |
27.6 |
32.1 |
36.7 |
5.6 |
| 90 |
14.4 |
19.2 |
24.0 |
29.1 |
34.0 |
38.9 |
5.3 |
| 80 |
15.0 |
20.2 |
25.2 |
30.5 |
35.5 |
40.6 |
4.9 |
| 70 |
15.5 |
20.9 |
26.2 |
31.6 |
36.9 |
42.1 |
4.3 |
| 60 |
16.0 |
21.6 |
27.1 |
32.6 |
38.0 |
43.3 |
3.9 |
Applications
Pulp and paper industry
Lumber mills
Lift tables
Tooling and machining system
Energy production
Tooling robotics and automation
Component assembly
Automotive assembly
Medical equipment
Conveyor systems
Packaging
Advantage
1. Precise control precision: the air spring shock absorber provides precise height control by adjusting the internal air pressure. This feature eliminates fatigue and one-time setup problems common in other types of isolators.
2. Prolong the life of equipment: air spring shock absorber because of its special shock absorption principle, reflects a great advantage in the maintenance of equipment, when the traditional steel spring is impacted, will produce the phenomenon of self-vibration, the frequency of self-vibration can be directly transmitted to the equipment, resulting in loosening and damage of equipment. Air spring damping is much better, and it is even possible to achieve complete damping, significantly reducing equipment maintenance costs and extending equipment life
3. Wide range of action: air spring shock absorber vibration isolation load at each installation point from 10KG to more than 10 tons, can meet a variety of different production requirements. (Guomat air spring as an example, there may be differences between brands)
4. Superior shock absorption: Air spring shock absorbers provide superior vibration isolation among all types of vibration absorbers. The natural frequency of the system can be as low as 1 hz. The system's natural frequency can be even lower if an additional air storage chamber is added. In order to achieve the same effect, the static deformation of traditional spiral spring shock absorbers should be at least 230 mm.

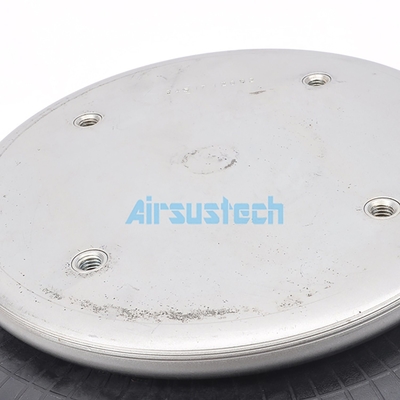

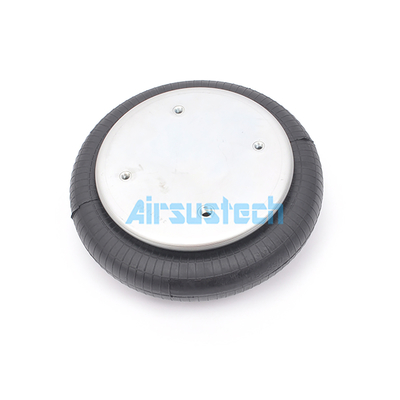

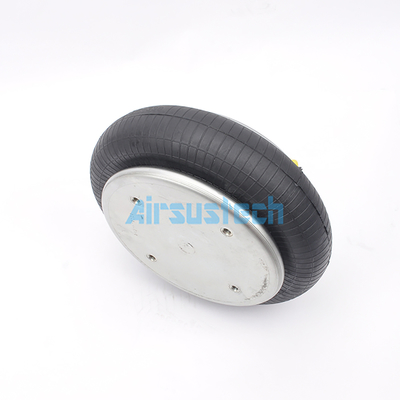

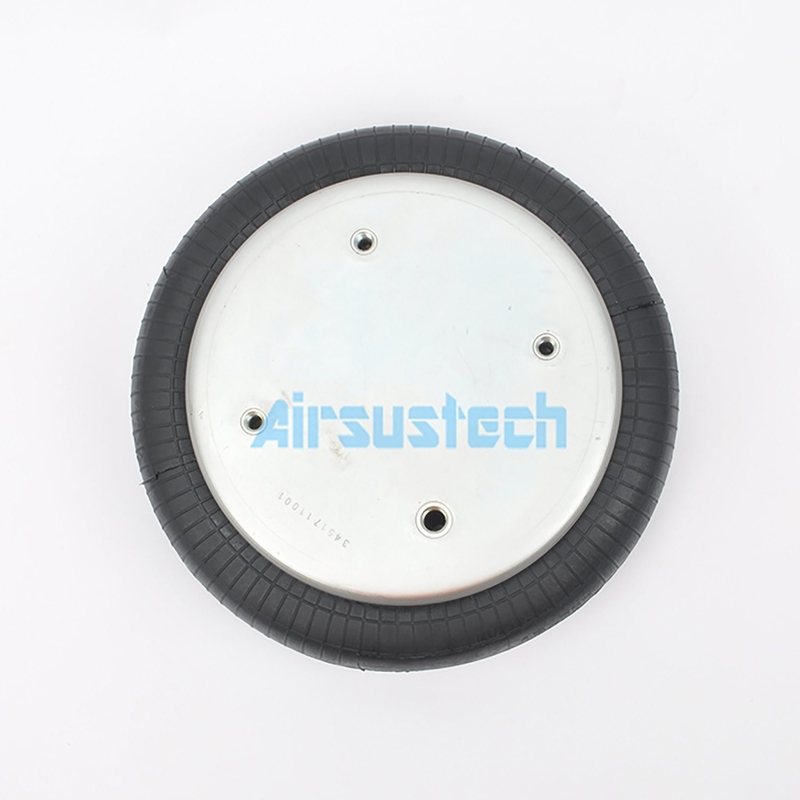

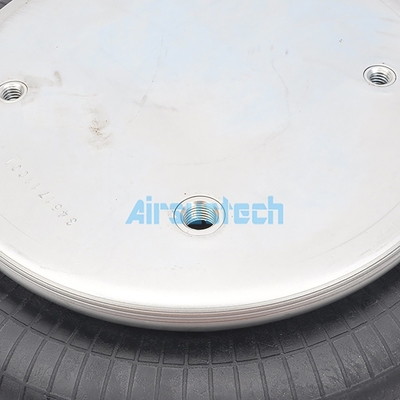

The related picture of 1B5171
