Dunlop 8"X1 S08101 Pneumatic Air Spring Single Convoluted Air Bag Suspension
Refer Number:
Fire stone : W01-M58-6165
Fire stone : W01 M58 6165
Fire stone : W01M586165
Contitech : FS120-9
Contitech : FS120 9
Dunlop(FR) : 8"x1 S08101
Bos ch : 822419003
Fes to : EB-215-80
Fes to : EB 215 80
Norgren : PM/31081,(8x1)
Weforma : WBE300-E1
Airtech : 140293
Megatech : 1S12
Specifications and Detailed Technical Parameters: 1B1209
| Nut/blind nut |
|
Top plate screw (nut) teeth: 2XM8×1.5
Bottom cover plate screw (nut) teeth: 2XM8×1.5
The screw center distance of the cover plate: 70mm
|
| Air hole/air inlet/air fittings |
| G3/4 |
| Rubber Bellows |
| Rubber bellows stroke: minimum 50 mm to maximum 115 mm |
| Plate diameter |
|
Top plate diameter (width): 135 mm
Bottom cover plate diameter: 135 mm
|
| Bumper block/bumper block |
| Without |
| Belt loop/Belt loop/Girdle hoop |
| Without |
Min. pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 2.0kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 110mm, minimum 90mm
| Pressure p[bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V[l] |
| Force(Load) [KN] |
3.9 |
5.3 |
6.8 |
8.3 |
9.6 |
10.9 |
1.8 |
| Spring rate [N/cm] |
1316 |
1620 |
1925 |
2230 |
2535 |
2840 |
| Natural frequency [Hz] |
2.9 |
2.8 |
2.7 |
2.6 |
2.6 |
2.6 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
Height H[mm]
|
120 |
3.1 |
4.3 |
5.6 |
6.9 |
8.0 |
9.2 |
1.9 |
| 110 |
3.9 |
5.3 |
6.8 |
8.3 |
9.6 |
10.9 |
1.8 |
| 100 |
4.5 |
6.1 |
7.9 |
9.7 |
11.0 |
12.4 |
1.7 |
| 90 |
5.0 |
6.8 |
8.9 |
10.8 |
12.2 |
13.8 |
1.5 |
| 80 |
5.5 |
7.4 |
9.7 |
11.6 |
13.3 |
15.0 |
1.3 |
| 70 |
5.9 |
7.9 |
10.3 |
12.3 |
14.2 |
16.0 |
1.1 |
| 60 |
6.3 |
8.2 |
10.7 |
13.0 |
15.0 |
17.0 |
0.9 |
Four major benefits of air spring application in industrial equipment
Protection and buffering effect: industrial air spring can give other shock absorber incomparable best protection and damping effect. Depending on the supply of external gas storage equipment, lower frequencies may be given.
The relative height of industrial air spring is very precise: the air spring adjusts the relative height of the work according to the internal standard air pressure. Industrial air springs are not easy to cause static friction with other components. For raw materials with destructive bearing capacity, the system software can automatically adjust the working pressure to ensure good working relative height.
Reasonable co-shock resistance: the air spring damping system software can be preset to have 2 frequencies, so one frequency can be converted to avoid co-shock.
Reasonable noise reduction: industrial production of air spring can reduce the structure of transmission noise, because it is not easy to cause noise itself, so it is not easy to cause torsion spring vibration like the general compression spring. It can be said that the industrial production of air spring in the industrial industry plays an essential role.

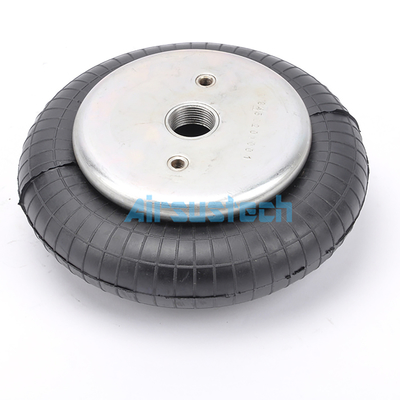

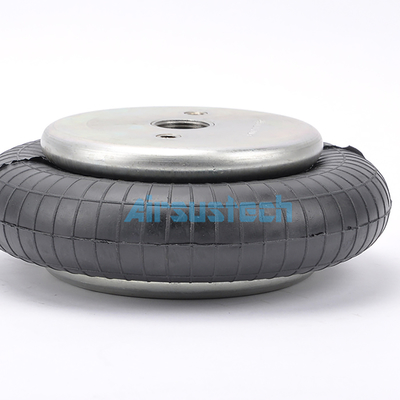

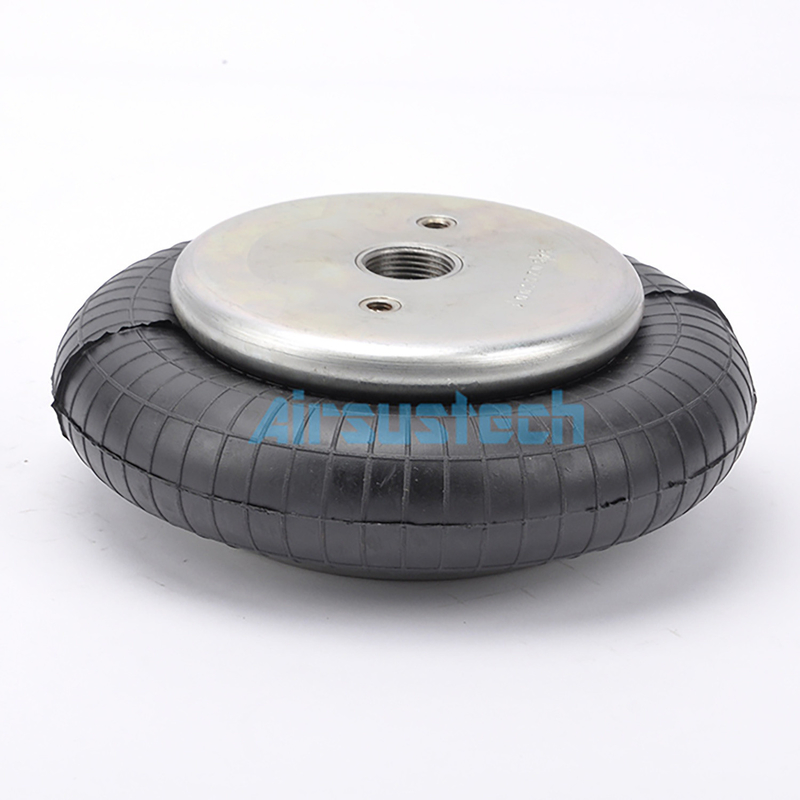

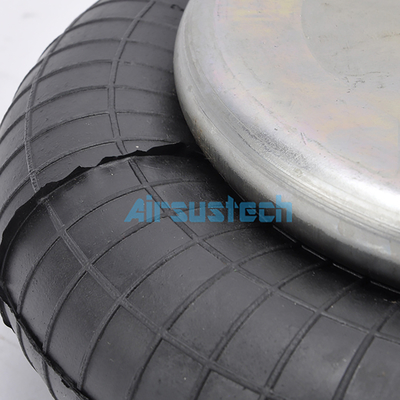

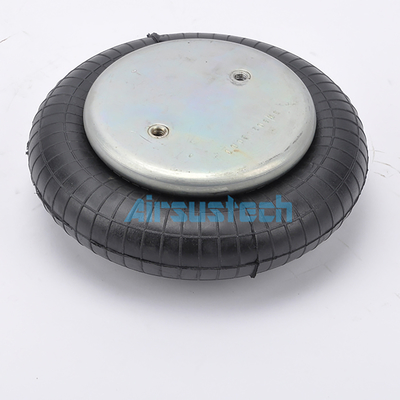

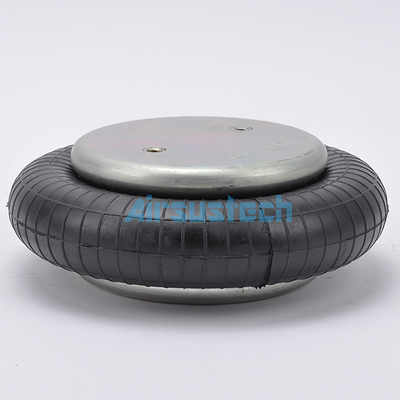

The related picture of 1B1209
