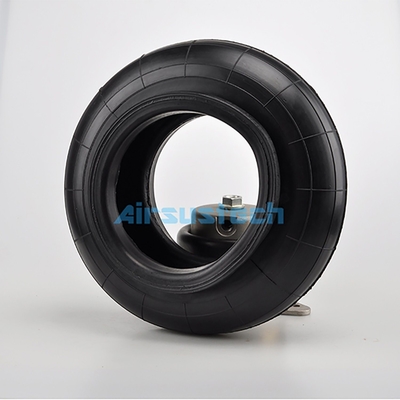

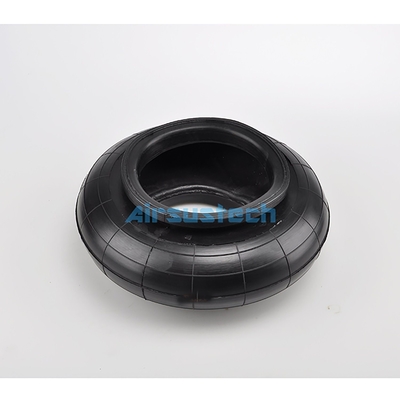

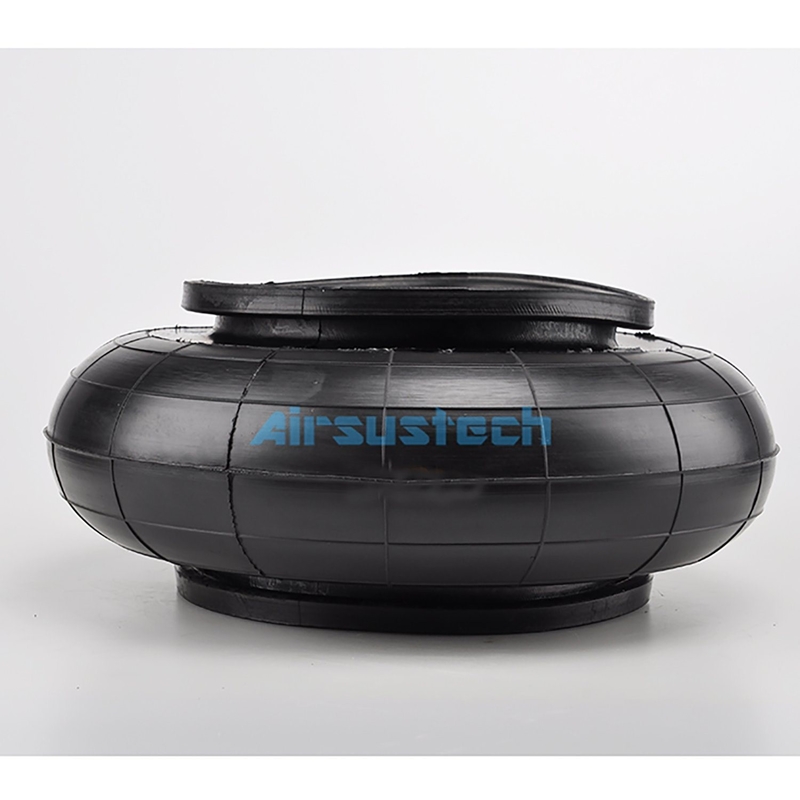

FS 310-12 VP Contitech One Convoluted Air Spring Rubber Industrial Helper Bags

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	230116-1

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Quality:	100 % Tested	OEM No.:	Phoenix 1b20
Transport Package:	Neutral Packing	HS Code:	8708809000
Position:	Front Or Rear	Type:	Gas-Filled
Application:	For Truck/Trailer	Contitech:	FS 310-12 VP
Highlight:	Rubber One Convoluted Air Spring , Industrial One Convoluted Air Spring

FS310-12VP Contitech One Convoluted Air Spring Rubber Industrial Helper Bags

230116-1 Air springs can replace Phoenix 1B 20/ Phoenix 1B20/ Phoenix1B20/ ContiTech FS 310-12 VP/ ContiTech FS310-12VP.

Specifications and Detailed Technical Parameters: 230116-1

Loading capacity max. 1 Load capacity max. (7 bar)	23.80 kN
Max. Lifting pressure 1 Max. Pressure for lifting processes	8.0 bar
Diameter max. 1 diameter max.	305 mm
Required space 1 space requirement Ø	330 mm
Height max.1 Max. Height	175 mm
Height min. 1 min. Height	55 mm
Weight 1 weight	1.02 kg
Force to collapse to min. height 1 restoring force to the minimum height

Nut / Blind Nut

The Long Of The Nut:25 mm

Top Cover Plate Screw number: 8 pcs

Bottom Cover Plate Screw number : 8 pcs

Top Cover Plate Screw (Nut) Tooth : M10

Screw Center Distance of Top Cover Plate :

Bottom Cover Plate Screw (Nut) Tooth : M10

Screw Center Distance of Bottom Cover Plate :

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

Cover Plate

Top Diameter: 172 mm

Bottom Cover Plate Diameter: 172 mm

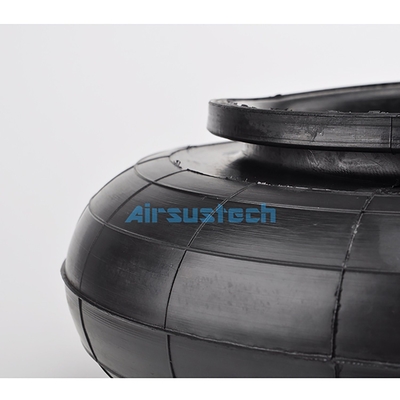

Rubber Bellows

Rubber Bellows Natural Diameter : 150 mm

Rubber Bellows Natural Height :115 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

Without Girdle Hoop

Product advantage

Guangzhou Guomat Air Spring Co., Ltd. was established in 2008, so far has more than 10 years of experience in air spring. We have been committed to do professional damping equipment, thanks to the following product advantages, our air spring has been popular at home and abroad.
Imported rubber: combined with advanced sol technology, durable, heat resistance, aging resistance and other characteristics.
Integrated casting process: the use of integrated casting process, durable, strong air tightness, anti-leakage and anti-blowout
Easy installation: the shape and size are the same as the original, directly replace the original air spring, convenient installation
Made of fine steel: made of fine steel, anti-fracture, long service life
