Goodyear 578913301 Air Suspension Spring Cross Firestone W01-358-0134 Air Bag Shock
Refer No.
AIRSUSTECH NO.1H320124
Fire stone:W01-358-0134 /W01 3580134 / W013580134
Fire stone Bellows No.: 19
Goodyear Bellows No.: 578-91-3-301 / 578 91 3 301/578913301
Specifications and Detailed Technical Parameters: 1H320124
| Cargo Capacity at 20 psig: 1,300 lbsf |
| Load Capacity at 60 psig: 3,900 lbsf |
| Load Capacity at 90 psig: 5,850 lbsf |
| Operating temperature: 57Cº to -54Cº |
| Compressed Height: 2.12 |
| Top cover plate diameter: 227mm |
| Bottom cover diameter: 227mm |
| Screw center distance: 197mm |
| Top cover plate screw teeth (nut): 10pcsXM10 |
| Cover Screw (Nut) Thread: 10pcs XM10 |
| Rubber Bellows Maximum Diameter: 12.9" / 325mm |
| Natural diameter of rubber bellows 300 mm |
| Forward travel: 160mm max to 55mm min |
| Compressed Height: 2.12"/105mm |
| Gas/Hole Air Inlet: 1/2 N PTF |
| Bumper Block: Without |
| Girdle Hoop/Girdle Ring/Belt loop: Without |
Other Air Spring/Bellows We can offer
W01-M58-6008;W01 M58 6008; W01M586008
W01-M58-6373;W01M586373; W01 M58 6373
W01-M58-6011;W01 M58 6011; W01M586011
W01-M58-6372;W01M586372;W01 M58 6372
W01-M58-6975;W01M586975; W01 M58 6975
W01-358-0134;W01 358 0134;W013580134
W01-M58-6040; W01 M58 6040; W01M586040
Advantages
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.
FAQ
Q1: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.
Q2: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.
Q3: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

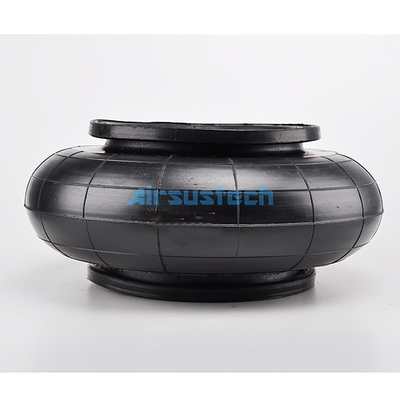

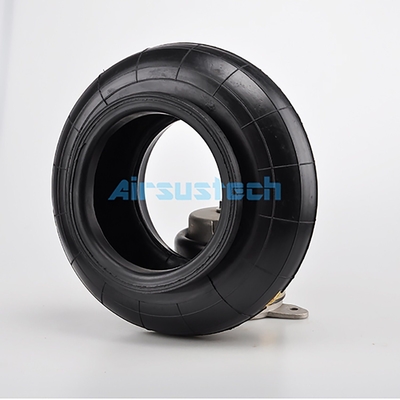

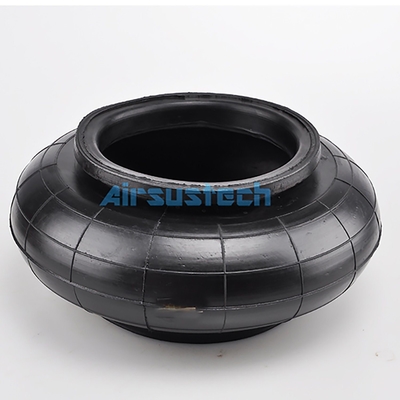

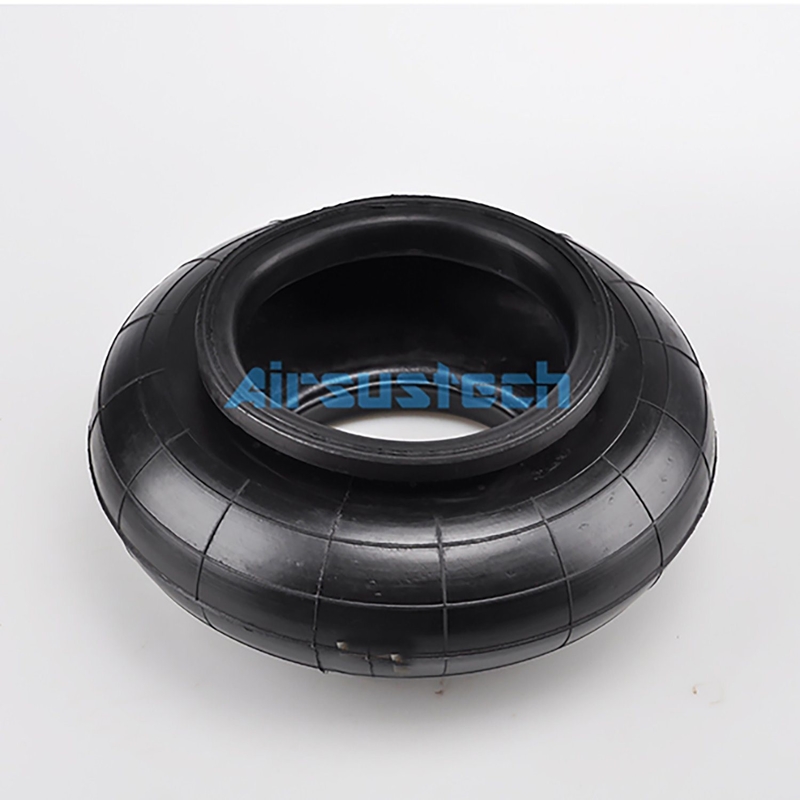

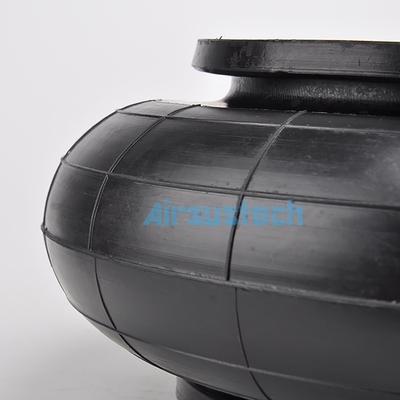

The related picture of 1H320124
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Factory workshop
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
