FS 120-9 Firestone W01-M58-6166 Industrial Convoluted Air Spring For Spin Washing Machines

FS 120-9 Firestone W01-M58-6166 Industrial Convoluted Air Spring For Spin Washing Machines

Product Details

Original Equipment Manufacturer Number

FIRESTONE : W01-M58-6166 , W01 M58 6166 , W01/M58/6166 , w01 m58 6166
CONTITECH : FS 120-9 , FS 120-9 CI , FS120-9 , fs120-9

Dunlop(FR):8''x1 S08100

Bos-ch:822419008

Weforma:WBE 300-E2

Contitech FS120-9 CI Single Convoluted Air Actuator Technical Data

The top cover plate diameter: Ø141mm

Top cover thread hole specifications: 2XM8,15mm

Center distance between threaded holes: 70mm

The bottom cover plate diameter: Ø141mm

Bottom cover thread hole specifications: 2XM8,15mm

Center distance between threaded holes: 70mm

Max.outer diameter: Ø215mm

Max.height: 135mm

Min.height: 50mm

Advantages of using air springs in rotary washing machines

Reduced vibration and noise: Air springs can reduce the vibration and noise generated by the washing machine when it is spinning at high speeds. They are able to absorb and reduce vibrations inside the washing machine, making the washing machine more stable and quiet during operation.
Increased washing results: Air springs can also improve the washing results of the washing machine. By reducing the vibration of the washing machine, they can ensure that the clothes are better agitated and turned during the washing process, thereby cleaning the clothes more thoroughly.
Extended washing machine life: Using air springs can reduce mechanical wear and damage to the washing machine. They are able to absorb shocks and vibrations, reducing stress on the internal components of the washing machine, thereby extending the service life of the washing machine.
Improved stability: Air springs can improve the stability of the washing machine. They are able to adjust the balance of the washing machine so that it does not shake or move when spinning at high speeds, thereby maintaining the stability and safety of the washing machine.

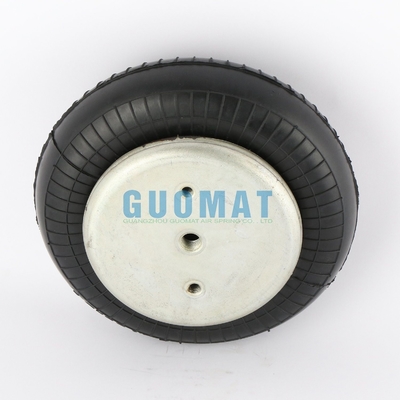

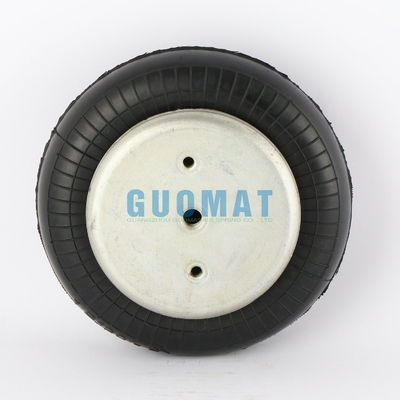

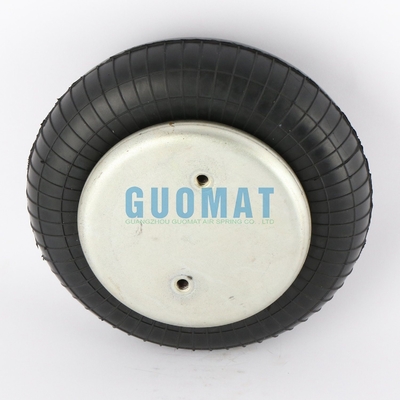

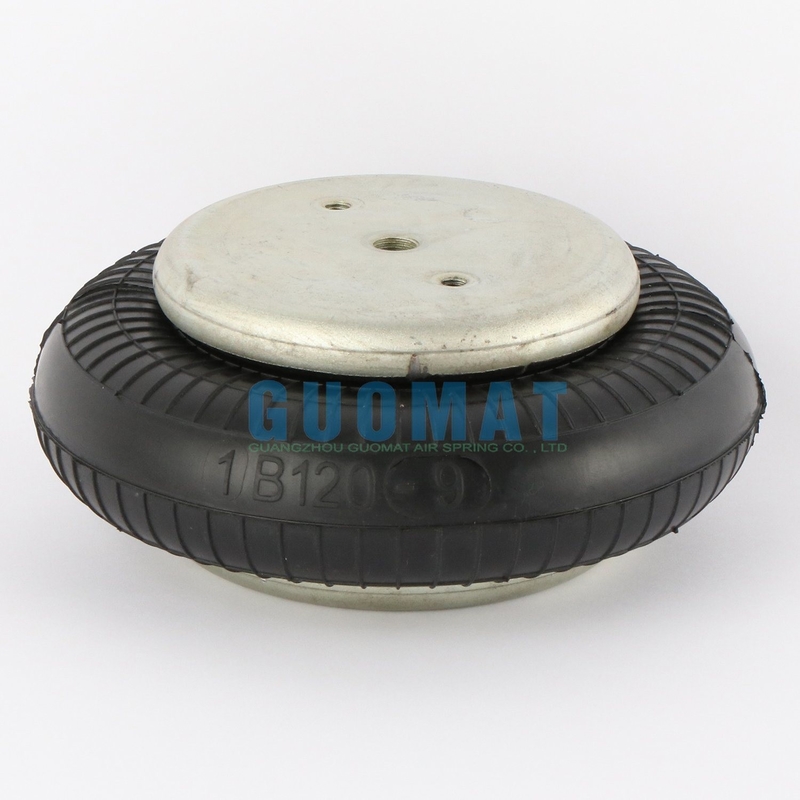

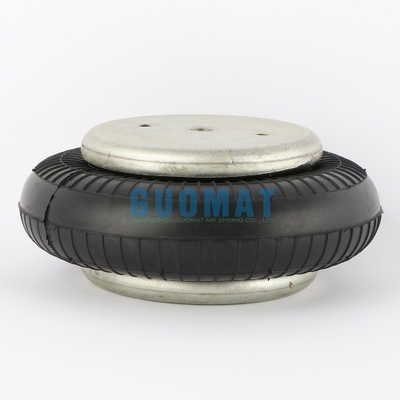

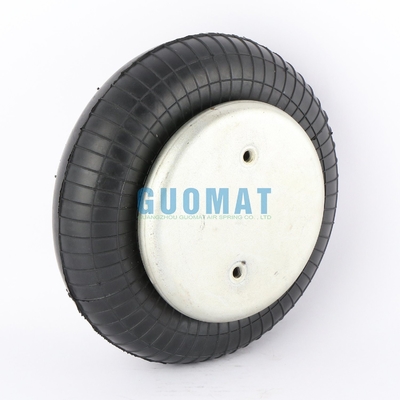

Product Images
