Firestone W01-358-7451 Industrial Single Convoluted Air Spring Style 110 Airstroke

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7451

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Part Name:	Convoluted Air Spring	Structure:	Single Convoluted
Car Make:	Guomat Or Neutral	Fuction:	Reduce Shock
Cross Reference:	W01-358-7451	Specification:	Rubber
After-sales Service:	12 Months	Position:	Guomat Or Neutral
Highlight:	Industrial Single Convoluted Air Spring , Style 110 Airstroke

Firestone W01-358-7451 Industrial Single Convoluted Air Spring Style 110 Airstroke

Product Description

Item	Air Spring/Shock Absorber Spring/Air Bellows
Brand	Guomat/Neutral
Model Number	W01-358-7451
Material	Rubber And Steel
Warranty	1 Year
MOQ	1 PCS If We Have Stock
Package	(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package
Delivery Time	2-8 Working Days
Payment	T/T, L/C, PayPal, Western Union
After Service	(1) Examination Before Shipment (2) Follow Up The Customers' Feedback
Main products we sell	Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump

OEM Number
FIRESTONE W01-358-7451
FIRESTONE W013587451
FIRESTONE W01 358 7451

Cover Plate Diameter: 4.50 inch

Blind Nuts: 2X3/8-16 (5/8 Deep)

Gas Hole: 1/4 NPT

Center Distance Between Blind Nuts: 1.75 inch

The Natural Outer Diameter: 8.1 inch

Max.Height: 6 inch

Min.Height: 2.1 inch

Force Table
Assembly Height (in.)	Volume@100 PSIG(in3)	Pounds Force
Assembly Height (in.)	Volume@100 PSIG(in3)	@20 PSIG	@40 PSIG	@60 PSIG	@80 PSIG	@100 PSIG
4.0	117	390	810	1240	1700	2160
3.0	490	490	1010	1540	2090	2650

Every standard air spring consists of 4 layers.
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.

Style 110 Firestone Air Spring

W01-358-7451: Blind nuts,1/4 NPT

W01-358-7484: Blind nuts,3/4 NPT

W01-358-0112: Socket head aluminum bead rings(bolts,nuts,washers not invluded-use 1/4 cap screws)

W01-358-0100: Rubber bellows only

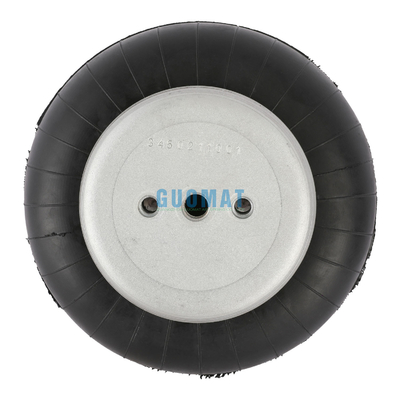

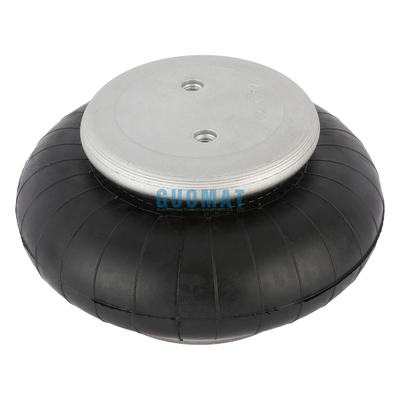

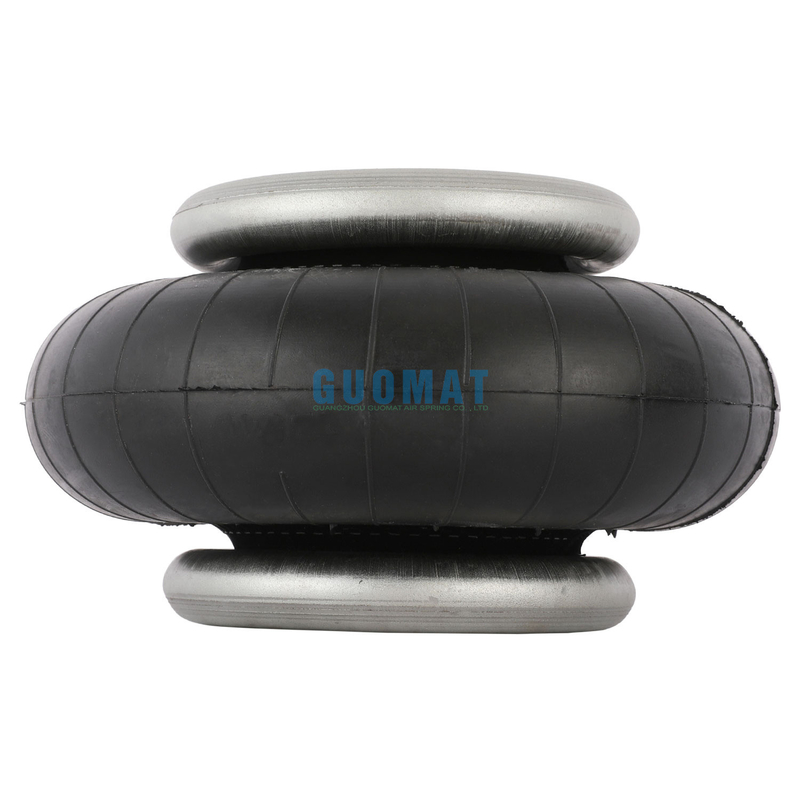

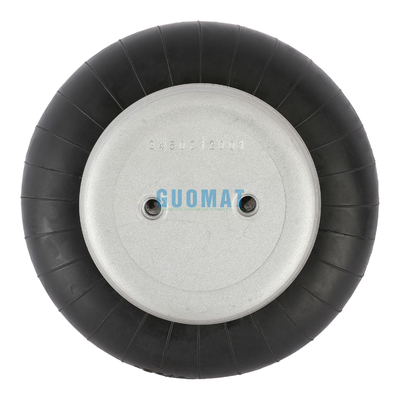

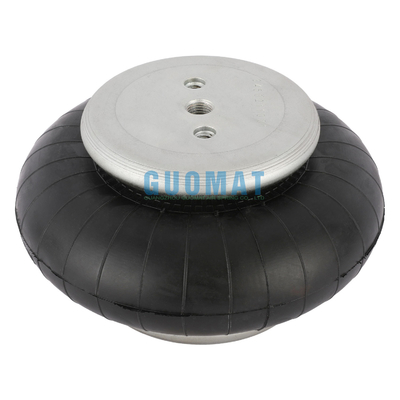

The pictures of air spring/air actuator/air ballon

Firestone W01-358-7451 Industrial Single Convoluted Air Spring Style 110 Airstroke 0
