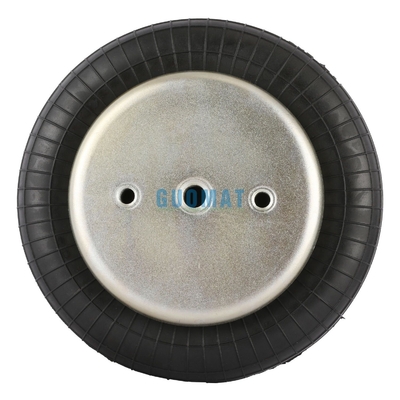

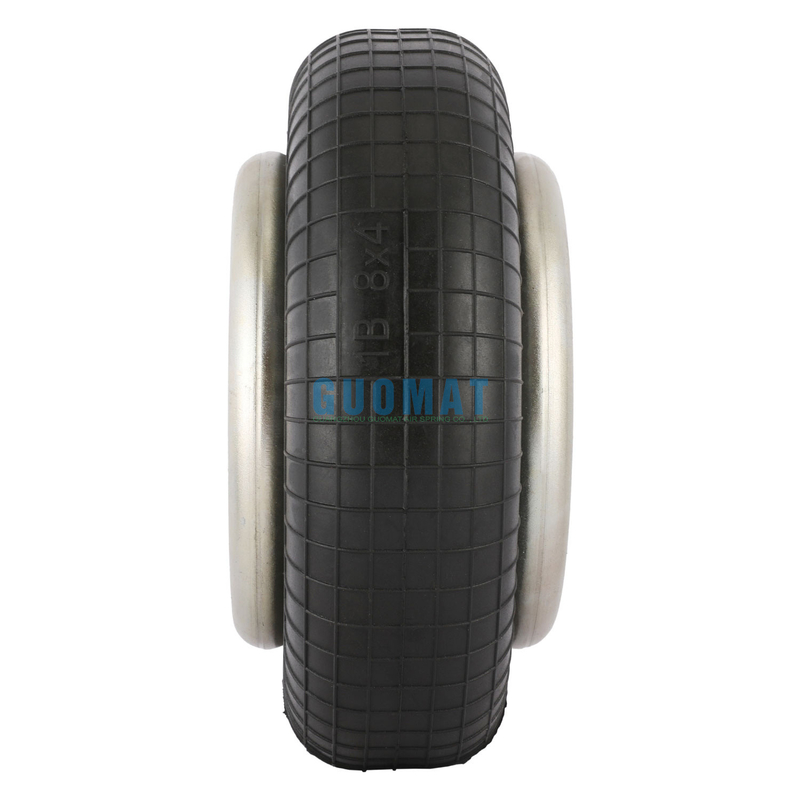

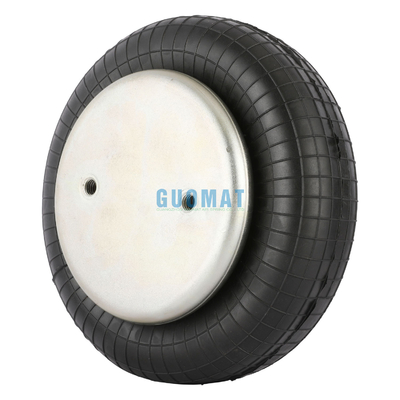

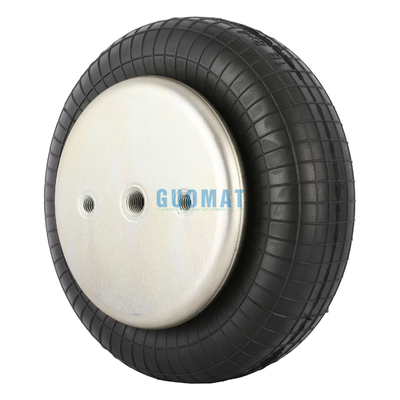

Firestone W01-358-7564 Single Bellow Air Spring 1B8X4 Industrial Air Suspension Bags

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B8X4

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Style:	Single Convoluted	Quality:	100 % Tested
Fuction:	Reduce Shock	Cross Reference:	W01-358-7564
Origin:	Guangzhou, China	Warranty:	12 Months
Application:	Mineral Sample Pulverizers	Part Material:	Rubber
Highlight:	W01-358-7564 Single Bellow Air Spring , 1B8X4 Single Bellow Air Spring

Firestone W01-358-7564 Single Bellow Air Spring 1B8X4 Industrial Air Suspension Bags

Item Name : Steel Single Convoluted Air Bag

Product Number : 1B 8x4

OEM Number : W01-358-7564 ; 1B8-550 ; FS120-10

Factory Warranty : 12 Months

Product Material : Natural Rubber and Steel

Package : Strong Carton Box

Delivery Time : 2-8 working day

Spring Weight : 2.4KG

Top Cover Plate Diameter : 135mm

Bottom Cover Plate Diameter : 135mm

Top Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC

Screw Center Distance of Top Cover Plate : 70mm

Bottom Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 70mm

Gas Hole : 1/4 NPTF

The Rubber Bellow MAX Diameter : 230mm

The Working Stroke : MAX 140mm To MIN 50mm

Maximum Height : 140mm

Minimum Height : 50mm

Compression Height : 90mm

Pneumatic application – static characteristic values

Force F [kN]

Pressure p	bar	3	4	5	6	7	8	Vol.V(I)
Height H [mm]	120	4.2	5.6	7.2	8.4	10.2	11.7	2.1
	110	4.8	6.6	8.2	9.9	11.6	13.4	2
	100	5.6	7.4	9.2	11.2	13.1	15	1.8
	90	6	8	10.1	12.2	14.2	16.4	1.6
	80	6.5	8.6	10.9	13.2	15.3	17.6	1.4
	70	6.8	9.2	11.4	13.8	16.1	18.4	1.3
	60	7.1	9.4	12	14.4	16.6	19.2	1.1
