Firestone W01-358-7460 Industrial Air Suspension For Industrial Lifting Air bags
Product Information

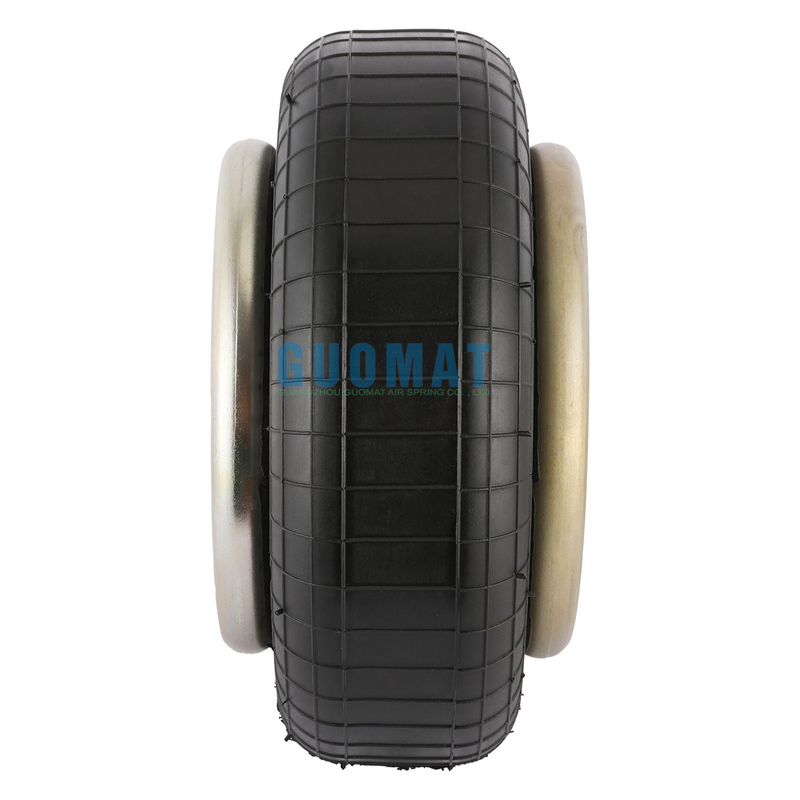

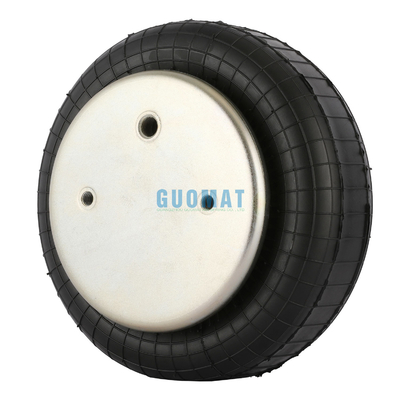

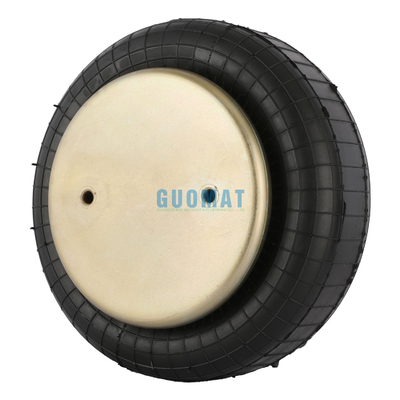

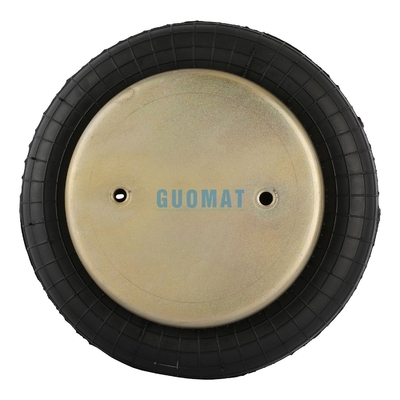

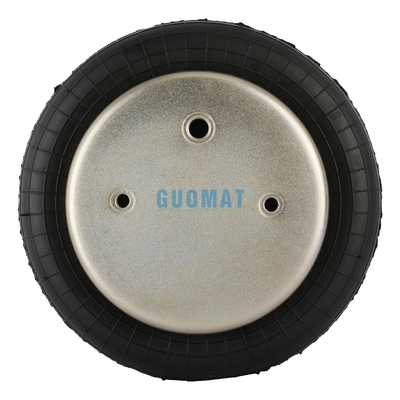

Item Name : Steel Single Convoluted Air Bag
Product Number : 1B 9x5
Goodyear: 1B9-202
Goodyear: 578 91 3 201
Factory Warranty : 12 Months
Product Material : Natural Rubber and Steel
Package : Strong Carton Box
Delivery Time : 2-8 working day
Spring Weight : 2.4KG
1B9X5 Reference Number
GOODYEAR 1B9-202 / 1B9202 / 578913201 / 578 91 3 201
FIRE-STONE W013587460 / W01-358-7460 / w01-358-7460
Product Technical Data
Cover Plate
Top Cover Plate Diameter : 160mm
Bottom Cover Plate Diameter : 160mm
Nut/ Blind Nut
Top Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC
Screw Center Distance of Top Cover Plate : 89mm
Bottom Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89mm
Distance Between Gas Hole and Screw : 44.5mm
Gas Hole/Air Inlet/Air Fitting
Gas Hole : 1/4-18 NPTF
Rubber Bellow
The Rubber Bellow MAX Diameter : 222mm
The Working Stroke : MAX 160mm To MIN 60mm
Maximum Height : 160mm
Minimum Height : 60mm
Compression Height :100mm
Specification
♦Install
Although they serve similar functions, air springs are much less expensive than air cylinders and other springs. When deflated, air springs have a small footprint and are easy to handle and connect to machinery.
♦Maintain
Maintenance procedures for air springs tend to be minimal, air springs require no lubrication, and there are no seals or guides that can become misaligned or damaged like other springs. Air springs should be stored at room temperature in a dry, dark place.
♦Environment
Due to their durability and simplicity, air springs are suitable for most industrial and commercial applications. Rubber and neoprene are prone to dry rot, so dehumidified conditions can shorten the life of an air spring.
♦Medium
Air spring bellows can also accept other types of fluids such as nitrogen, carbon, water and antifreeze.
FAQ
Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.
Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.
The Related Pictures
Company Profile
Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.
The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.
Factory Workshop
