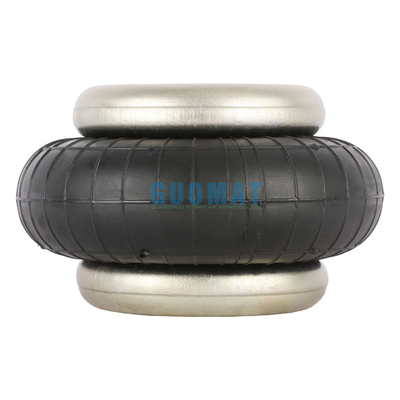

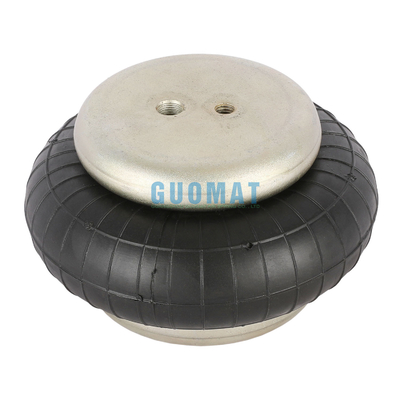

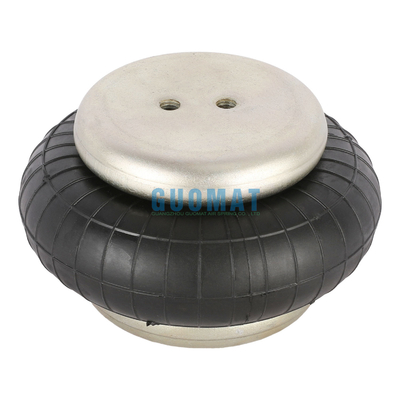

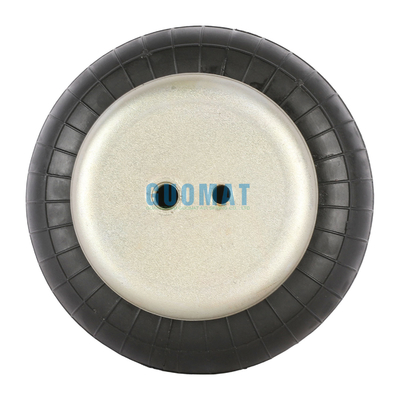

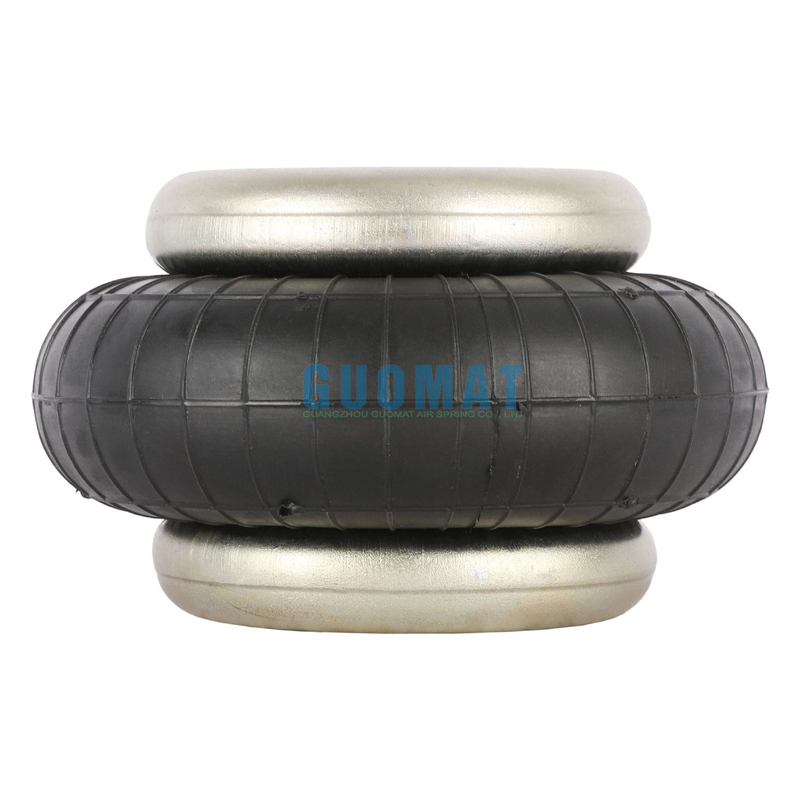

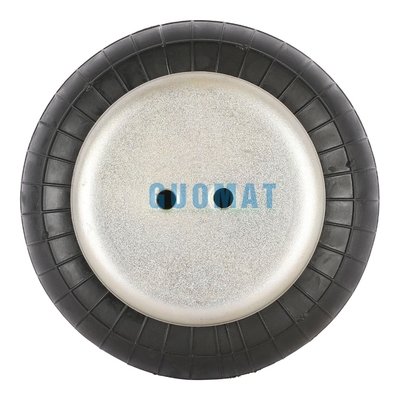

Contitech FS40-6 CI Air Spring Actuator Single Convoluted Rubber Bellow G1/8 Air Hole

Contitech FS40-6 CI Air Spring Actuator Single Convoluted Rubber Bellow G1/8 Air Hole

• Cover Plate

Top Cover Plate Diameter : 90mm

Bottom Cover Plate Diameter : 90mm

• Gas Hole

Gas Hole : G1/8

• Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : M8X1.25

Distance between Top Cover Plate Screws and Air Holes : 20mm

Bottom Cover Plate Screw (Nut) Tooth : 2XM8X1.25

Screw Center Distance of Bottom Cover Plate : 20mm

• Rubber Bellows

Rubber Bellows MAX Diameter: 145 mm
The Working Stroke : MAX 110 mm to MIN 50 mm
Maximum Height : 110 mm
Minimum Height : 50mm

Product Technical Data

Force @ 40 psi at 3.5 in. [Ibf]: 317

Force @ 60 psi at 3.5 in. [Ibf]: 492

Force @ 80 psi at 3.5 in. [Ibf]: 669

Force @ 100 psi at 3.5 in. [Ibf]: 850

Force @ 120 psi at 3.5 in. [Ibf]: 1040

Force @ 40 psi at 4.0 in. [Ibf]: 199

Force @ 60 psi at 4.0 in. [Ibf]: 331

Force @ 80 psi at 4.0 in. [Ibf]: 467

Force @ 100 psi at 4.0 in. [Ibf]: 670

Force @ 120 psi at 4.0 in. [Ibf]: 754

Cross References

Shipping

• Quality : Our gas spring can open and close for a 50,000 times
• Our products are meetiing the IATF 16949:2016 International Standard .
• We provide100%testedfull checking in every producess
• With one year guarantee except man-made trouble.
• Packing: 1 piece in one plastic bag,then 50-100 in a carton.
• Marking: We can mark your logo as request.
• No specified, we will mark our logo.
• Shipping: We can accept your appionted forwarder.
• Delivery term: FOB & EXE & CIF
• Delivery time :7-10 working days.

FAQ

Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
    (2) Recheck the products before shipment to ensure our packaging in good condition.
    (3) Track and receive feedback from our customers.

Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.

Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.

The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.
