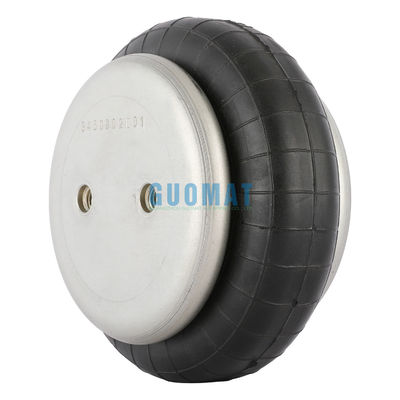

Firestone W01-358-7731 Industrial Air Spring 1/4 NPTF Air Hole Air Shock Absorber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B 5010

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	1B 5010	Spring Material:	Rubber And Stainless
Bellows Type:	Single Convoluted	Brand:	GUOMAT
Minimum Height:	50 MM	Maximum Height:	115 MM
Top/Bottom Cover Plate:	115 MM	OEM Number:	W01-358-7731
Highlight:	W01-358-7731 Industrial Air Spring , Industrial Air Spring Firestone

Firestone W01-358-7731 Industrial Air Spring 1/4 NPTF Air Hole Air Shock Absorber

Product Specifications

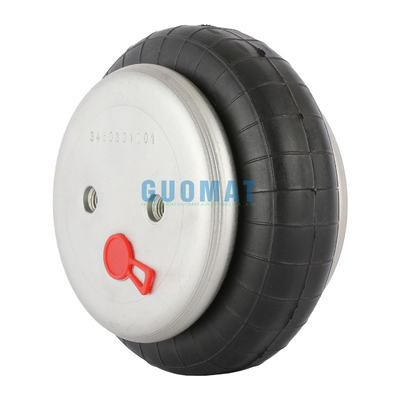

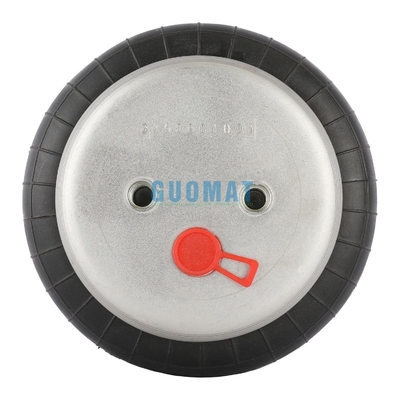

Top View

Screw (Nut) Tooth:2X3/8-16UNC

Screw Center Distance:44.5mm

Air Inlet And Screw Diameter:22mm

Air Inlet:1/4 NPTF

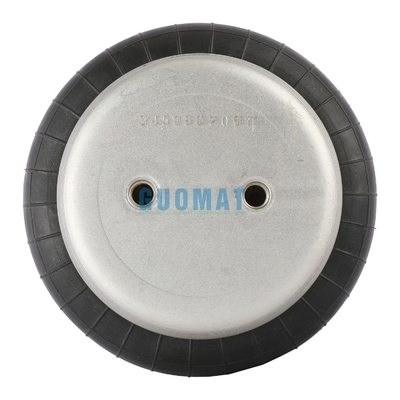

Bottom View

Screw (Nut) Tooth:2X3/8-16UNC

Screw Center Distance:44.5mm

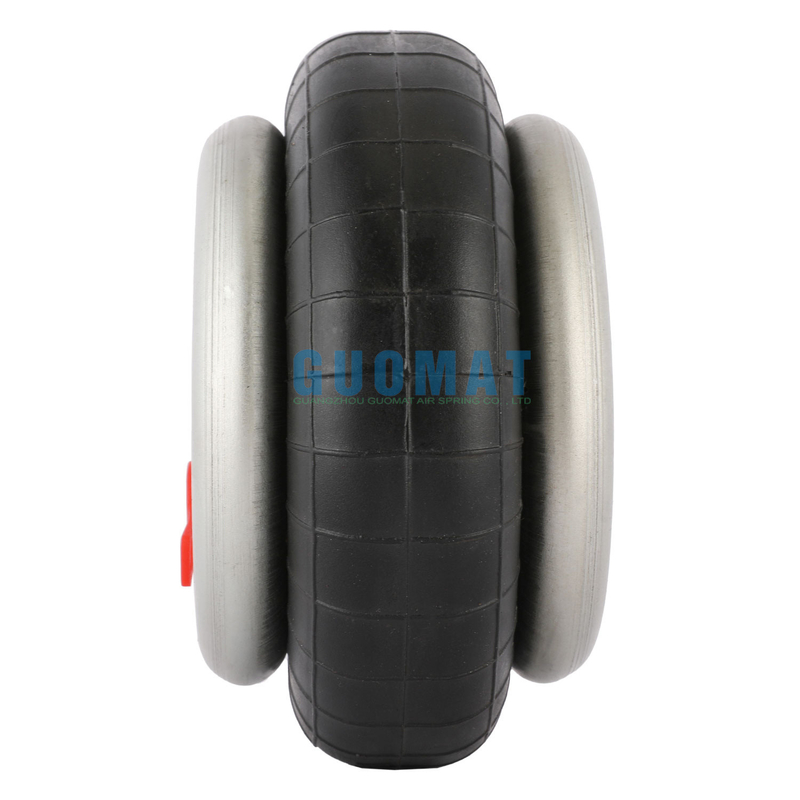

Rubber Bellow

Rubber Bellow: MAX.165MM

The Working Stroke:MAX 115mm to MIN 50mm

Maximum Height:115mm

Minimum Height:50mm

Compression Height:65mm

Product Technical Data

Force F [kN]

Pressure P	[bar]	3	4	5	6	7	8
Height [mm]	120	2.6	3.5	4.4	5.3	6.2	7.2
	110	3.1	4.2	5.2	6.3	7.4	8.5
	100	3.5	4.7	5.9	7.2	8.3	9.6
	90	3.9	5.2	6.5	7.9	9.2	10.5
	80	4.2	5.6	7.0	8.5	9.8	11.3
	70	4.5	5.8	7.4	9.0	10.4	12.0

Cross References

Style 131	Blind nuts, 1/4 NPT	W01-358-7731, W013587731, W01 3587731 WO1-358-7731, WO13587731, WO1 358 7731
	Blind nuts, 3/4 NPT	W01-358-7742, W013587742, W01 358 7742 WO1-358-7742, WO13587742, WO1 358 7742
	Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)	W01-358-0127, W013580127, W01 358 0127 WO1-358-0127, WO13580127, WO1 358 0127
	3/4 NPT (only) upper plate, blind nuts lower plate	W01-358-7729, W013587729, W01 358 7729 WO1-358-7729, WO13587729, WO1 358 7729
	Rubber bellows only	W01-358-0131, W013580131, W01 358 0131 WO1-358-0131, WO13587729, WO1 358 7729

Applications

Off-highway vehicles such as construction equipment, agricultural machinery, and mining equipment, where air springs are used for suspension and to improve ride comfort and stability.
Press equipment and part extraction, where air springs are used as actuators.
Test equipment and motion simulators , where air springs are used as vibration isolators and to reduce shock and noise.
Precision equipment and machinery, such as printing presses, where air springs are used for vibration isolation and leveling.
Textile machinery, where air springs are used to provide a smooth and stable ride, improve the quality of the finished product, and reduce the wear and tear on machinery.
Paper mill machinery, where air springs are used for suspension, levelling and vibration isolation.
Cheese and dairy industry machines

FAQ

Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.

Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.
