| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B5500 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD69.9-79.9/PC |
| Model NO.: | 1B5-500 | Spring Material: | Rubber |
|---|---|---|---|
| Structure: | Single Convoluted | Car Make: | Guomat Or Neutral |
| Brand: | Guomat Or Neutral | Damping Force Direction: | Bidirectional |
| Quality: | 100 % Tested | Cetification: | ISO/Ts16949:2009 |
| Function: | Reduce Shock | Cross Reference: | 1b5-500 |
| Transport Package: | Strong Cartons | Specification: | Rubber |
| Trademark: | GUOMAT | Origin: | Guangzhou, China |
| HS Code: | 8708809000 | Supply Ability: | 1000PCS/Week |
| After-sales Service: | 12 Months | Warranty: | 12 Months |
| Part: | Air Spring | Position: | Guomat Or Neutral |
| Type: | Gas-Filled | Spring Type: | Air Spring |
| Samples: | US$ 129.9/Piece 1 Piece(Min.Order) | Request Samp | Customization: | Available | Customized Request |

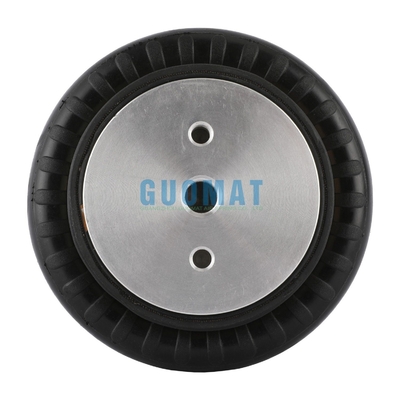

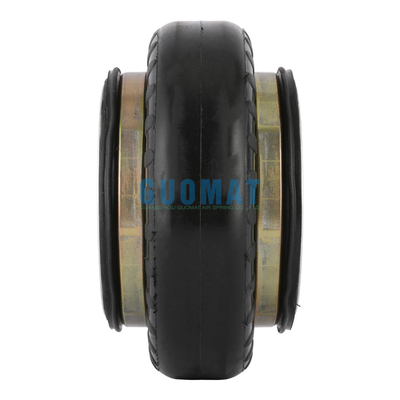

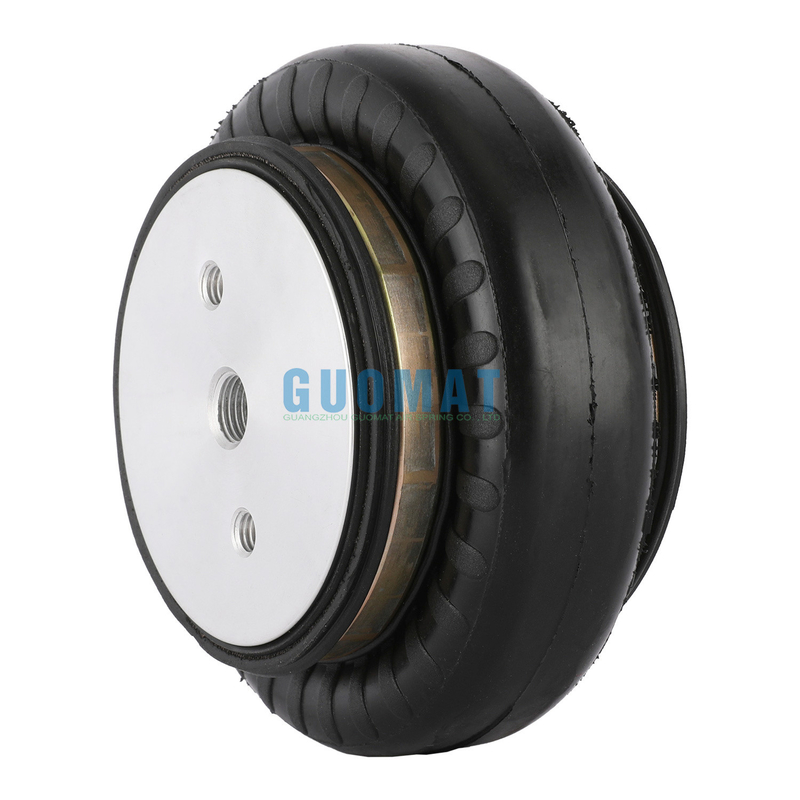

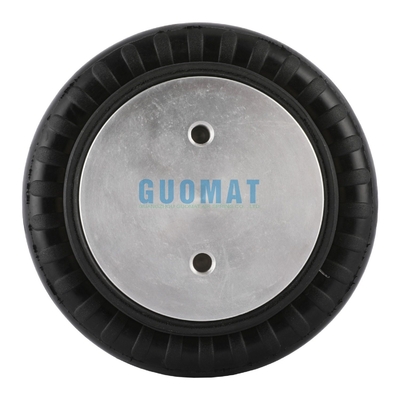

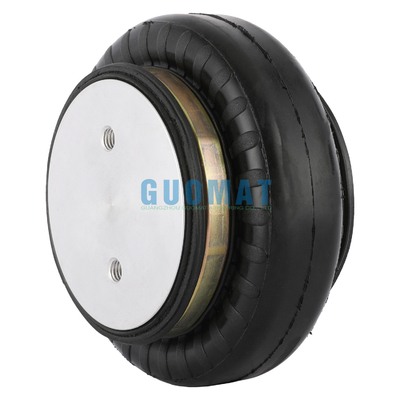

1B5-500 Goodyear Industrial Rubber Bellow Air Spring Convolute Style Air Pillow
Item Name : Steel Single Convoluted Air Bag
Product Number : 1B5-500
Factory Warranty : 12 Months
Product Material : Natural Rubber and Steel
Package : Strong Carton Box
Delivery Time : 2-8 working day
Spring Type : Single Convoluted Air Spring
Goodyear Original:1B5-500
Goodyear Original:1B5 500
Goodyear Original:1B5500
Goodyear Rubber Bellows NO. 1B5 579-913-500
Goodyear Rubber Bellows NO. 1B5 579 913 500
Goodyear Rubber Bellows NO. 1B5 579-913-500
| Material Code | Nitrile Butadiene Rubber (NBR) |
| Maximum Ambient Temperature (°C) | 70 |
| Maximum Working Pressure (Bar) | 8 |
| Minimum Ambient Temperature (°C) | -40 |
| Net Weight | 0.85 KG |
| MAX Diameter | 145 MM |
| Number of Convolutions | Single |
| Port Size | G1/4 |
| Stroke Length | 50.8 MM |
| Cylinder Type | Standard |
| End Cap Material | Aluminum |
Characteristics of Air Springs
1. Highly durable, precisely designed and cost-effective for a variety of drive and vibration isolation applications
2. Offering superior quality and performance - time-tested design, fabric reinforced neoprene or 3. Natural rubber flexible member construction and corrosion resistant end retainers
4.As actuators, they provide linear or angular motion
5. Compared with the cylinder, it has a good stroke to compression height ratio
6. Accepts various drive media such as air, water, nitrogen or antifreeze
7. As isolators, they can effectively reduce the harmful effects of vibrations
8. Simultaneously isolate vibration and adjust load height, and achieve consistent vibration isolation under different loads
GUOMAT offers a variety of air spring types to suit your drive or isolation needs
