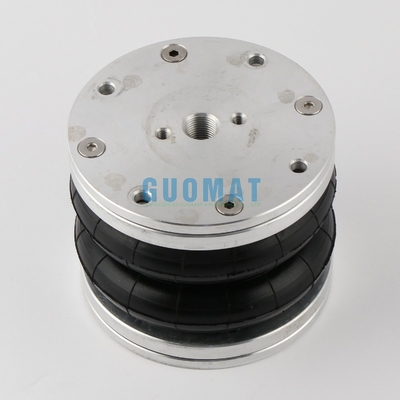

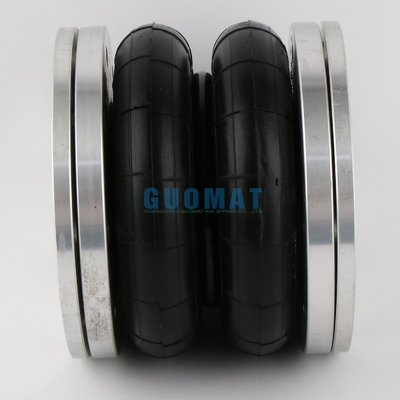

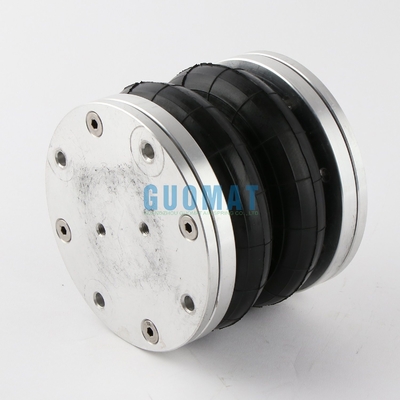

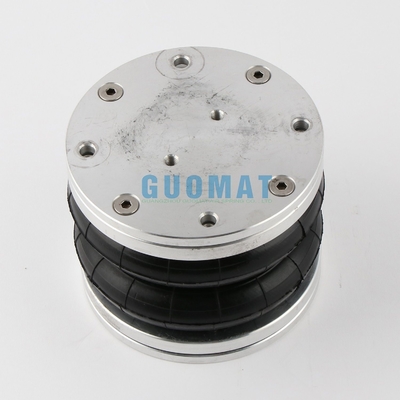

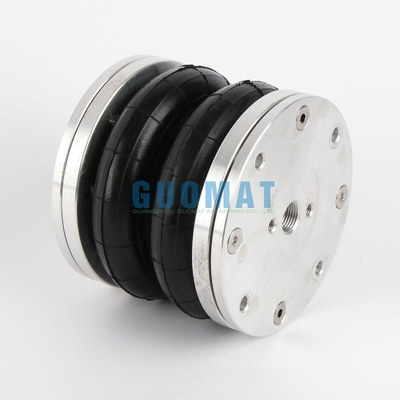

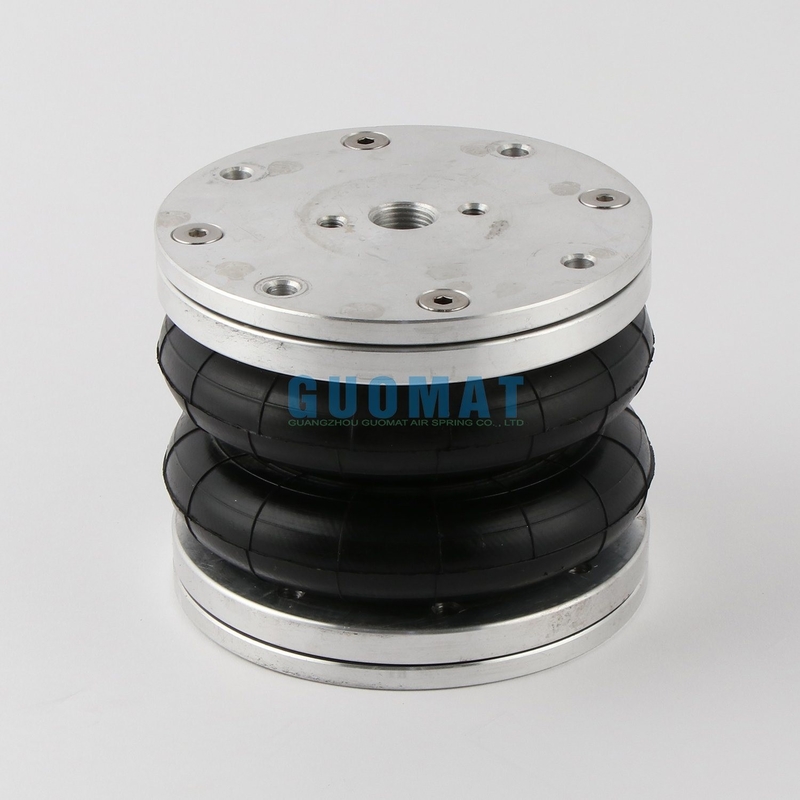

Firestone W01-R58-4070 Double Convoluted Type Air Spring Assembly PM/31062 Norgren

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6X2

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Spring Style:	Two Convoluted Type	Quality:	100 % Tested
Function:	Reduce Shock	Transport Package:	Strong Cartons
Specification:	Rubber	Trademark:	GUOMAT
Firestone:	W01-R58-4070	Norgren:	PM/31062
Highlight:	Double Convoluted Type Air Spring , W01-R58-4070 Double Convoluted Type Air Spring

Firestone W01-R58-4070 Double Convoluted Type Air Spring Assembly PM/31062

Air Spring 6 x 2 Series

For Firestone Air Spring : W01-R58-4070
For Firestone Air Spring: W01R584070
For Firestone Air Spring : W01 R58 4070
For Firestone Air Spring: W01/R58/4070
For Firestone Air Spring: w01-r58-4070

For Dunlop Air Bags : SP2917
For Dunlop Air Bags : SP 2917
For Dunlop Air Bags : SP/2917

For Norgren Air Bellow : PM 31062
For Norgren Air Bellow : PM31062
For Norgren Air Bellow : PM/31062

The Specification of 6x2 Air Spring Actuator

Product Series	Double Convoluted Assembly
Nominal Diameter	6 (inch)
Number of Convolutions	2
Port Connection	G1/2
Maximum Operating Pressure	8 bar
Top Cover Diameter(Width)	153.5mm
Bottom Cover Diameter(Width)	153.5mm
Rubber Bellow MAX Diameter	175mm
Installation Height Minimum	80mm
Installation Height Maximum	195mm
The Working Stroke	115mm
Top Cover Screw (Nut) Teeth	4XM8
Bottom Cover Screw(Nut) Teeth	4XM8
Material Cover Plate	Aluminum
