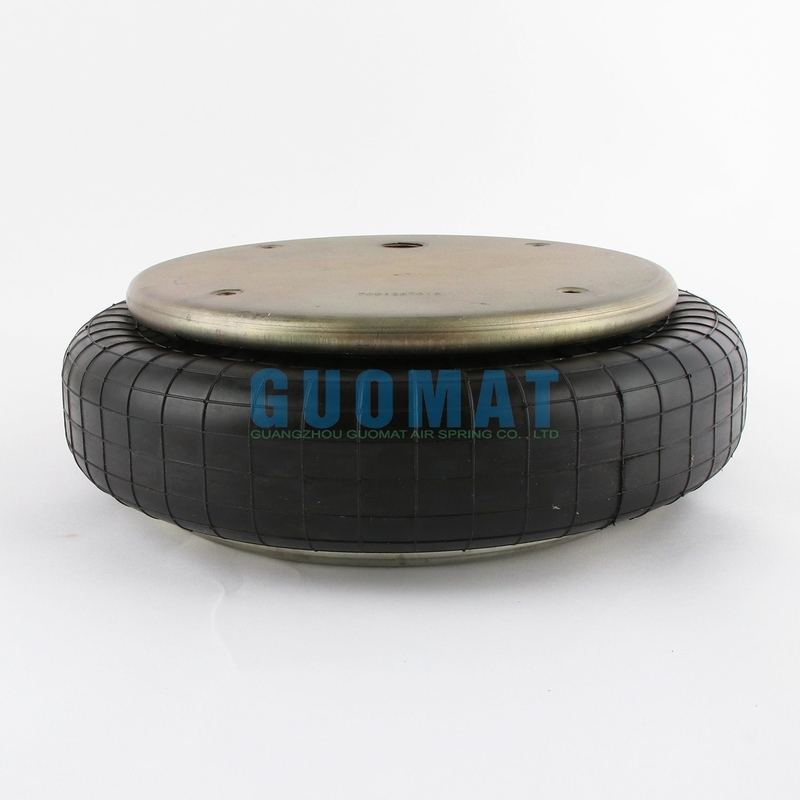

Contitech FS 530-14 Industrial Bellows Actuator Rubber MAX. OD. 406MM Air Bag
Product Description
FS 530-14 3/4 Technical Data
Top Cover Plate Diameter:Ø289mm
Gas Hole / Air inlet:3/4NPTF
Screw Center Distance of Top Cover Plate:158.8mm
Top Cover Plate Screw (Nut) Tooth:4X3/8-16UNC
Bottom Cover Plate Diameter:Ø289mm
Screw Center Distance of Bottom Cover Plate:158.8mm
Bottom Cover Plate Screw(Nut)Tooth:4X3/8-16UNC
The Rubber Bellow MAX Diameter:406mm
The Working Stroke:81mm-160mm
We have two different kinds of air holes
1.1B53014-1/4
With clamped plates
G 3/4 air inlet
2.1B53014-3/4
With clamped plates
G 1/4 air inlet
OEM Information
Contitech Number: FS530-14
Contitech Number: FS530-14 CI
Contitech Number: FS530-14 CI 3/4
Contitech Number: FS530-14 CI 3/4 NPT
Contitech Number: FS530-14 CI 3/4 NPT (OS)
Contitech Number: FS 530-14
Contitech Number: FS 530-14 CI
Contitech Number: FS 530-14 CI 3/4
Contitech Number: FS 530-14 CI 3/4 NPT
Contitech Number: FS 530-14 CI 3/4 NPT (OS)
Product Core Competitiveness
1. Imported rubber
It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.
2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.
3. Ensure in-situ installation
The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.
4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.
FAQ
Q1: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world |
Q2: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. |
Q3: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers. |

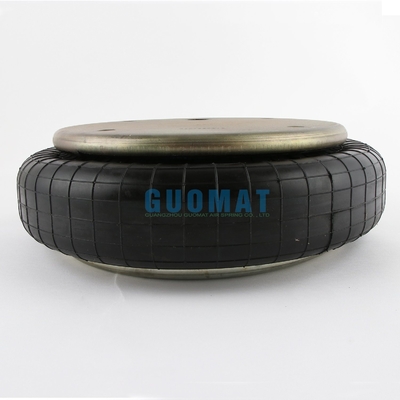

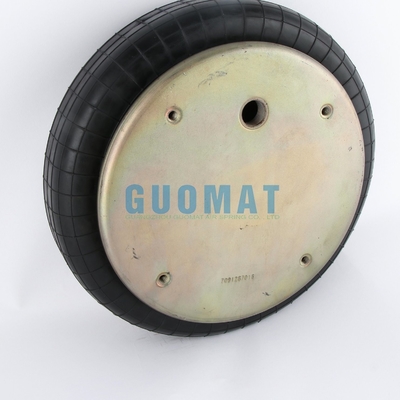

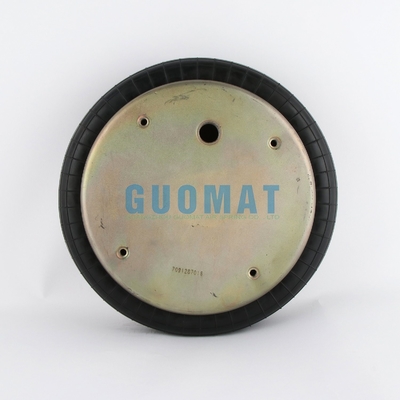

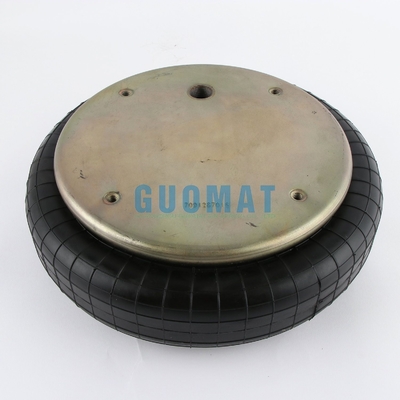

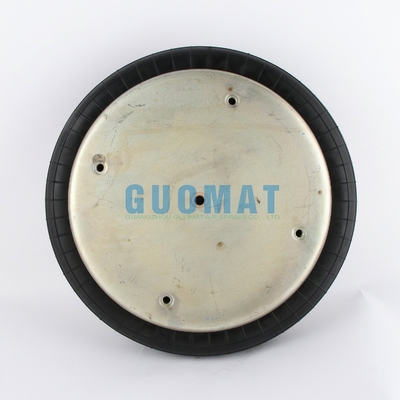

Detailed Photos
Company Profile
Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.
The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.
