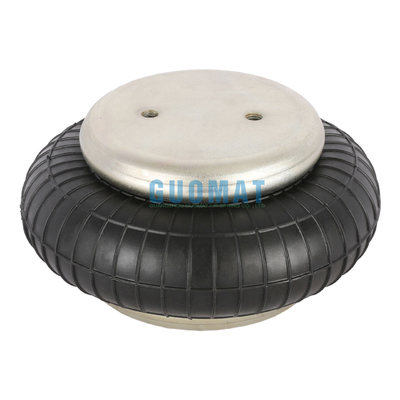

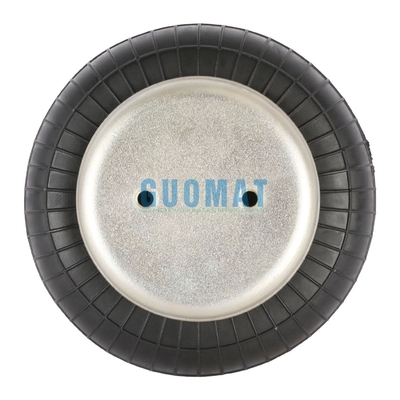

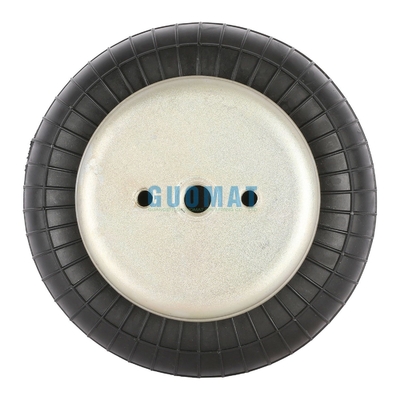

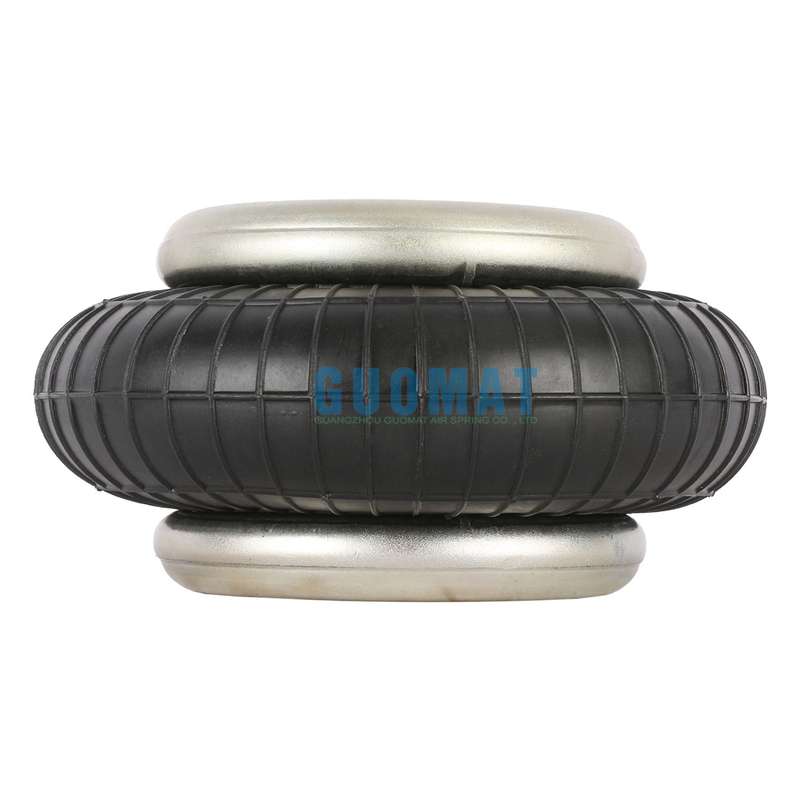

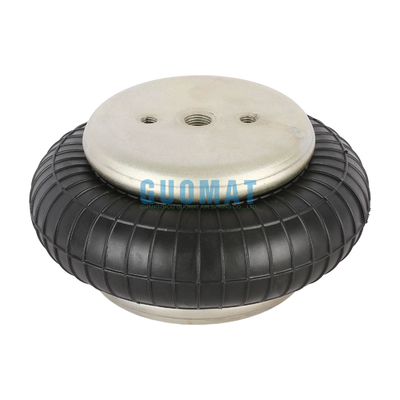

Phoenix SP1B05 FS70-7 Single Convoluted Contitech Air Spring G1/4 Air Bellows

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B7070

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Warranty:	12 Months	OEM NO.:	FS70-7
Function:	Reduce Shock	Suspension Type:	Active Air Suspension
Type:	Gas-Filled	Sample:	Available
Suspension System:	Air Suspension Spring	Are Fitting:	G1/4
Highlight:	Single Convoluted Contitech Air Spring , Phoenix SP1B05 Contitech Air Spring

Phoenix SP1B05 FS70-7 Single Convoluted Contitech Air Spring G1/4 Are Bellows

GUOMAT Number	1B7070
Contitech	FS 70-7
Phoenix	SP 1B05
Bos-ch	822419002
Fe-sto	EB-165-65
Weforma	WBE 200-E1

Description : GUOMAT No. 1B7070 is used in industrial equipment . The natural outer diameter of the air spring with small diameter is 145MM.

OEM Number : FS 70-7 / SP 1B05

Model : For Industrial Machine

Material : Rubber Steel

Warranty : One Year

Condition : Brand new

Packing : Neutral Packing Or As Requirement

Delivery : About 2-8 working days after receive your payment.

Air spring should pay attention to in the application
1. It is forbidden to use the air spring beyond the recommended safe extension height.
2. In order to prolong the service life of the air spring, do not use the air spring below the minimum compression height.
3. Do not use the air spring under the pressure exceeding 0.7Mpa.
4. Do not use the air spring in a twisted state.

Single Convolution Air Springs Code Crossover Chart

GUOMAT Model	Firestone		Contitech
GUOMAT Model	Style	Model	Code	Model
1B0010	16	W01-358-0010	62242	FS 50-5 S VP
1B6140	16	W01-M58-6140	61388	FS 50-5 CI G1/4
1B6996	16	W01-358-6996		FS
1B7001	16	W01-358-7001	75246	FS 50-5 CI 1/4 NPT
1B0017	16	W01-358-0017		FS
1B5005				FS 50-5 RI
1B0131	131	W01-358-0131	60512	FS 70-7 CI S VP
1B7070	131	W01-M58-6155	2681015000	FS 70-7 CI G1/4
1B7731	131	W01-358-7731	75240	FS 70-7 CI G1/4 NPT
1B7742	131	W01-358-7742
1B0127	131	W01-358-0127
1B7070R				FS 70-7 RI
1B0100	110	W01-358-0100	63457	FS 100-10 S VP
1B100-10	110	W01-M58-6145	65745	FS 100-10 CI G 1/4
1B7451	110	W01-358-7451	65529	FS 100-10 CI 1/4 NPT
1B7484	110	W01-358-7484
1B0112	110	W01-358-0112
1B100-10R				FS 100-10 RI
1B0133	116	W01-358-0133	72994	FS 120-9 S VP
1B120-9 G1/4	116	W01-M58-6166	61358	FS 120-9 CI G 1/4
1B120-9 G3/4	116	W01-M58-6165	2681030000	FS 120-9 CI G 3/4
1B7564	116	W01-358-7564	75360	FS 120-9 CI 1/4 NPT
1B7561	116	W01-358-7561	75349	FS 120-9 CI 3/4 NPT
1B7568	116	W01-358-7568
