FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
Product Details
| Item |
Industrial Air Spring |
Material |
Rubber+Steel |
| Warranty |
12 Months |
Application |
For Industrial |
| Number of Convolution |
1 |
MOQ |
10 Pieces |
| Function |
Reduce Shock |
Other Name |
Air Bellow, Air Bags |
Contitech OEM Information
Continental Contitech FS200-10
Continental Contitech FS 200-10
Continental Contitech FS200-10 CI
Continental Contitech FS 200-10 CI
Continental Contitech FS 200-10 CI 3/4 NPT
Continental Contitech FS 200-10 CI 1/4 NPT
Continental Contitech FS 200-10 CI 3/4 NPT OS
Continental Contitech FS 200-10 CI 1/4 NPT OS
About GUOMAT 1B200-10 Air Spring
GUOMAT Number: 1B200-10
Replace Firestone number: W01-M58-6374
Replace Firestone number: W01 M58 6374
Replace Firestone number: W01M586374
Replace Contitech Number: FS 200-10
Replace Phoenix Number: SP1B12
Replace Phoenix Number: SP 1B12
Replace Phoenix Number: SP 1B 12
Dunlop(FR) Number: 9''1/4X1
Dunlop(FR) Number: S09101
Bosch Number: 822419004
Festo Number: EB-250-85
Norgren Number: PM/31091
Norgren Number: PM31091
Norgren Number: PM 31091
Norgren Number: 8 1/4 X1
Contitech FS200-10 Single Convolution Air Actuator
- Rubber bellows only
- With crimped plates,G1/4 air inlet A=44.5mm excentrical
- With crimped plates and bumper A=44.5mm excentrical
- With crimped plates,G3/4 air inlet A=38.1mm excentrical
- With stainless steel crimped plates,G3/4 air inlet A=38.1mm excentrical
Vibration Isolation – Dynamic Characteristic Values
Design height H: recommended 110mm, minimum 90mm
| Pressure p |
[bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol.V(I) |
| Force (Load) |
[kN] |
6.1 |
8.2 |
10.4 |
12.6 |
14.8 |
17.2 |
2.9 |
| Spring rate |
[N/mm] |
166 |
212 |
258 |
304 |
348 |
393 |
| Natural frequency |
[Hz] |
2.6 |
2.5 |
2.5 |
2.5 |
2.4 |
2.4 |

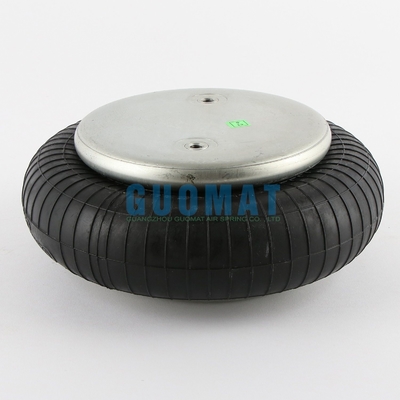

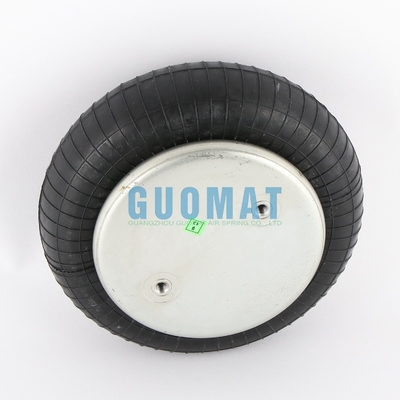

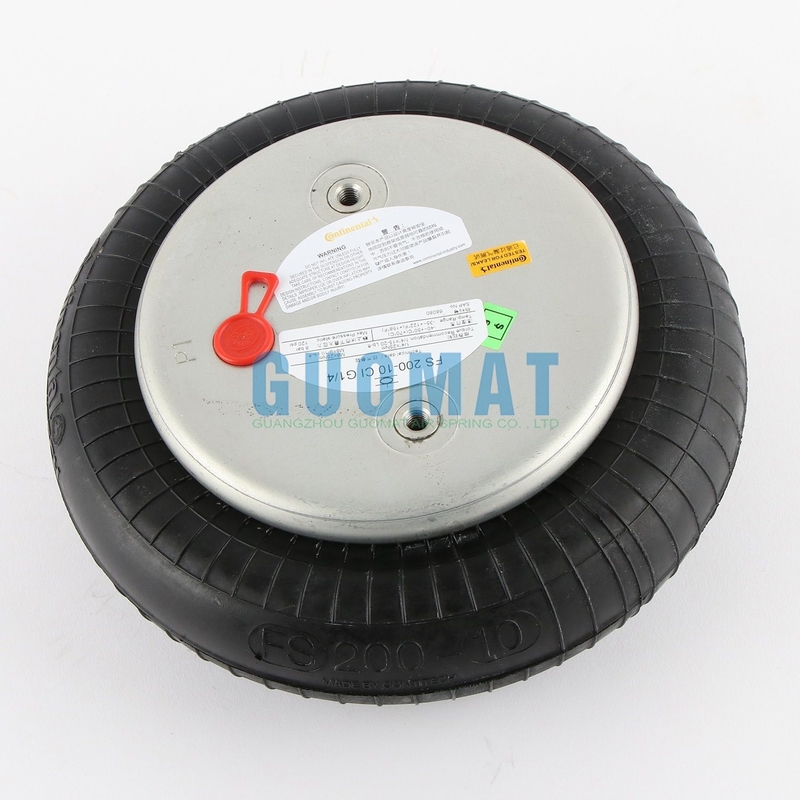

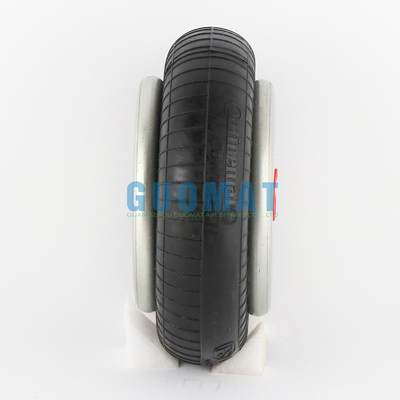

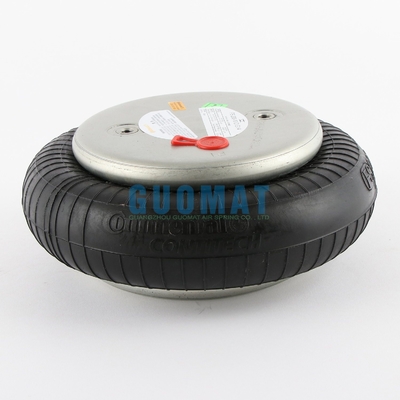

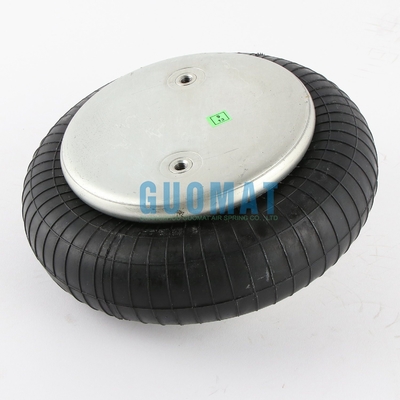

Product Images
