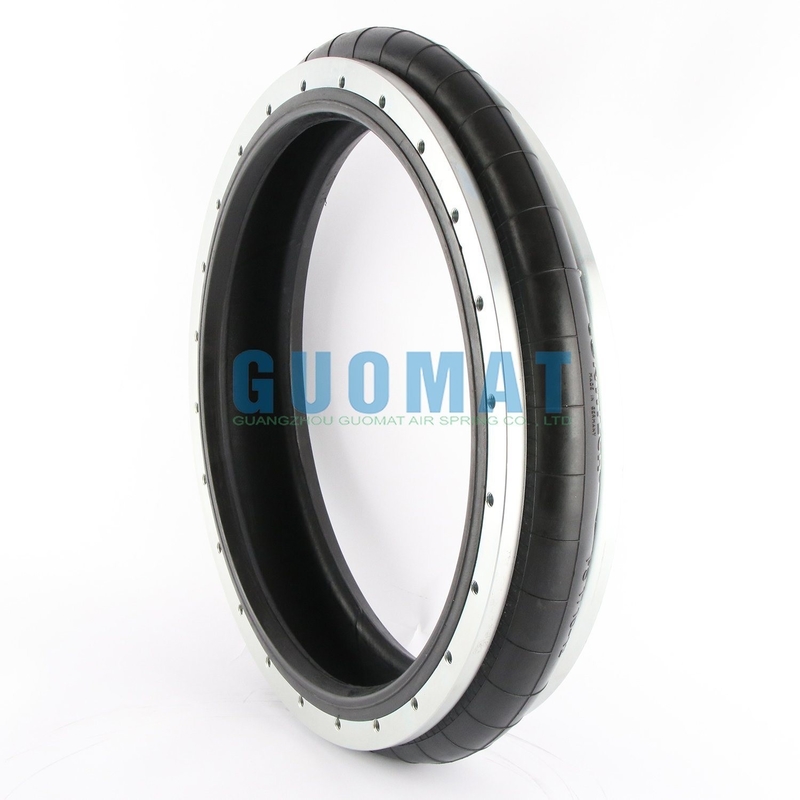

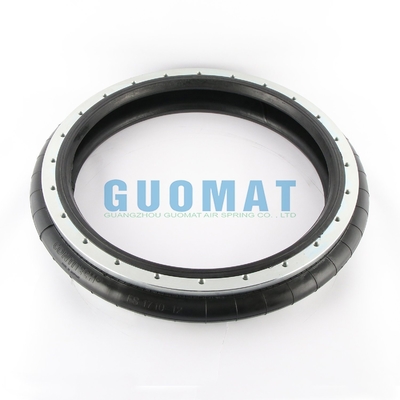

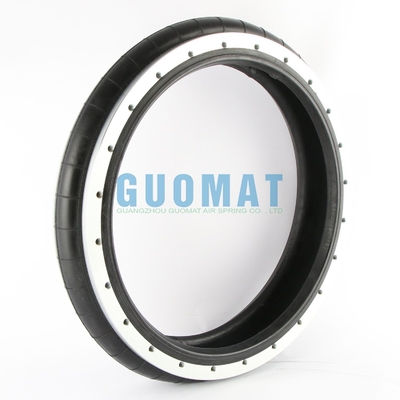

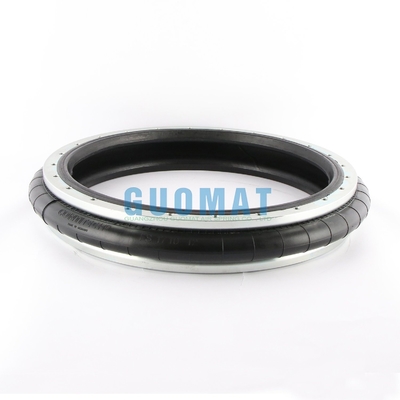

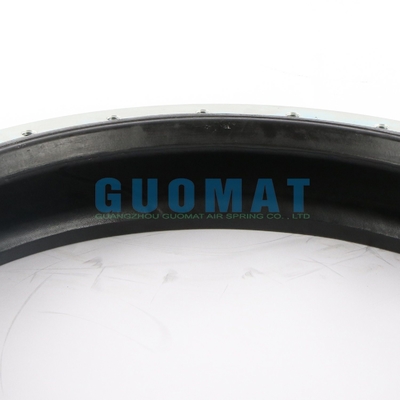

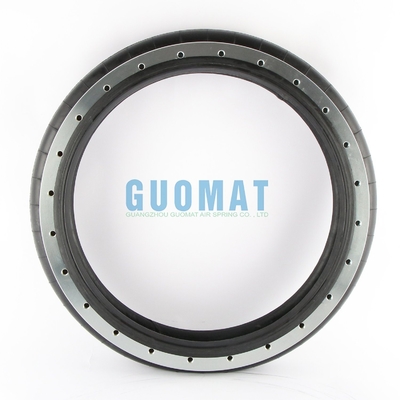

FS 1710-12 Contitech Rubber Bellows M10 Bolts Industrial Air Spring

Product Details:

Brand Name:	Contitech
Certification:	ISO/TS16949:2009
Model Number:	FS 1710-12

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD159.9-199.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Contitech No.:	FS1710-12	Material:	Rubber
Structure:	Single Convoluted	Function:	Reduce Shock
HS Code:	8708809000	Part:	Air Spring
Position:	Industrial Machine	Type:	Gas-Filled
Highlight:	M10 Bolts Industrial Air Spring , FS 1710-12 Industrial Air Spring

FS 1710-12 Contitech Rubber Bellows M10 Bolts Industrial Air Spring

Product Details

Part Number	1B 1710-12
OEM Number	Contitech FS1710-12
Working Temperature	-40°C bis +70°C
Failure Testing	≥3 millions
Maximum Outer Diameter	Ø585mm
The Diameter of the Flange	Ø517mm
Nominal Diameter of the Flange	Ø482mm
Distance Between Bolts	Ø482mm
Bolts	24XM10
Maximum Height	177mm
Minimum Height	55mm

Gas-Filled Hole / Air Inlet: By filling air porosity for inflatable air spring
Bolt / Mounting Stud: Bolt is fixed as the installation of air spring in car or equipment
Upper Retainer: Upper Retainer to protect the whole air spring
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision
Flexible Bellows: The main part can lock the air and flexible activities up and down
Piston/ The base: Base is also carrying fluctuation pressure, sealed air and make skins can according to the fluctuation of the trajectory
Mounting Stud: fixed as the installation of air spring in car or equipment

Type	Order No.
Rubber bellows only
With bead ring,45 mm bolts.nuts and washers

Pneumatic application – static characteristic values

Force F (kN)

Pressure p	bar	3	4	5	6	7	8	Vol.V(l)
Height H (mm)	140	48.2	64.4	81.2	98	115	132	28
	120	53.8	72.1	90.6	109	128	147	24
	100	60.2	80.2	101	121	142	162	19
	80	65	86.6	109	130	152	174	15
	60	67.8	90.2	113	136	158	181	9.5
