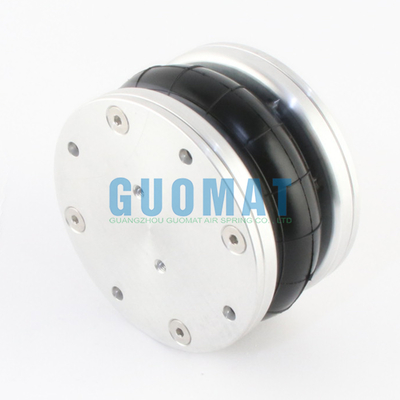

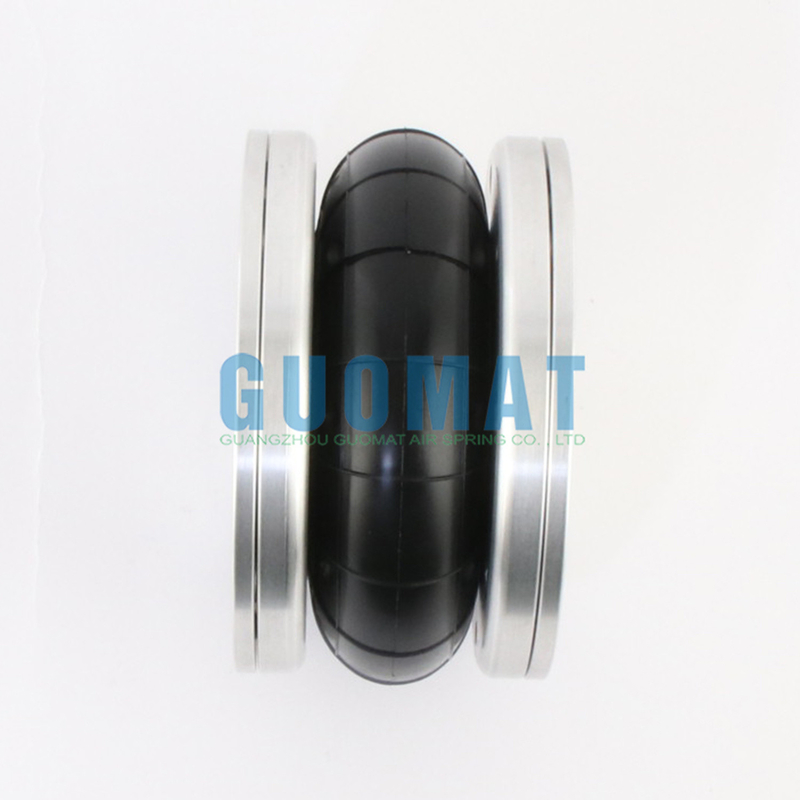

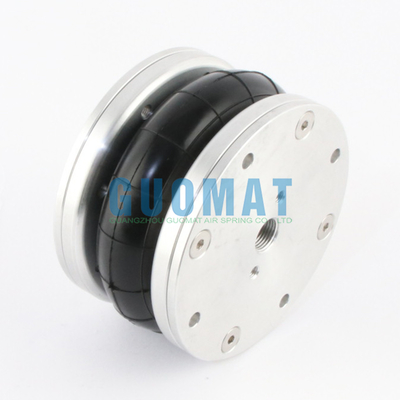

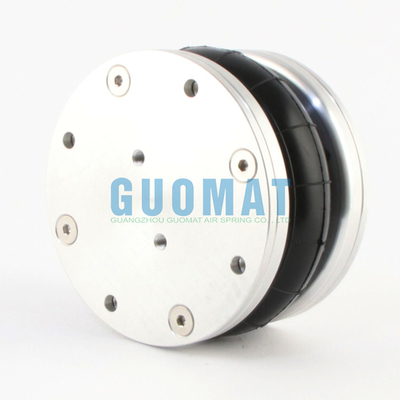

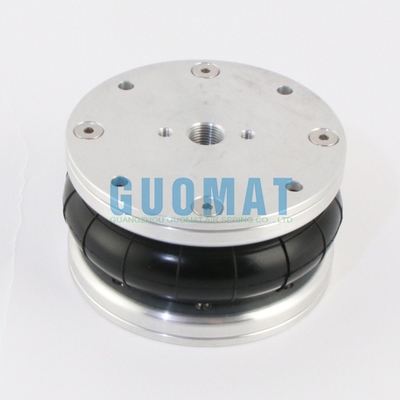

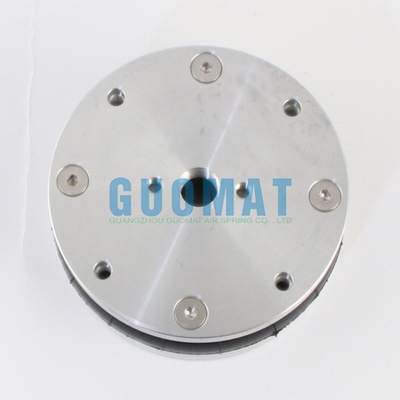

1B6X1P Industrial Air Spring Replacement FS 76-7 DS CR Continental Air Lift Cushion

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B6X1P

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-129.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Material:	Rubber+Aluminum	Structure:	Single Convoluted
Quality:	100% Tested	Transport Package:	Cartons
After-sales Service:	1 Year	Position:	Industrial Machine
Contitech:	FS 76-7 DS CR	Firestone:	W01-R58-4078
Highlight:	1B6X1P Industrial Air Spring , FS 76-7 DS CR Industrial Air Spring , Industrial Air Spring Replacement

1B6X1P Industrial Air Spring Replacement FS 76-7 DS CR Continental Air Lift Cushion

Product Details

Contitech Part Number FS76-7
Contitech Part Number FS 76-7
Contitech Part Number FS76-7 DI G1/2 CR
Contitech Part Number FS 76-7 DI G1/2 CR
Fire-stone Part Number W01-R58-4078
Fire-stone Part Number W01 R58 4078
Fire-stone Part Number W01R584078
Fire-stone Part Number WO1-R58-4078
Fire-stone Part Number WO1 R58 4078
Fire-stone Part Number WO1R584078
Dunlop Part Number 6X1
Dunlop Part Number SP2913
Dunlop Part Number SP 2913
Norgren Part Number PM/31061
Norgren Part Number PM 31061
Norgren Part Number PM31061
Parker Part Number 9109004A

6''X1 Air Spring Technical Parameters

Top Cover Plate: 152.5mm

Bottom Cover Plate: 175mm

Gas Hole: G1/2

Thread: M8

Distance Between Threads: 127mm

Max. Height: 110mm

Min.Height: 55mm

Vibration Isolation Applications - Dynamic Eigenvalues

Design height H: recommended 90 mm, minimum 75 mm

Pressure P	bar	3	4	5	6	7	8	Volume
Force (Load) F	KN	3.1	4.2	5.3	6.4	7.5	8.7	0.9
Spring Stiffness C	N/cm	1585	2005	2455	2860	3315	3745
Natural Frequency f0	Hz	3.5	3.4	3.4	3.3	3.3	3.3

Pneumatic Applications - Static Characteristic Values

Force F (kN)

Pressure P	bar	3	4	5	6	7	8	Volume
Height H (mm)	100	2.3	3.1	4.0	4.9	5.8	6.8	1.0
	90	3.1	4.2	5.3	6.4	7.5	8.7	0.9
	80	3.8	5.1	6.4	7.8	9.1	10.5	0.7
	70	4.5	6.0	7.6	9.1	10.7	12.3	0.6
	60	5.3	7.1	8.8	10.6	12.4	14.2	0.4
