Goodyear Air Spring 1B5-510 For Trucks / Trailers Air Actuator Suspension

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B5510

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B5510	Structure:	Single Convoluted
Brand:	GUOMAT	Function:	Reduce Shock
Condition:	Brand New	After-sales Service:	1 Year
Min Height:	1.8 Inches	Max Height:	4.8 Inches
Highlight:	Goodyear Air Spring 1B5-510 , Goodyear Air Spring For Trucks

Goodyear Air Spring 1B5-510 For Trucks / Trailers Air Actuator Suspension

Product Specifications

Goodyear #: 1B5-510
Bellow Type: Single
Automann Bellow #:
Firestone Bellow #:
Goodyear Bellow #: 579-91-3-501
Contitech Bellow #:
Triangle Bellow #:
Bottom Plate/Pison Type:
Top Plate Hole/Stud Qty: 2
Top Plate Dia: 3.75
Top Plate C to C Diameter: 1.75
Bottom Plate Hole Stud Qyt: 2
Bottom Plate Dia: 2.75
Bottom Plate C to C Diameter: 1.75
Bottom Plate Part #:
Bottom Plate Alignment: Parallel
Bumper: No
Bracket:
Min Height: 1.8
Max Height: 4.8

Cross References

GUOMAT	1B5510
GOODYEAR	1B5-510
GOODYEAR	1B 5-510
GOODYEAR	1B5 510
GOODYEAR	57913501
GOODYEAR	579 91 3 501
GOODYEAR	579-91-3-501
ENIDINE	YI-1B5-510
ENIDINE	YI 1B5 510
ENIDINE	YI1B5-510

Detailed Technical Data Parameters

GUOMAT 1B5510	GOODYEAR 1B5-510
Cover diameter: 85mm Threaded hole: M8*15mm Air hole: G1/4 Center distance between threaded holes: 44.5 mm Maximum outer diameter (at 0.7Mpa): 150mm Maximum height: 120mm Minimum height: 50mm Compression height: 70mm	Cover diameter: 3.75 inches Threaded holes: Tapped Hole on Top Retainers - 3/8-16, on Pistons - 1/2-13 Center-to-center distance between threaded holes: 1.75 inches Air hole: 1/4NPTF Maximum height: 4.8 inches Minimum height: 1.8 inches Compressed height: 3 inches

Applications

Application of rubber air springs in lifting equipment

Traditional lifting equipment uses cylinders or hydraulic cylinders to lift objects, which require large installation space, are difficult to manufacture, heavy, prone to leakage, and inconvenient to repair. After using rubber air springs as lifting elements of lifting equipment, the traditional shortcomings of lifting equipment are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.

Application of rubber air springs in vibration reduction equipment

The advantages of high-frequency vibration isolation, sound insulation and low self-vibration frequency of rubber air springs can better achieve vibration isolation and ensure the safety and stability of the base and control system of the vibration equipment. Therefore, rubber air springs are widely used in equipment such as vibration isolation of vibrating screens and vibration reduction of luxury vehicle seats.

Other uses of rubber air springs

Using rubber air springs as vibration reduction bases can effectively protect precision equipment from damage during transportation, such as the transportation of missiles and control launch devices. Using rubber air springs as support tools, taking advantage of their light weight and easy operation, it is convenient for the maintenance of field vehicles and equipment, etc.

FAQ

Q1: How do you correctly identify the products you need?
A: Supply part number,we can check directly.
Engine and gearbox parts;if you don't know part code,try to found engine or gear model and number.

Q2: What are your packaging conditions?
A: Generally, the goods are packed in neutral white boxes or brown cartons.
If you have a legally registered patent, the goods can be packed in your branded boxes after obtaining your authorization letter.

Q3: How is your delivery time?
A: Generally, it takes 5-8 working days after receiving the advance payment.
The specific delivery time depends on the items and quantity of the order.

Q4: Can you produce according to samples?
A: Yes, it can be developed according to your samples or technical drawings.

Q5: Do you test all goods before delivery?
A: Yes, 100% tested before delivery.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

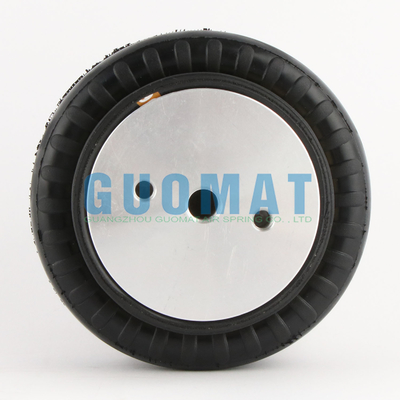

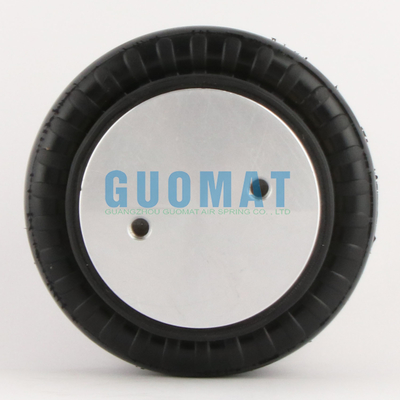

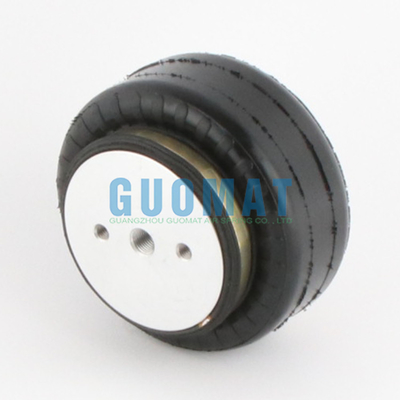

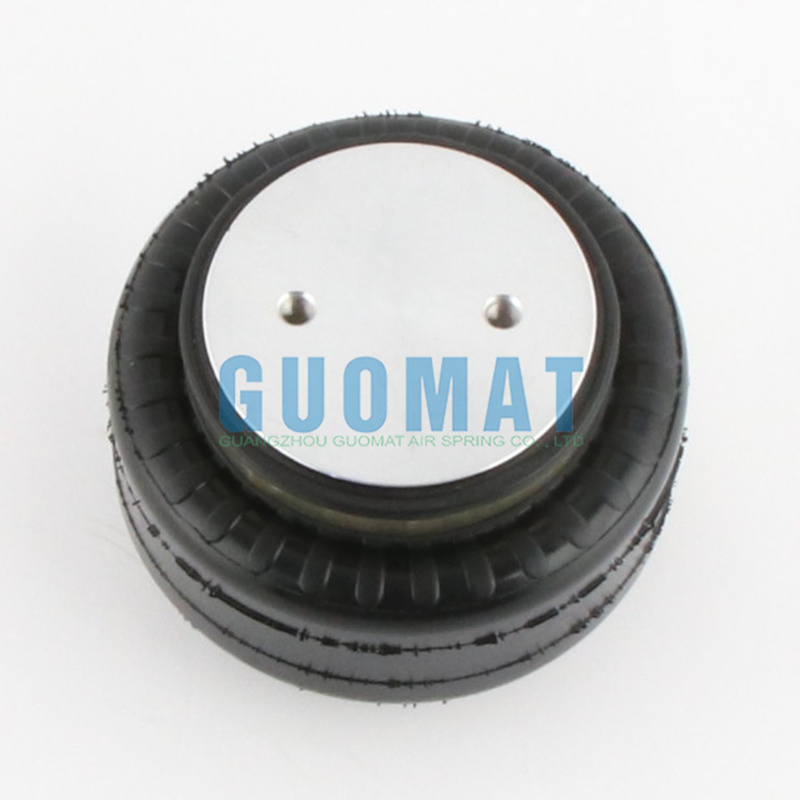

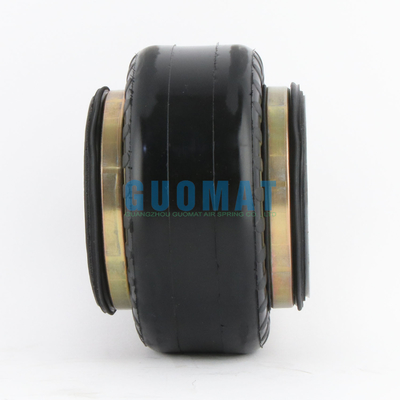

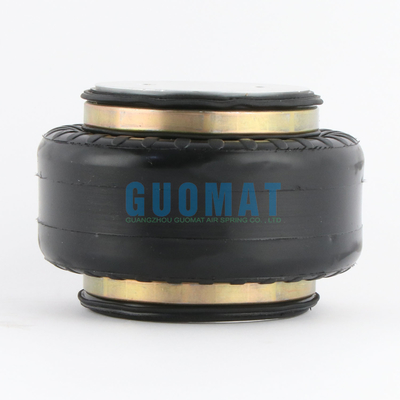

Product Images

FAQ

1. Are you a Manufacture factory?
Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years.

2. What is your main products?
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.

3. Is the sample available?
Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS.

4. What is your warranty term?
There is a 12months warranty for our export products has run out from the date of the shipment.

5. Can i use my own logo and design on products?
YES,OEM is welcomed.

6. I can not find out the items what i want from your website, can you offer the products i need?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
