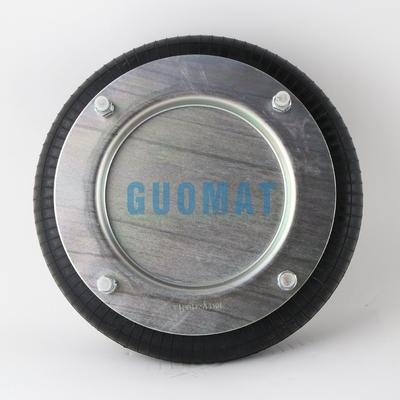

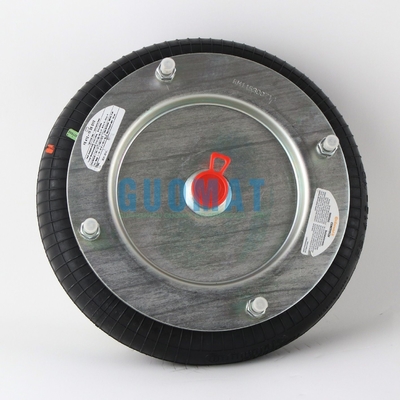

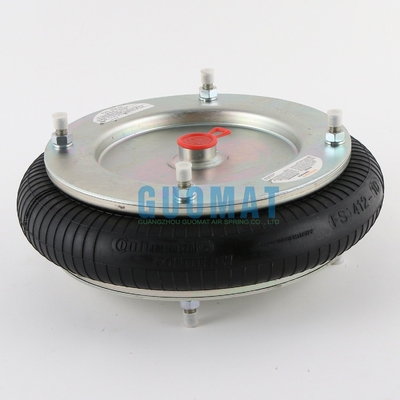

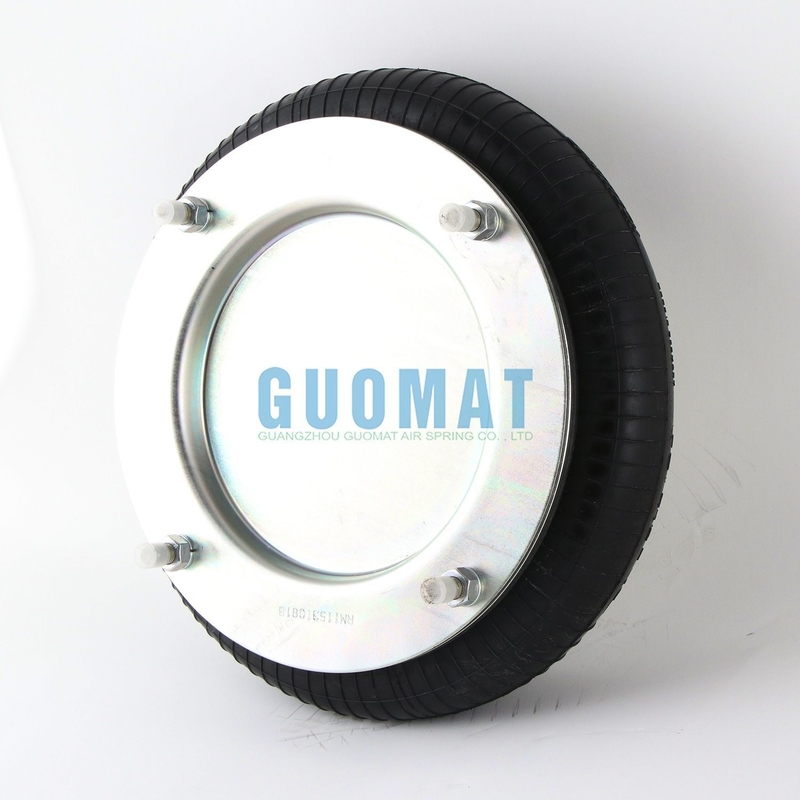

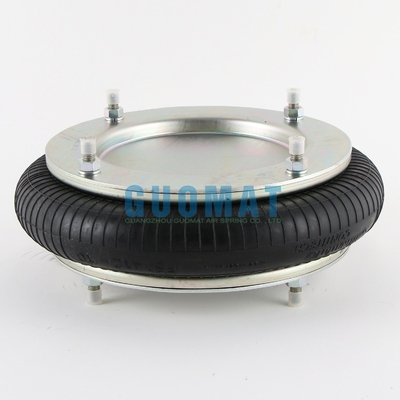

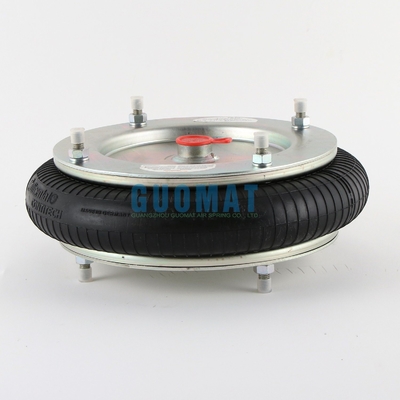

FS412-10 Contitech Air Spring 12''X1 Industrial Air Isolator With Flange Ring

Product Details:

Place of Origin:	Germany
Brand Name:	Contitech
Certification:	ISO/TS16949:2009
Model Number:	FS 412-10

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD159.9-299.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Contitech:	FS 412-10	Function:	Reduce Shock
Quality:	100% Tested	Condition:	Brand New
Cover Plate:	Aluminum Plate	After-sales Service:	1 Year
Position:	Industrial Machine	Bellows Number:	12X1
Highlight:	FS412-10 Industrial Air Spring , Flange Ring Industrial Air Spring

FS412-10 Contitech Air Spring 12''X1 Industrial Air Isolator With Flange Ring

Product Details

Item	Air Spring/Shock Absorber Spring/Air Bellows
Brand	Guomat/Neutral
Model Number	1B 12X1
Material	Rubber and Steel
Warranty	1 Year
MOQ	1 PCS If We Have Stock
Package	(1) Brown Carton (2) Customer Require Packaging (3) Normal Exported Package
Delivery Time	2-8 Working Days
Payment	T/T, L/C, PayPal, Western Union
After Service	(1) Examination Before Shipment (2) Follow Up The Customers' Feedback
Main products we sell	Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump

Replaces These Air Spring(Air Bellows)
CONTITECH : FS 412-10 DS 67962
CONTITECH : FS 412-10 1/2 M10
CONTITECH : FS 412-10 G1/2 M10
CONTITECH : FS 412-10 DS G1/2
CONTITECH : FS 412-10 DS G1/2 M10
CONTITECH : FS 412-10 DS , FS412-10DS , fs 412-10 ds
CONTITECH Bellow : FS 412-10 , FS412-10 , FS41210 , fs 412-10
FIRESTONE Number:W01-R58-4060 , W01 R58 4060 , W01R584060,W01/R58/4060
w01-r58-4060
FIRESTONE Style : 12''x1 , 12x1
DUNLOP FR : 12''X1 SP1540
DUNLOP UK(Pneuride) : PNP 30552 01 20 , PNP 305520120
NORGREN : M31121 , M 31121 , M/31121
Nominal(inch)x convolutions : 12''x1/12x1
Parker : 12''x19109044

Every Standard Air Spring Consists of 4 Layers

•The inner layer which actually contains the air.

•The first layer of fabric reinforced rubber applied

at a specific angle.

•The second layer of fabric reinforced rubber which

is laid to a specific angle to the first layer.

•The cover to protect the bias fabric plies.

Purchase Order

Type	Order No.
Rubber Bellows Only	-----
With dismountable plates,G1/2 air inlet	-----

Vibration isolation – dynamic characteristic values
Design height H: recommended 120mm, minimum 100mm

Pressure P	[bar]	3	4	5	6	7	8	Vol.V[I]
Force(Load)	[kN]	11.4	15.3	19.2	23.2	27.1	31.1	5.5
Spring rate	[N/mm]	290	372	451	531	612	689
Natural frequency	[Hz]	2.5	2.5	2.4	2.4	2.4	2.4

Pneumatic application – static characteristic values
Force F [kN]

Pressure P	[bar]	3	4	5	6	7	8	Vol.V[I]
Height H [mm]	120	11.2	15.1	18.9	22.9	27	31.4	5.5
	100	13.9	18.5	23.4	28.1	33.1	38.3	4.6
	80	16.5	22.1	27.6	33.4	39.1	45	3.4
	60	18.5	24.8	31	37.2	43.6	50	2.2
