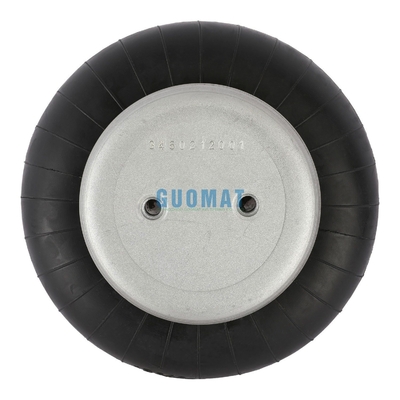

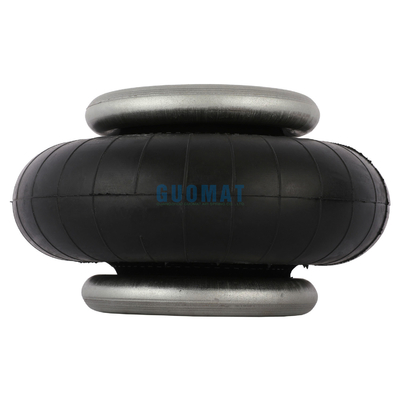

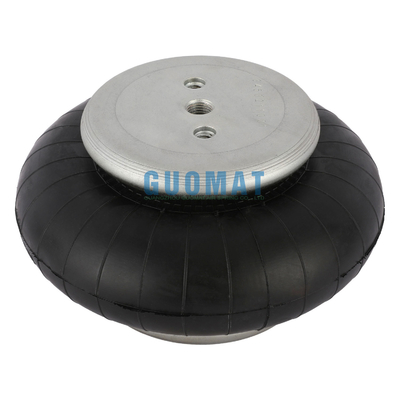

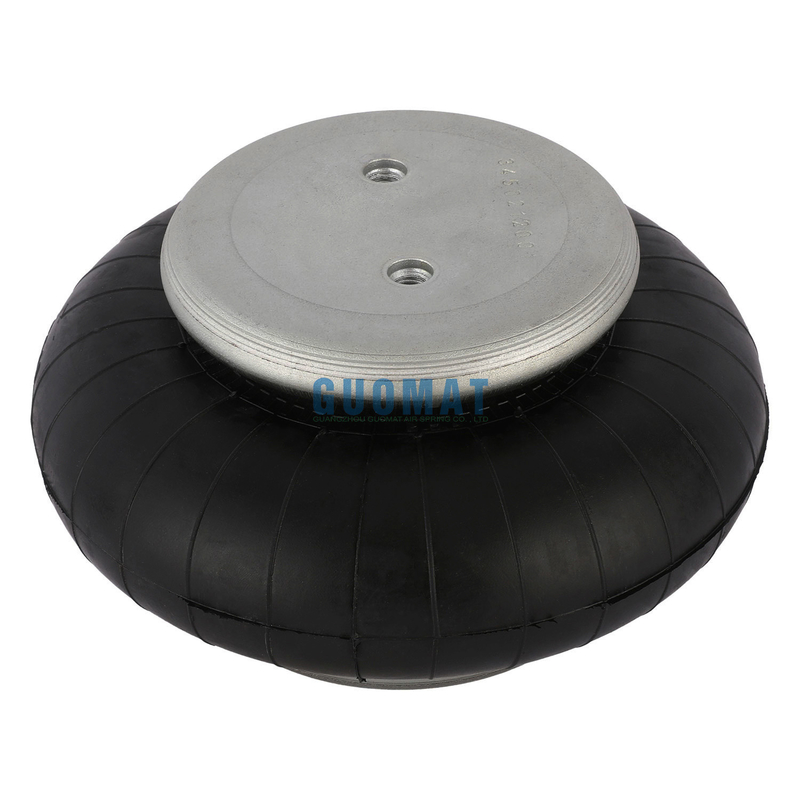

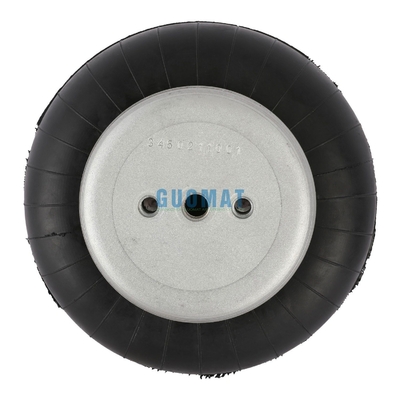

Firestone Single Convoluted Air Actuator W01-358-7451 Industrial Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B7451

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B7451	Air Spring Type:	Single Convoluted
OEM No.:	W01-358-7451	Warranty:	1 Year
Min. Height:	2.1 Inches	Max. Height:	6 Inches
Air Hole:	1/4 NPT	Operation:	Gas-Filled
Highlight:	W01-358-7451 Industrial Air Spring , Industrial Air Spring Single Convoluted , W01-358-7451 Firestone Air Spring

Firestone Single Convoluted Air Actuator W01-358-7451 Industrial Air Spring

Product Description

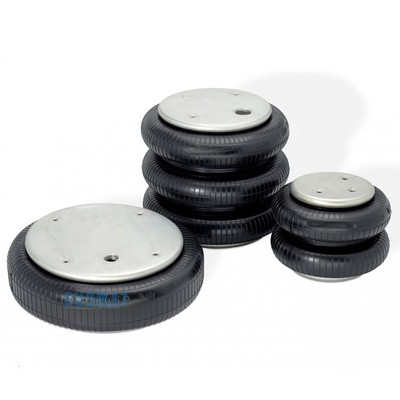

The GUOMAT Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.

Product Specifications

Top Cover Plate Diameter	4.5 in.
Screw Center Distance of Top Cover Plate	1.75 in.
Bottom Cover Plate Diameter	4.5 in.
Screw Center Distance of Bottom Cover Plate	1.75 in.
Top Cover Plate Screw(Nut) Tooth	3/8-16 Blind Nuts
Bottom Cover Plate Screw(Nut) Tooth	3/8-16 Blind Nuts
Gas Hole	1/4 NPT
Rubber Bellow Max. Diameter	8.1 in.
Minimum Height	2.1 in.
Maximum Height	6 in.

Product Technical Data Sheet

Dynamic Characteristics at 4.5 in. Design Height
Volume @ 100 PSIG = 128 in			Natural Frequency
Gage Pressure (PSIG)	Load (Ibs.)	Spring Rate (Ibs./in.)	CPM	HZ
40	650	554	173	2.88
60	1,010	795	167	2.77
80	1,390	1,046	162	2.71
100	1,790	1,294	160	2.66

OEM Number
Fire-stone 7451
Fire-stone W013587451
Fire-stone W01-358-7451
Fire-stone W01 358 7451
Fire-stone WO13587451
Fire-stone WO1-358-7451
Fire-stone WO1 358 7451

Every Standard Air Spring Consists of 4 Layers

•The inner layer which actually contains the air.

•The first layer of fabric reinforced rubber applied

at a specific angle.

•The second layer of fabric reinforced rubber which

is laid to a specific angle to the first layer.

•The cover to protect the bias fabric plies.

FAQ

1. Are you a Manufacture factory?
Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years.

2. What is your main products?
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.

3. Is the sample available?
Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS.

4. What is your warranty term?
There is a 12months warranty for our export products has run out from the date of the shipment.

5. Can i use my own logo and design on products?
YES,OEM is welcomed.

6. I can not find out the items what i want from your website, can you offer the products i need?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
